Quadra-Fire CB1200 - Floor Protection

August 1, 2018 7014-285C 11
CB1200 Pellet Insert
NOTE: Clearances may only be reduced by means
approved by the regulatory authority having
jurisdiction
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING

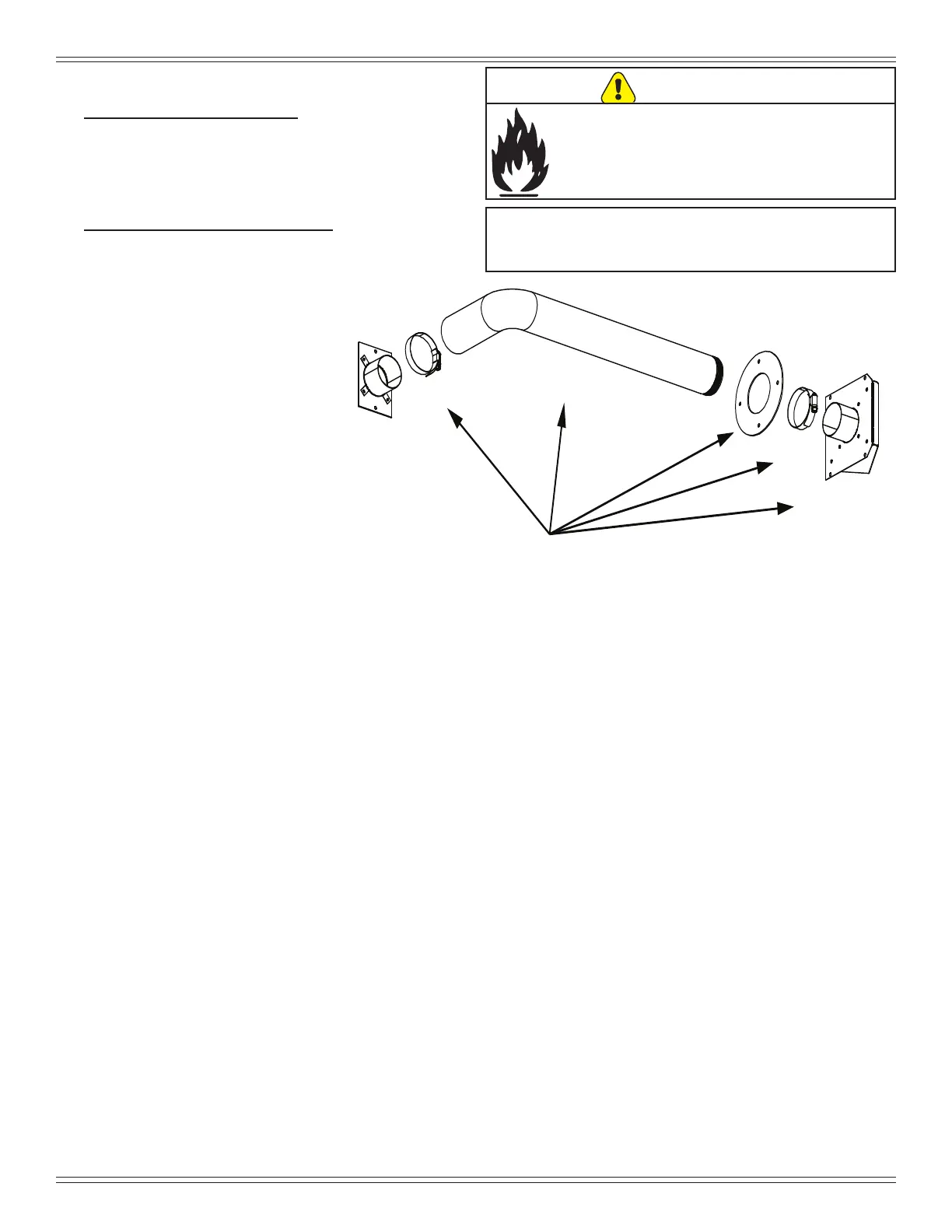

Flex Hose
Hose Clamp
Collar
Assembly
Trim Ring
Hose Clamp
Termination
Cap Assembly
NOTE: Hearth Rug may be used in
Suggested Area
Figure 11.1
Thermal Resistance: R value
The R value is a measure of a material’s resistance to heat
transfer.
R value is convenient when more than one material is used
since you can add the R values together, whereas you can
not do this for k value.
The HIGHER the R factor means less heat is being
conducted through the non-combustible material to the
combustible material beneath it.
The R value of a material must be equal or larger then the
required R value to be acceptable.
NOTE: A Quadra-Fire oor protector (Part 811-0730) is
available through your dealer to be used as a oor
protector for the section under the insert body
only. Floor protection to front and sides of insert
appliance must be supplied in addition to this part.
E. Floor Protection
1. Zero Clearance Installations*
It is necessary to install a oor protection of non-
combustible material with a R value of 3.0 (1 inch
[25mm] minimum thickness with a “k” value of 0.58)
or a 1 inch (25mm) air space between insert base and
hearth.
2. Non-Zero Clearance Installations*
A non-combustible oor protector is required with a
minimum R value of 3.0 (1 inch [25mm] minimum
thickness with a “k” value of 0.58) extending 6 inches
(153mm) in front of the insert and 8 inches (203mm) to
each side of the door opening.
* See Thermal Resistance: R value.
