Quadra-Fire Garnet - Installation Methods

GARNET DIRECT VENT ROOM HEATER
250-6443B October 7, 2003 Page 15
R
GARNET DIRECT VENT ROOM HEATER
250-6443B October 7, 2003 Page 16
R

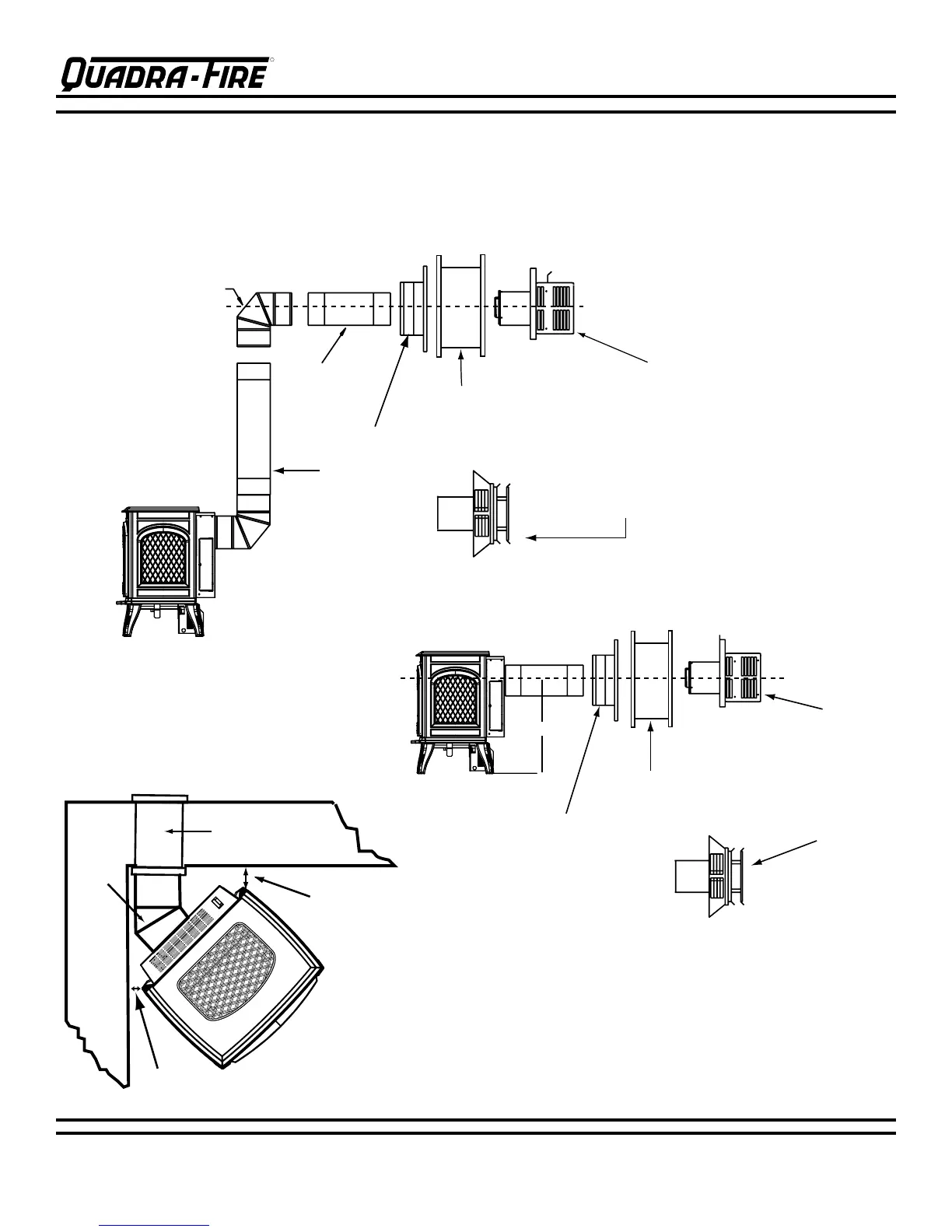

FIG. 1 - HORIZONTAL TERMINATION
Refer to pages 20-22 for installation instructions and requirements.
INSTALLATION METHODS
Type A - Up & Out Installation
Type B - Straight Out Installation
Type C - 45° Elbow in Corner
Installation
90 DEG. ELBOW
PIPE LENGT
H
PIPE LENGT
H
WALL
THIMBLE
PART #942
center line
WALL THIMBLE COVER
PART #940
HTI Vent HHW2 Part #841-0670
(recommended for optimum
performance)
OR
HORIZONT
AL TERMINATION
CAP, Simpson Dura Vent Part
#985
HTI Vent HHW2 Part #841-0670
(recommended for optimum
performance)
OR
HORIZONTAL TERMINATION
CAP, Simpson Dura Vent Part
center line
16-5/8"
WALL THIMBLE
PART
#942
WALL THIMBLE COVER
PART #940
45° Elbow
1" Clearance from stove
corner to combustible wall
.
3-1/2" Clearance from
stove corner to combustible
wall (for valve access on
right side.)
Wall Thimble Part #942
