Step 1. Turn "ON" all other gas appliances in the household, and;
Step 2. Turn the replace burner “ON”.
Step 3. Connect manometer to pressure tap on valve after opening it.
If the pressure is not sufficient, ensure: 1) the piping used is large enough, 2) the supply regulator is adequately adjusted,
and 3) that the total gas load for the residence does not exceed the amount supplied. The supply regulator (the regulator
that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed
above. Contact the local gas supplier if the regulator is at an improper pressure.
I
nput Pressure
Minimum Maximum
Natural Gas 4.5”W.C. 7”W.C.
Propane 11”W.C. 14”W.C.
LEAK TEST
1. Turn on gas to the fireplace.
2. Turn on gas at the manual shutoff valve.
3. Use a leak detector to leak test all gas joints prior to starting the appliance.
4. Familiarize yourself with the control components, see page 36.
5. Follow Lighting Instructions on page 38 to light the pilot and then the main burner.
6. Leak test all gas joints again.

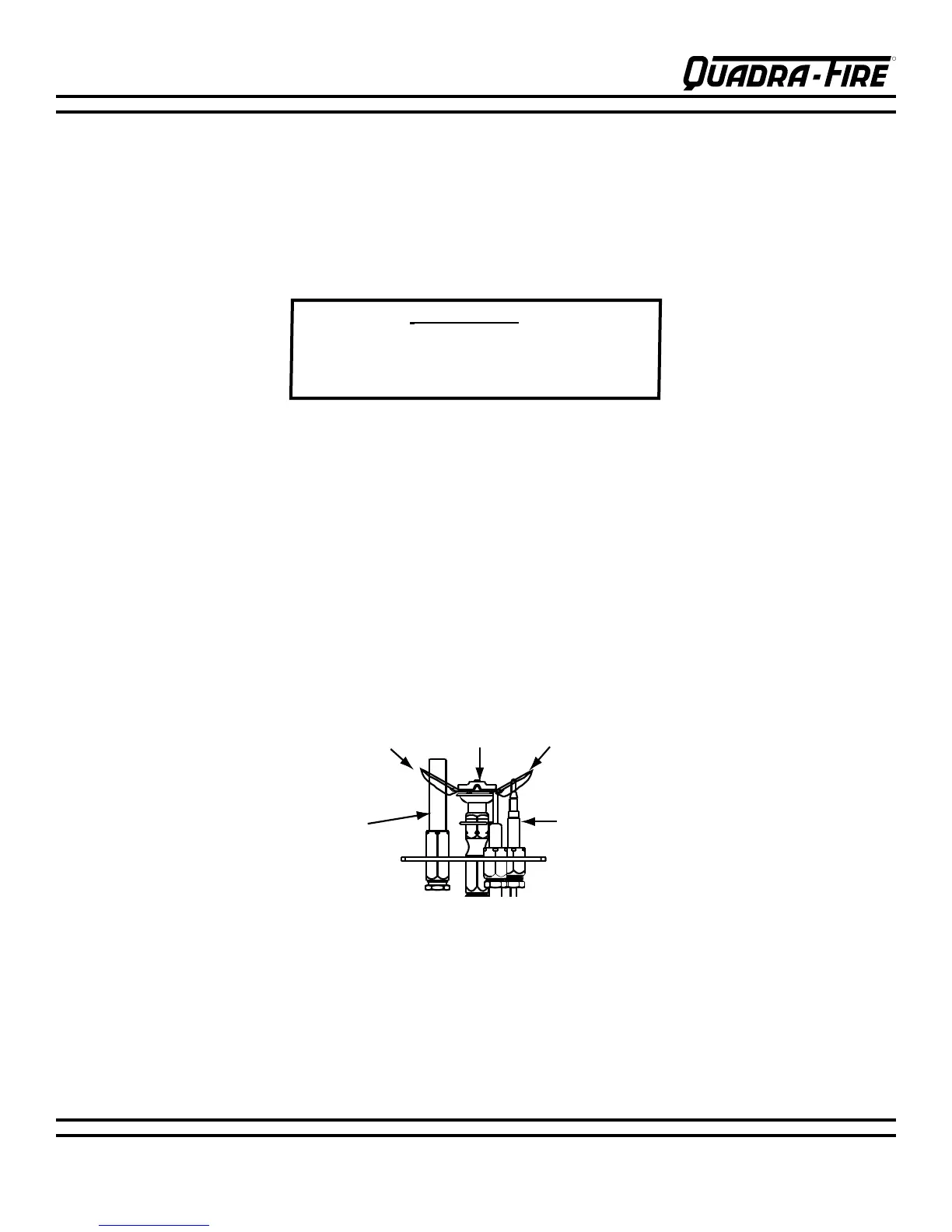

7. Check the pilot flame ensuring that it looks like the illustration below. Adjust the pilot flame if necessary.
PILOT HOOD
FLAME
FLAME
MILLIVOLT
GENERATOR
THERMOCOUPLE
PLEASE NOTE:
Fumes from curing paint and oil burning off the steel are a normal occurrence. Open windows to vent the area until fumes
dissipate.
Condensation appearing on the glass each time you start the stove cold is also normal.
Blue Flames will occur on the initial start-up. After fifteen minutes the flames will become the yellow/orange flame color.
Remote Wall Switch: If you install a remote wall switch or thermostat to operate the stove, leave the ON/OFF switch on
the stove control panel in the “OFF” position.
Do not place any combustible items on top of or directly in front of the stove, even temporarily. The optional
thermostat may start the fireplace causing a combustible item to ignite.
If the stove turns on and off frequently while using the thermostat, you may want to adjust the flame height down until
it produces just enough heat needed, or relocate the thermostat further away from the stove.
