WHEN YOUR INSTALLATION FALLS WITHIN A SHADED AREA ON THE VENT GRAPH (PAGE
23). A DAMPER MUST BE INSTALLED FOR PROPER OPERATION. (In the Commonwealth of
Massachusetts, the word damper shall be replaced with the words ue restrictor.)
Installation of the damper requires the removal of the bafe. Remove the bafe by removing the 4 screws holding the bafe in
place. (Two screws in back and one on each side). Angle the bafe slightly and remove from rebox (Fig. 1).

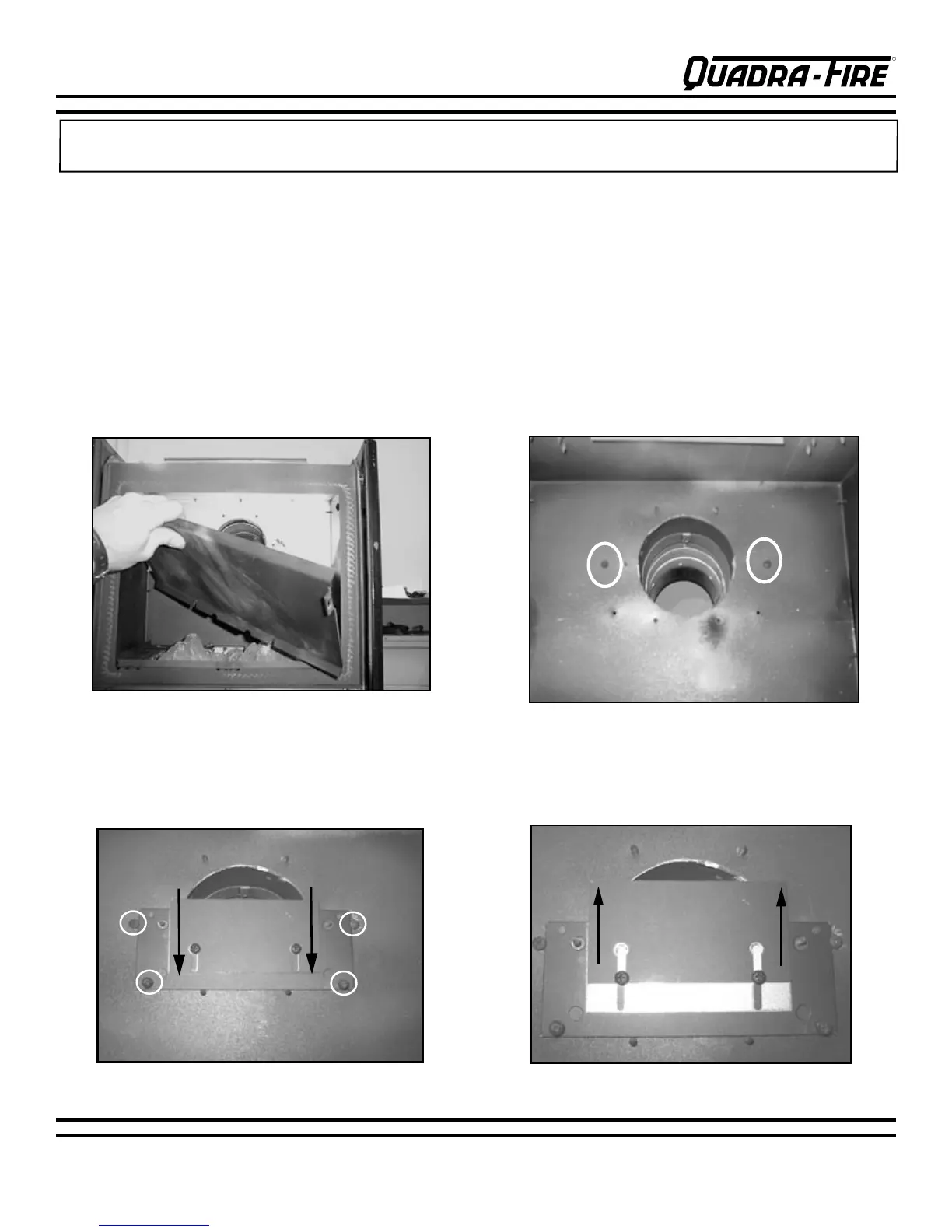

FIG. 1 Removing Bafe
FIG. 3 Damper In Fully Open Position
FIG. 4 Damper in Fully Closed Position
Figs. 3 and 4 show the damper installed in fully open and fully closed positions.
Refer to the vent graph for the best damper position for your installation.
DAMPER INSTALLATION AND ADJUSTMENT
The two screws holding the bottom of the bafe in place also hold the damper in place. After removing the bafe
remove the two screws located at the back of the rebox. See Fig. 2. (These will also be used to secure the bafe
in place.) Hold the damper in position and install the four screws to hold it in place. See Fig. 3. Leave the lower
screws loose enough to slide bafe over them. Slide the bafe back into position. Tighten the screws and re-install
the screws on the sides.
FIG. 2 Remove and re-use screws for installation
