Quadra-Fire MT. VERNON E2 Series - Clear Space; Trim Adjustment

August 3, 2018 7080-163D 13
MT. VERNON E2-C
N. Clear Space
Mantel: Avoid placing candles and other heat-sensitive
objects on mantel or hearth. Heat may damage these
objects.
Fire Risk.
Do NOT place combustible objects in front of the
appliance. High temperatures may ignite clothing,
furniture or draperies. Maintain a minimum
clearance of 3 feet (914mm) in front of appliance.
WARNING
Fire Risk.
Keep combustible materials, gasoline and other
ammable vapors and liquids clear of appliance.
WARNING
• Do NOT store ammable materials in the appliance’s
vicinity.
• DO NOT USE GASOLINE, LANTERN FUEL,
KEROSENE, CHARCOAL LIGHTER FLUID OR
SIMILAR LIQUIDS TO START OR “FRESHEN UP”
A FIRE IN THIS Appliance.
• DO NOT BURN GARBAGE OR FLAMMABLE
FLUIDS SUCH AS GASOLINE, NAPHTHA OR
ENGINE OIL.
• DO NOT USE CHEMICALS OR FLUIDS TO START
THE FIRE.
• Keep all such liquids well away from the appliance
while it is in use.
• Combustible materials may ignite.
NOTICE: Clearances may only be reduced by means
approved by the regulatory authority having
jurisdiction.

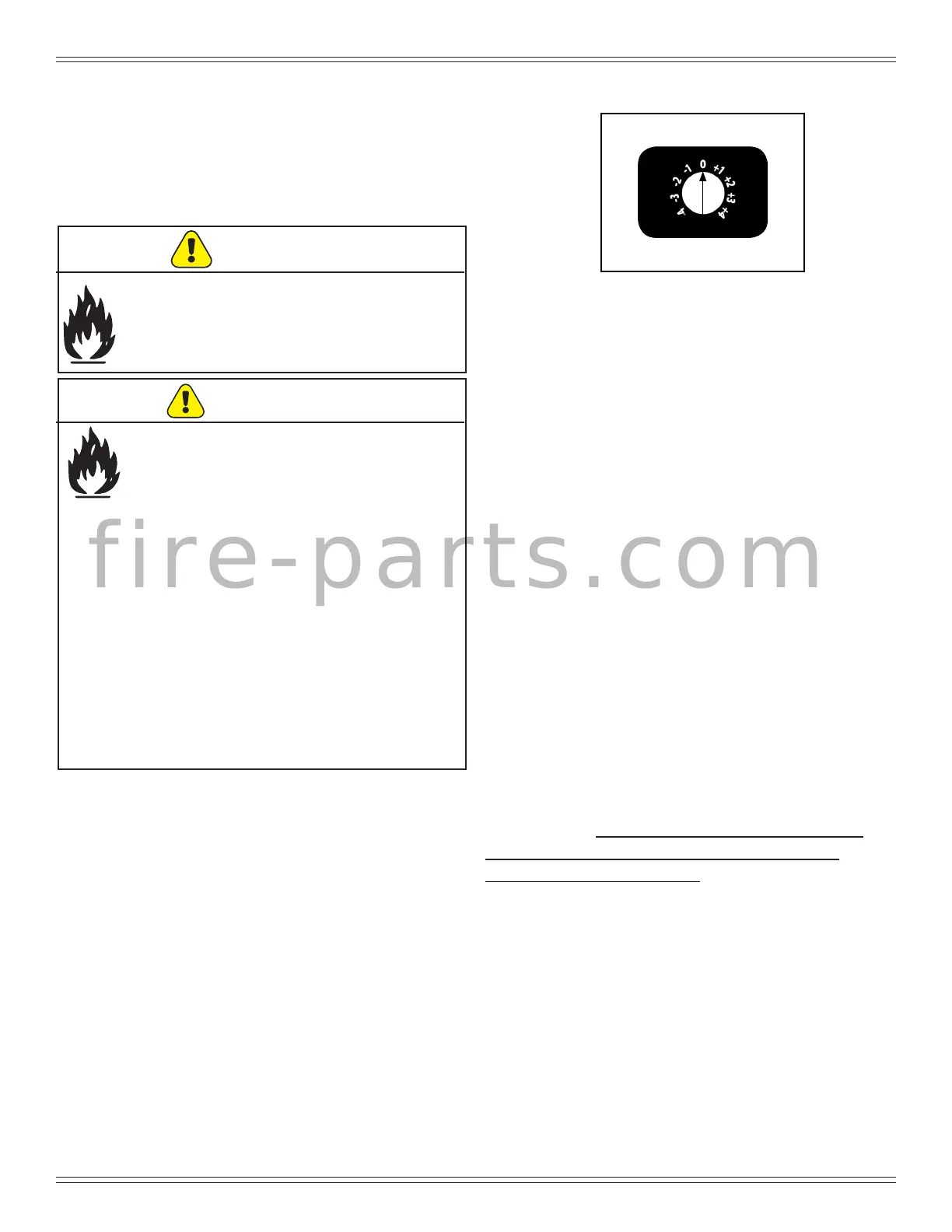

Figure 13.1
Trim adjustment is the small dial located below the
main dial control. The function of the trim adjustment
is to allow for variations in elevation, venting and
installation congurations, and fuel types (hard
wood/soft wood).
Rotating this dial will adjust the air/fuel ratio to the
appliance:
• Clockwise adjustments increase the ame
height.
• Counter-clockwise adjustments will
decrease the ame height.
• When changing trim settings only adjust 1
level at a time, allowing 15 minutes for re to
stabilize before making another adjustment.
• The factory default trim adjustments are set
to zero (0) for most fuels and recommended
venting congurations.
A properly adjusted re will have a bright, active
ame pattern that extends out of the re pot
approximately 6 to 9 inches when burning on high.
A properly adjusted re will burn cleaner and have
higher efciencies. Please copy and paste the follow
web address: http://www.quadrare.com/Owner-
Resources/Use-and-Care-Videos/Mt-Vernon-
E2-Pellet-Stove-Insert.aspx and watch the video
regarding Normal Operation.
O. Trim Adjustment
