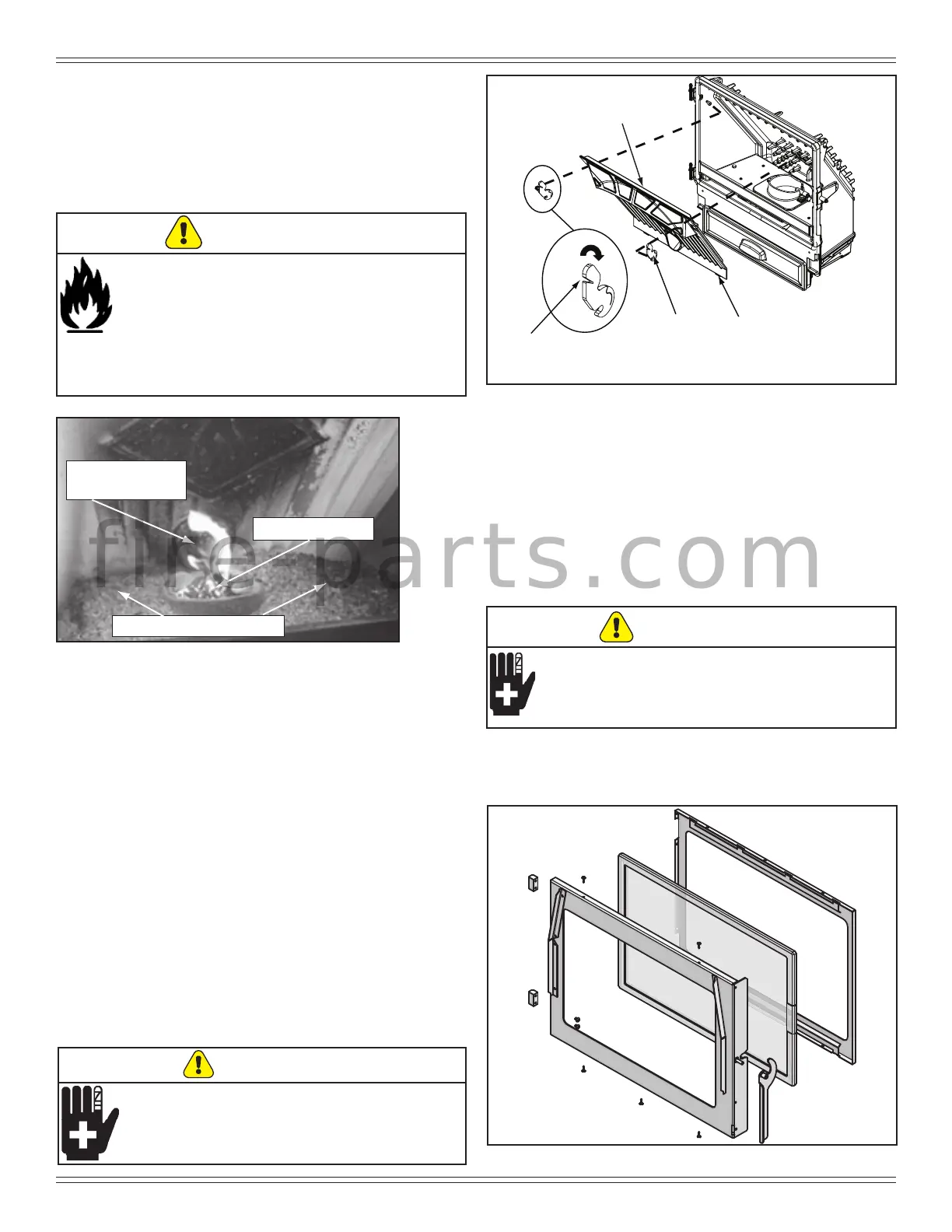

Quadra-Fire MT. VERNON E2 Series - High Ash Fuel Content Maintenance; Baffle Removal; Glass Replacement

26 7080-163D August 3, 2018
MT. VERNON E2-C
Baffle
Latches
Insert flat head screw driver into “V”
section and push down and the bottom
of the latch will fall forward off of post
Locating ears - 1 on
each side. Fit behind
bottom edge.
Figure 26.2
Figure 26.3
Pellets Back-Up
in Feed Tube
Firepot Overfills
Ash Build-Up in Firebox
Figure 26.1
F. Bafe Removal
1. The appliance must be in complete shutdown,
completely cool and the exhaust blower off.
2. Open door.
3. The bafe is located at the top inside of rebox.
4. Remove bafe by placing a at head screw driver into
the slot of the latches located in the upper corners and
rotate down. The bottom of the latch will fall forward off
of the post. Lift the bafe up and then out toward you
(Figure 26.2).
5. To replace the bafe, place the 2 locating ears behind
the bottom edge and tilt the bafe up and into place.
6. The bafe must be centered in the rebox before
latching it in place. If it is not centered the latch will slip
between the bafe and side of the rebox instead of
latching properly.
7. The bottom of the latches will t over the posts. Using
a screwdriver, rotate the top of the latch up to lock latch
into place.
G. Glass Replacement
1. Swing open the face and remove the door from the
appliance by lifting the door off of the hinge pins and
lay on a at surface face down.
2. Using a Phillips head screw driver, remove 4 screws, 2
on the top and 2 on the bottom. Remove metal bracket
and then remove the glass (Figure 26.3).
3. Replace with new glass with gasket.
4. Re-attach metal bracket with 4 screws.
5. Re-install door over hinge pins and close face.
E. High Ash Fuel Content Maintenance
• Frequency: Daily
• By: Homeowner
If the ash build-up exceeds the half way point in the re pot
or if clinkers are adhering to the sides of the re pot, the re
pot oor is not being cycled enough.
WARNING
Risk of Fire and Smoke!
• High ash fuels or lack of maintenance can
cause re pot to overll. Follow proper
shutdown procedure if ash buildup exceeds
half way point in re pot.
• Failure to do so could result in smoking,
sooting and possible hopper res.
WARNING
Cast iron is a very heavy material.
The bafe is made of cast iron and therefore is
heavy and awkward at times to maneuver. Clear
and prepare your work area before you begin.
• Glass is 5mm thick high temperature heat-
resistant ceramic glass.
• DO NOT REPLACE with any other material.
• Alternate material may shatter and cause injury.
WARNING
