Quadra-Fire MT VERNON - Service Parts Replacement; A. Glass Replacement - Door Assembly; B. Baffle Removal

32 7036-187M August 13, 2018
MT. VERNON AE INSERT

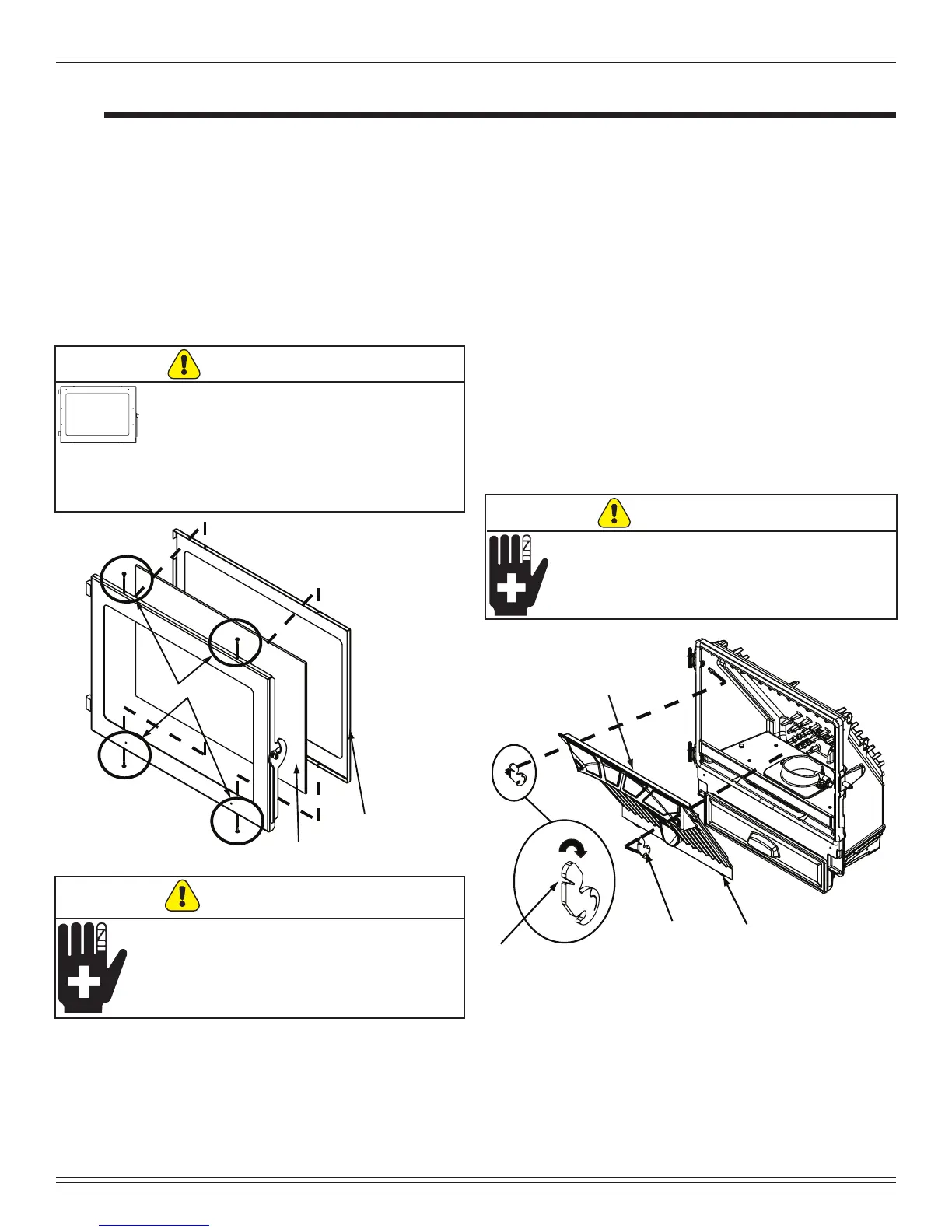

A. Glass Replacement - Door Assembly
(Replace with 5mm ceramic glass only)
1. Swing open the face and remove the door from the
appliance by lifting the door off of the hinge pins and
lay on a at surface face down.
2. Using a Phillips head screw driver, remove 4 screws, 2
on the top and 2 on the bottom. Remove metal bracket
and then remove the glass (Figure 32.1).
3. Replace with new glass with gasket.
4. Re-attach metal bracket with 4 screws.
5. Re-install door over hinge pins and close face.
6 Service Parts Replacement
Remove 4 screws
Glass with Gasket
Metal Bracket
Figure 32.1
B. Bafe Removal
1. The appliance must be in complete shutdown,
completely cool and the exhaust blower off.
2. Open door.
3. The bafe is located at the top inside of rebox.
4. Remove bafe by placing a at head screw driver into
the slot of the latches located in the upper corners and
push down. The bottom of the latch will fall forward off
of the post. Lift the bafe up and then out toward you
(Figure 32.2).
5. To replace the bafe, place the 2 locating ears behind
the bottom edge and tilt the bafe up and into place.
6. The bafe must be centered in the rebox before latching
it in place. If it is not centered the latch is trapped
between the bafe and side of the rebox instead of
latching properly.
7. The bottom of the latches will t over the posts. Push the
top of the latch forward to lock latch into place.
Baffle
Latches
Insert flat head screw driver into “V”
section and push down and the bottom
of the latch will fall forward off of post
Locating ears - 1 on
each side. Fit behind
bottom edge.
Figure 32.2
• Glass is 5mm thick high temperature heat-
resistant ceramic glass.
• DO NOT REPLACE with any other material.
• Alternate material may shatter and cause
injury.
WARNING
Handle glass doors with care.
• Inspect the gasket to ensure it is
undamaged.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass
door removed, cracked, broken or
scratched.
WARNING
WARNING
Cast iron is a very heavy material.
The bafe is made of cast iron and therefore is
heavy and awkward at times to maneuver. Clear
and prepare your work area before you begin.
