Quadra-Fire MT VERNON - Quick Start Guide

August 13, 2018 7036-187M 7
MT. VERNON AE INSERT
C. Quick Start Guide
NOTICE: Any button pressed will turn on the back-light. Wall control will automatically
revert back to the starting screen if there is no activity for 15 seconds; except for the
“CONFIRM FUEL CHANGE” screen.
READY
71
Set at: 68
12:30 PM
MENU
Auto/Manual/Off
User Settings
Fuel Type
MENU
Set Comfort Level
Sunflower Seeds
Wheat
FUEL SELECTION
Softwood Pellet
Hardwood Pellet
CONFIRM FUEL CHANGE
Please empty hopper
of old fuel type and
ensure firebox is clean.
Please refer to
section 8 in manual.
DONE
User Settings
Fuel Type
MENU
Set Comfort Level
Auto/Manual/Off
AUTO/MANUAL SETTINGS
Manual
Off
Automatic
Manual

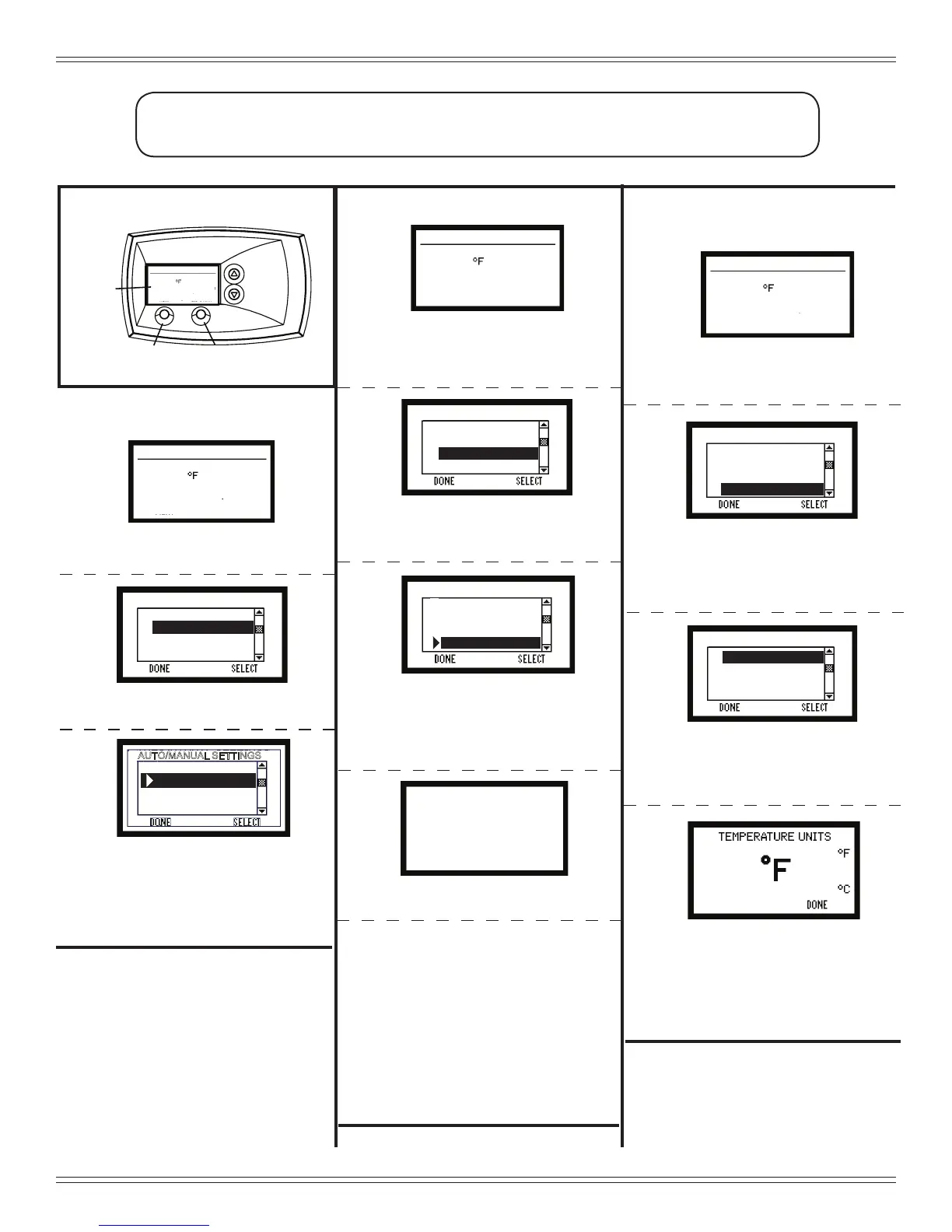

Choosing Fuel Type
Turning on appliance
Function Buttons
Buttons
Up
Down
READY
73
Set at: 73
12:30 PM
HEAT OUTPUT
MENU
Room
Temp
Wall Control for Reference
READY
71
Set at: 68
12:30 PM
MENU
READY
71
Set at: 68
12:30 PM
MENU
Choosing TEMP Appliance: °f or
°c
USER SETTINGS
Flame Height Adjust
Temp Differential
Temp Units F/C
Auto/Manual/Off
Fuel Type
Set Comfort Level
User Settings
MENU
1. At the starting screen, press
“MENU”.
2. Highlight “AUTO/MANUAL/OFF”.
Press “SELECT”.
3. Highlight “MANUAL”. Press
“SELECT”.
4. Press “DONE” twice or wait 15
seconds for starting screen to re-
appear.
1. At the starting screen, press
“MENU” button once or twice until
“MENU” screen appears.
2. Highlight “FUEL TYPE” using the
“UP/DOWN” buttons to the right side
of the display. Press “SELECT”.
3. Scroll down and highlight
“HARDWOOD PELLET” or your fuel
type.
4. Now press “SELECT” to choose
new fuel.
5. Press “DONE” to conrm fuel
change.
6. Press “DONE” twice or wait 15
seconds for starting screen to
reappear.
7. Fill the hopper with fuel. If the
hopper was completely empty
or has run out of fuel, put
approximately 1/2 cup of pellets into
the re pot for a quick restart.
8. Be sure the hopper lid and glass
door are both closed.
1. At the starting screen, press
“MENU” button once or twice until
“MENU” screen appears.
2. Highlight “USER SETTINGS”
using the “UP/DOWN” buttons to
the right side of the display. Press
“SELECT”.
3. Highlight “TEMP UNITS F/C”
using the “UP/DOWN” buttons to
the right side of the display. Press
“SELECT”.
4. Press the “UP” or “DOWN”
button to set desired temperature
appliance and press “SELECT”.
5. Press “DONE” twice again, or wait
15 seconds for starting screen to
re-appear.
