Quadra-Fire Santa Fe Pellet Insert - 5 Venting Systems; Full Reline With Outside Air - Horizontal

7019-230JOctober 23, 2018 17
SANTA FE PELLET INSERT
CAUTION
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
Optional Outside
Air through Rear
Wall (Horizontal)
NOTE; Use metal plate around
exhaust vent pipe and seal all
edges with non-flammable insu-
lation such as fiberglass, mineral
wool or ceramic.
Do not use high temperature
caulking materials to seal any
edge to prevent furture service-
ability.

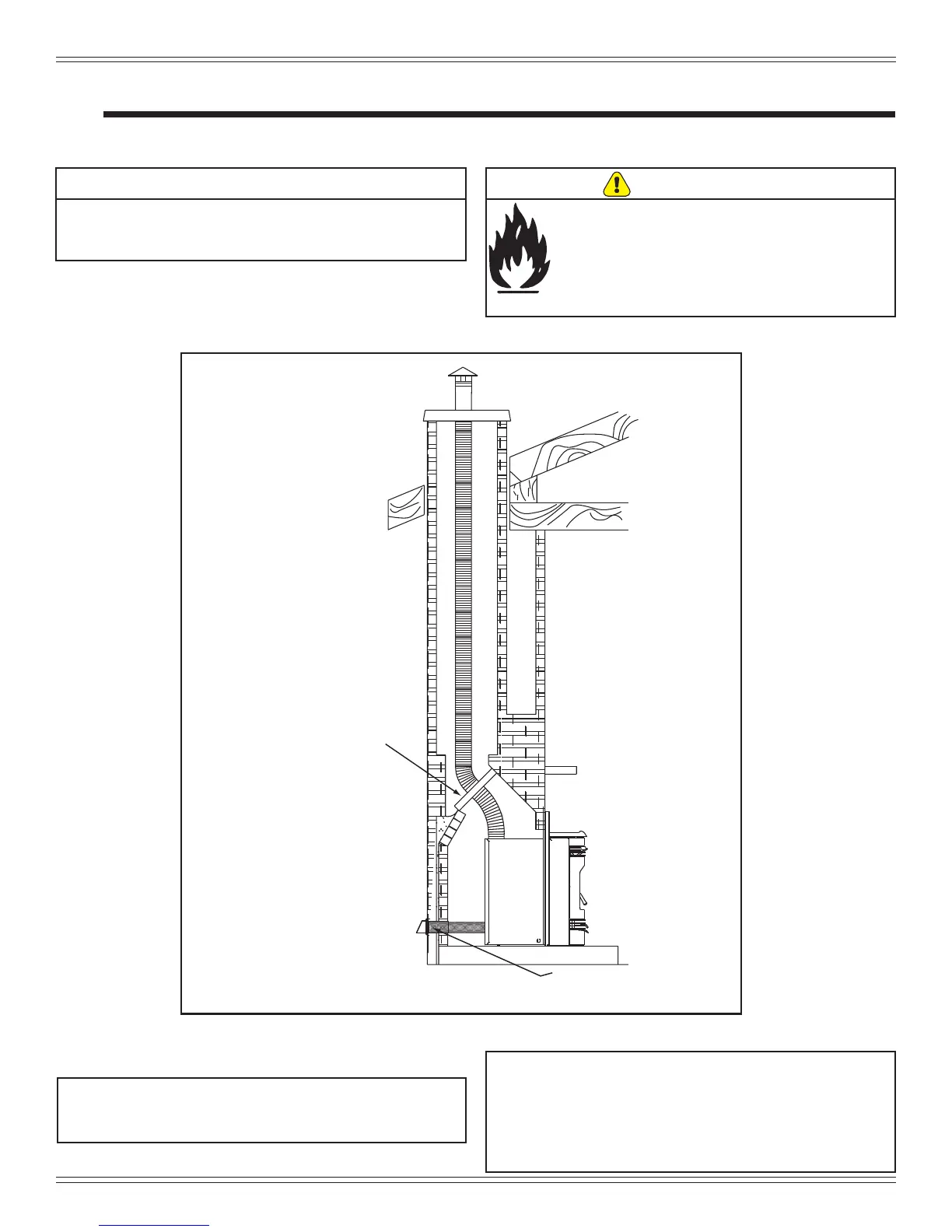

Figure 17.1
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be a minimum 6
inch (152mm) UL103 HT.
WARNING
5 Venting Systems
A. Full Reline With Outside Air - Horizontal
NOTE: In Canada, where passage through a wall or
partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365.
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
