Quadra-Fire Santa Fe Pellet Insert - Optional Log Set Placement

7019-230J October 23, 201824
SANTA FE PELLET INSERT

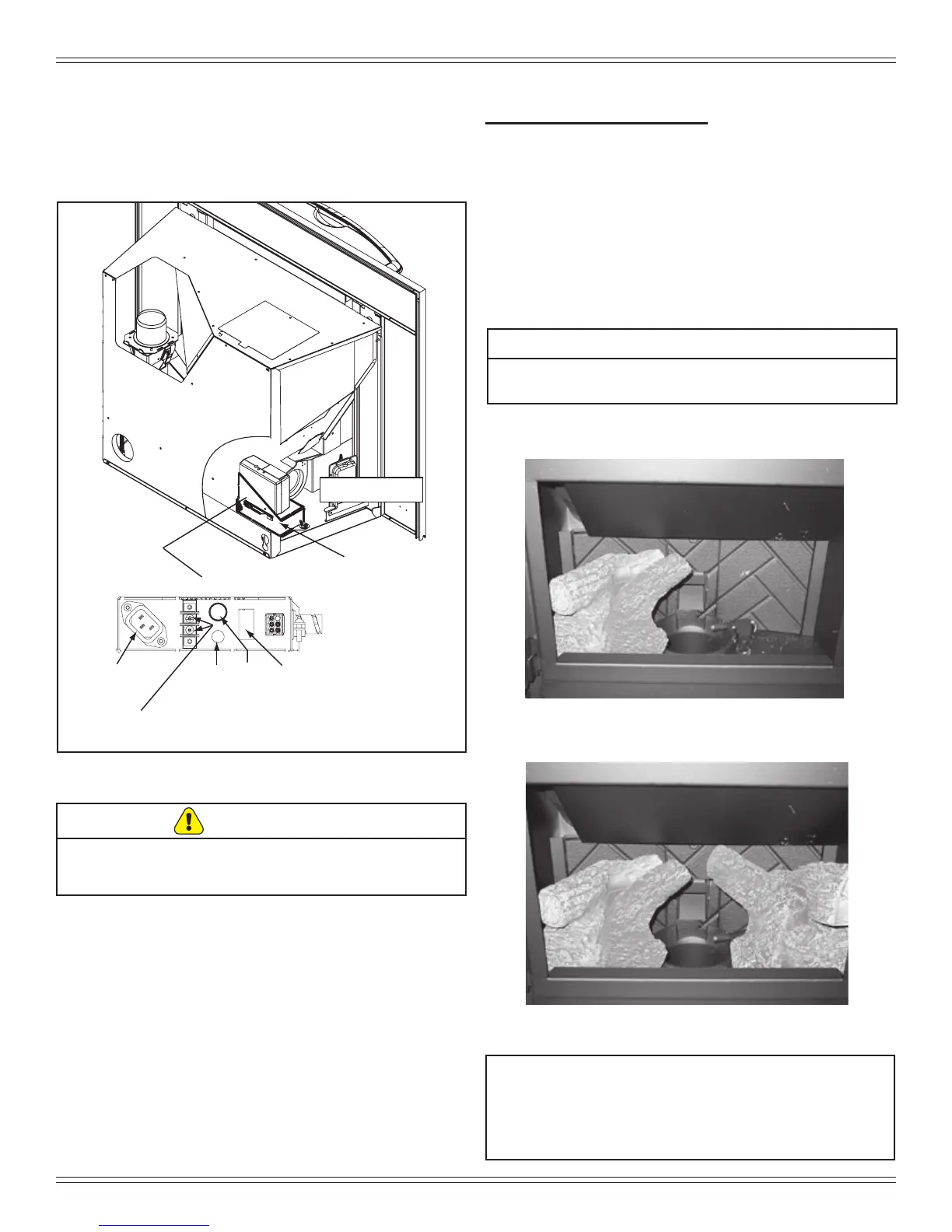

Figure 24.1
Junction Box
Cut Away
LEFT SIDE
Junction Box, Front
Power
Cord
Recepticle
Terminal Block
Center 2 Screws
for Thermostat wires or remote
110 Outlet for
Remote
Control Only
(unfused)
Fuse
Red Call
Light
Figure 24.2
Figure 24.3
I. Optional Log Set Placement
Two Piece Log Set Installation
1. Open door to expose the rebox.
2. Install the left log rst and then the right log (Figure
24.2
3. Lean the logs against the cast iron brick in the back of
the rebox.
4. Push the logs to the far left and far right against the
sides of the rebox (Figure 24.3).
5. To clean the logs, use a vacuum cleaner and a soft
brush attachment or a paint brush.
NOTE: Due to the abrasive nature of a pellet appliance
re, the logs are not covered under warranty. Any
placement variation other than shown here can
cause excessive heat and shall void the appliance
warranty.
Interrupteur
dépression
Interrupteur
dépression
Interrupteur
de trémie
Disque
d’arrêt no2
CondensateurCondensateurDisque
d’arrêt no2
Interrupteur
dépression
Interrupteur
dépression
Interrupteur
dépression
Interrupteur
dépression
Interrupteur
de trémie
Disque
d’arrêt no2
CondensateurCondensateurDisque
d’arrêt no2
CONNECT THERMOSTAT WIRES TO APPLIANCE:
There is a 4 screw terminal block located on the back lower
left corner of the stove directly above the power cord inlet.
The center 2 screws are for the thermostat wires (Figure
24.1).
The 110 outlet on the junction box is for a remote control
ONLY. Do not use outlet for any other purpose. It can
damage the appliance and it will void your warranty.
CAUTION
CAUTION
Logs are FRAGILE. Use extreme care when handling or
cleaning logs.
