SANTA FE PELLET INSERT
6 Appliance Set-Up
A. Leveling System
The leveling bolts are located at the rear of the appliance.
To access the bolts, remove the front access panels.
Reach in and turn the bolt to the desired height to level the
appliance.
B. Outside Air Kit Instructions
Parts Included in Kit: 1 piece of 2 inch x 3 ft. ex hose,
2 hose clamps, 1 collar assembly, 1 termination cap
assembly, 1 trim ring, fasteners.
Tools Needed: Phillips head screwdriver; wire cutters; hole
saw or jig saw.
1. Measure distance from oor to air vent opening in
appliance and mark location on wall.
2. Use saw to cut opening in wall. Cut a 2-1/2 to 3 inch
(64-76mm) opening on inside wall and a 3 to 3-1/2 inch
(76-89mm) opening on outside of house.
3. Use hose clamp to secure ex pipe to collar assembly.
4. Slide trim ring over ex pipe and run pipe through wall.
5. Attach hose to outside termination cap with second
hose clamp.
6. Secure termination cap to outside surface.
7. Secure trim ring to interior wall.

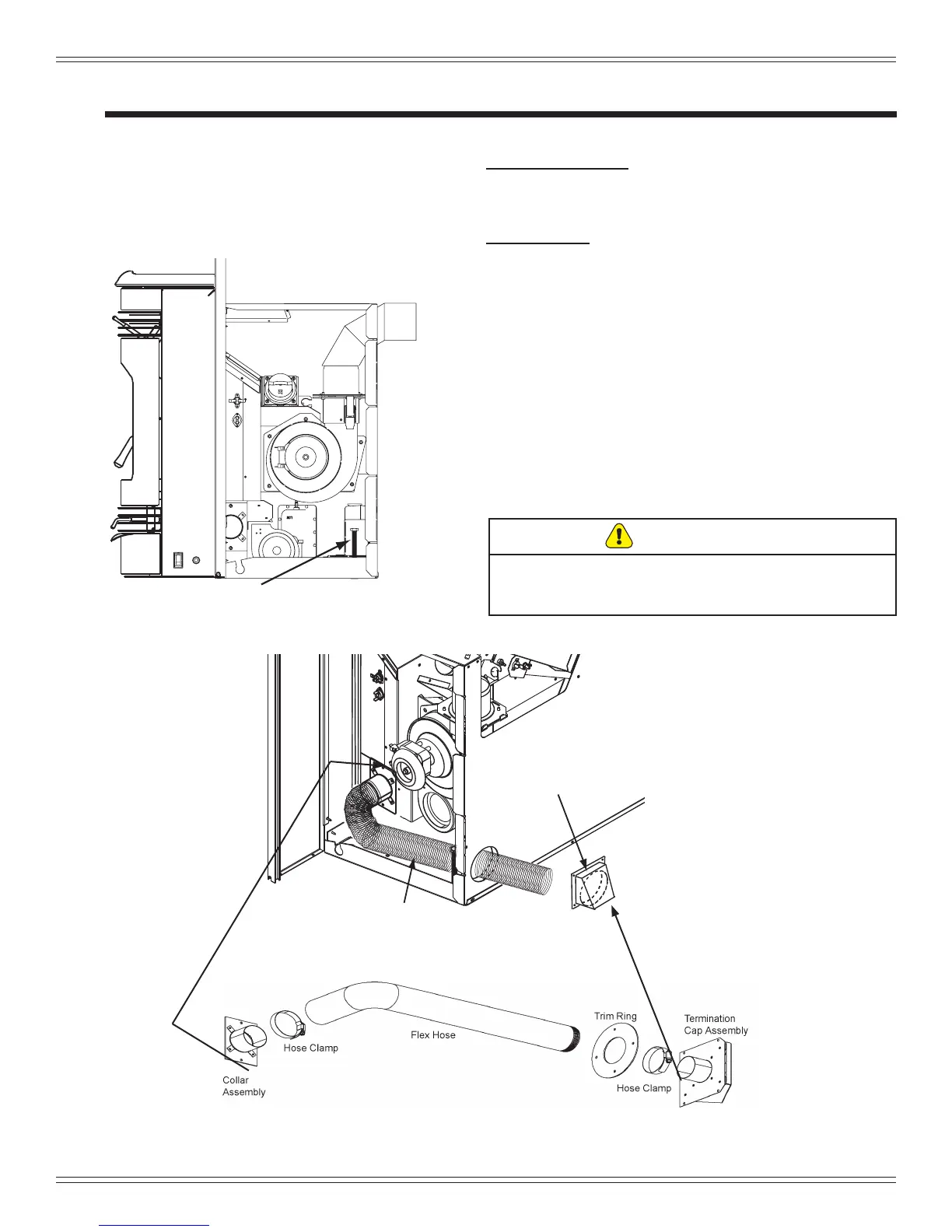

Figure 19.1
Leveling Bolt on Each Side
Figure 19.2
Attach Termination
Cap to Exterior Wall
2 inch diameter
CAUTION
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
