Quadra-Fire Santa Fe Pellet Insert - Fireplace Opening & Floor Protection

7019-230J October 23, 201810
SANTA FE PELLET INSERT
C
D
A
B

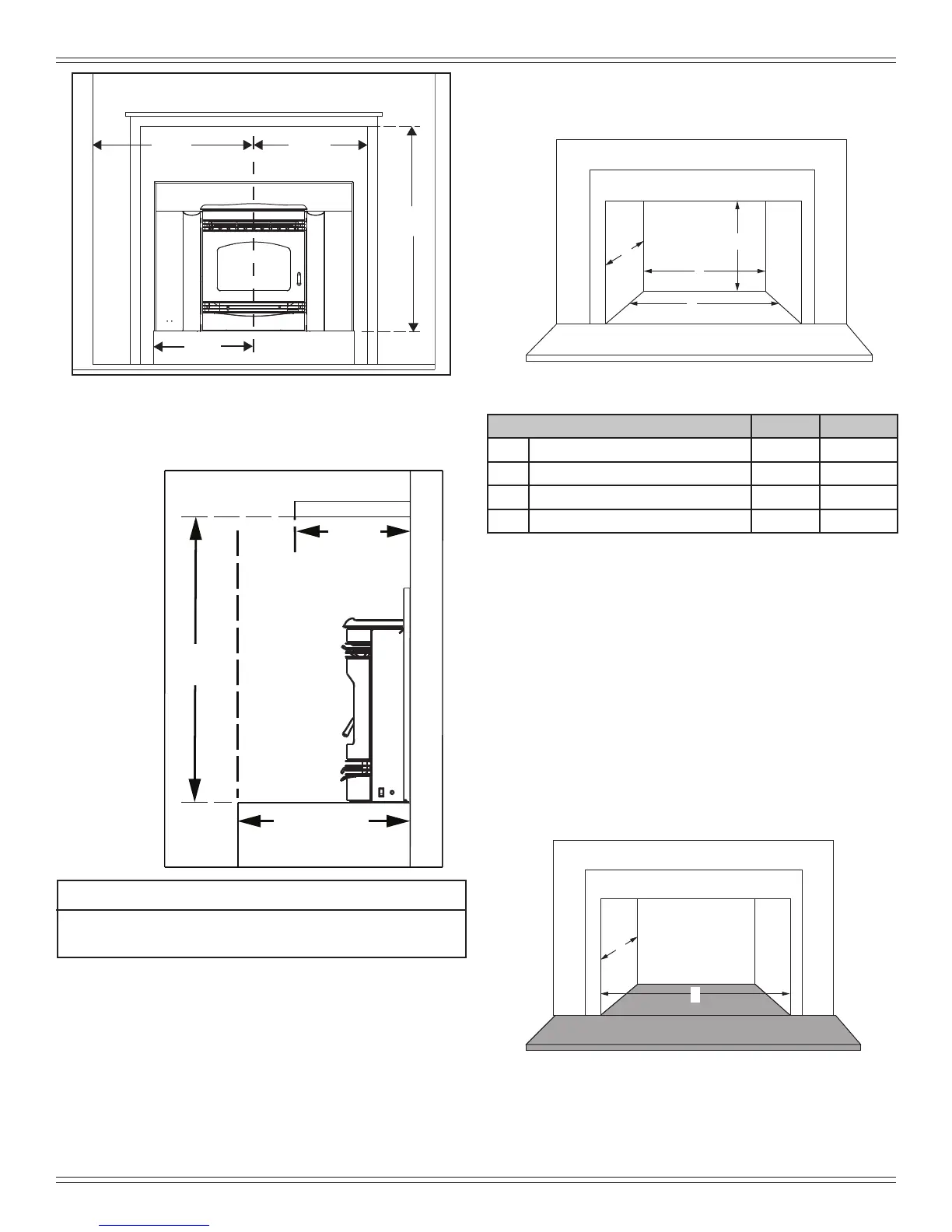

C. Minimum Opening for Masonry & Zero
Clearance Fireplaces
Figure 10.1
Figure 10.2
SIDE TRIM
HEARTH
EXTENSION
29-3/4 in
(1010mm)
SIDE WALL
TOP TRIM
26-3/4 in
(679mm)
20-3/4 in
(527mm)
16 in
(406mm)
Figure 10.3
FIREPLACE FRONT SURFACE
MANTEL
USA 12-1/2 in
(CANADA 317mm)
37-3/8 in
(975mm)
12 in
max *
NOTE: Minimum opening dimensions include a 1/4” (6mm)
clearance around unit.
NOTE: If trim measurement is over 3/4 in (19mm) in depth
use mantle or side clearances to combustibles.
NOTE
It is necessary to permanently seal any opening between
the masonry of the replace and the facing masonry.
Location Inches Millimeters
A Height 23-1/4 591
B Front Width 29-1/8 740
C Rear Width 23-7/8 606
D Depth 13 330
D. Hearth Extension
E. Floor Protection
Use a non-combustible ember oor protector, extending
beneath the appliance and to the front, and to the sides as
indicated in sub-section E. Floor Protection.
Figure 10.4
D
B
