SANTA FE PELLET INSERT
B. Clearance To Combustibles, UL and ULC
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.

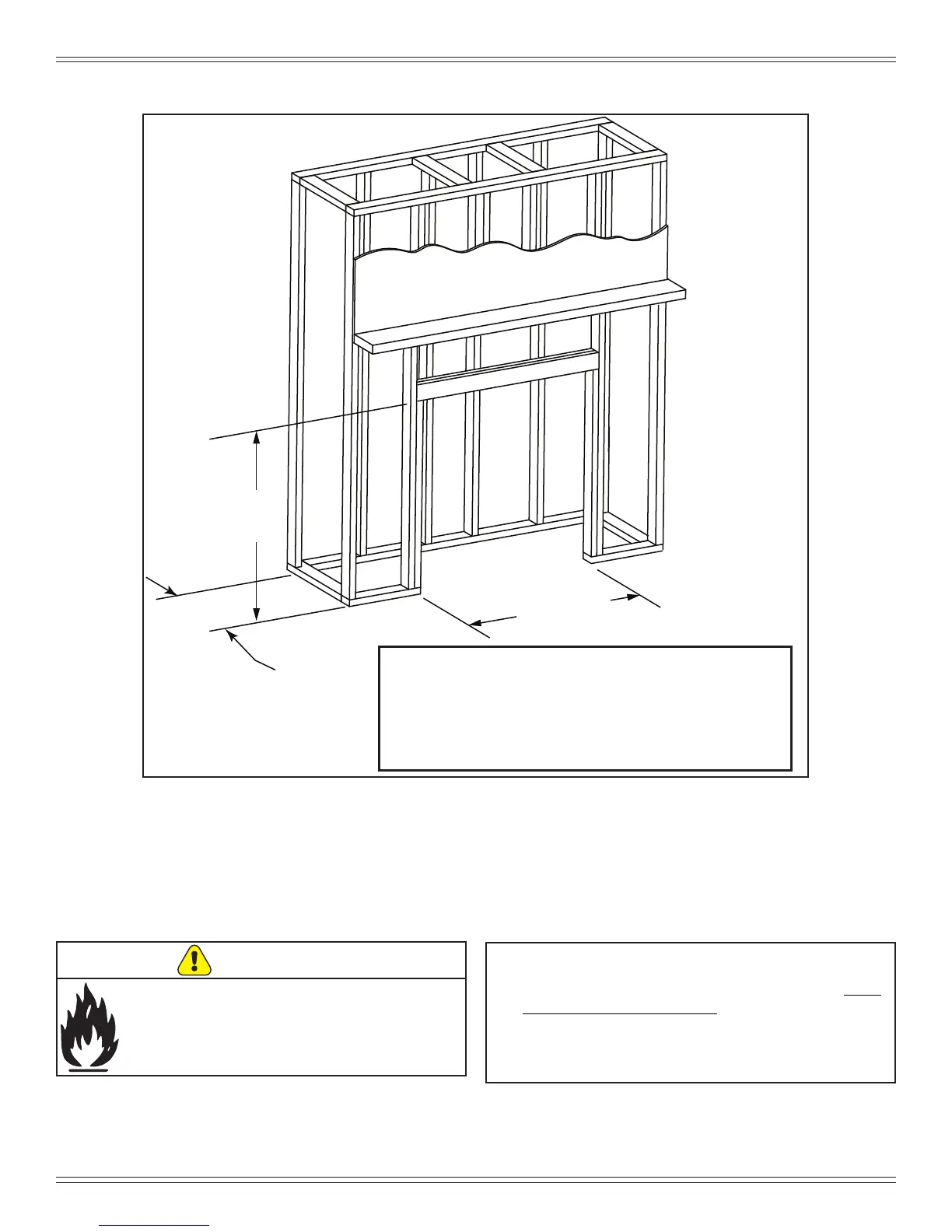

Figure 9.1
Be sure to follow vent manufacturers clearance to
combustibles.
*If interior of chase will be drywalled, add the thickness
to this measurement.
**From finished floor protection. The size of your floor
protector choice must be added to this dimension.
25 in.**
(635mm)
25 in.**
(635mm)
32-7/8 in.
(835mm)
15-1/4 in.*
(387mm)
Fire Risk.
Comply with all minimum clearances to
combustibles as specied.
Failure to comply may cause house re.
WARNING
