Table of fuses
Refer to fi gure 2 AMPERAGE CONNECTED LOAD
A 30A Battery charger circuit
B 15A General
C 10A Lights
D 15A EFI
E 30A Spare
F 15A Spare
G 10A Spare

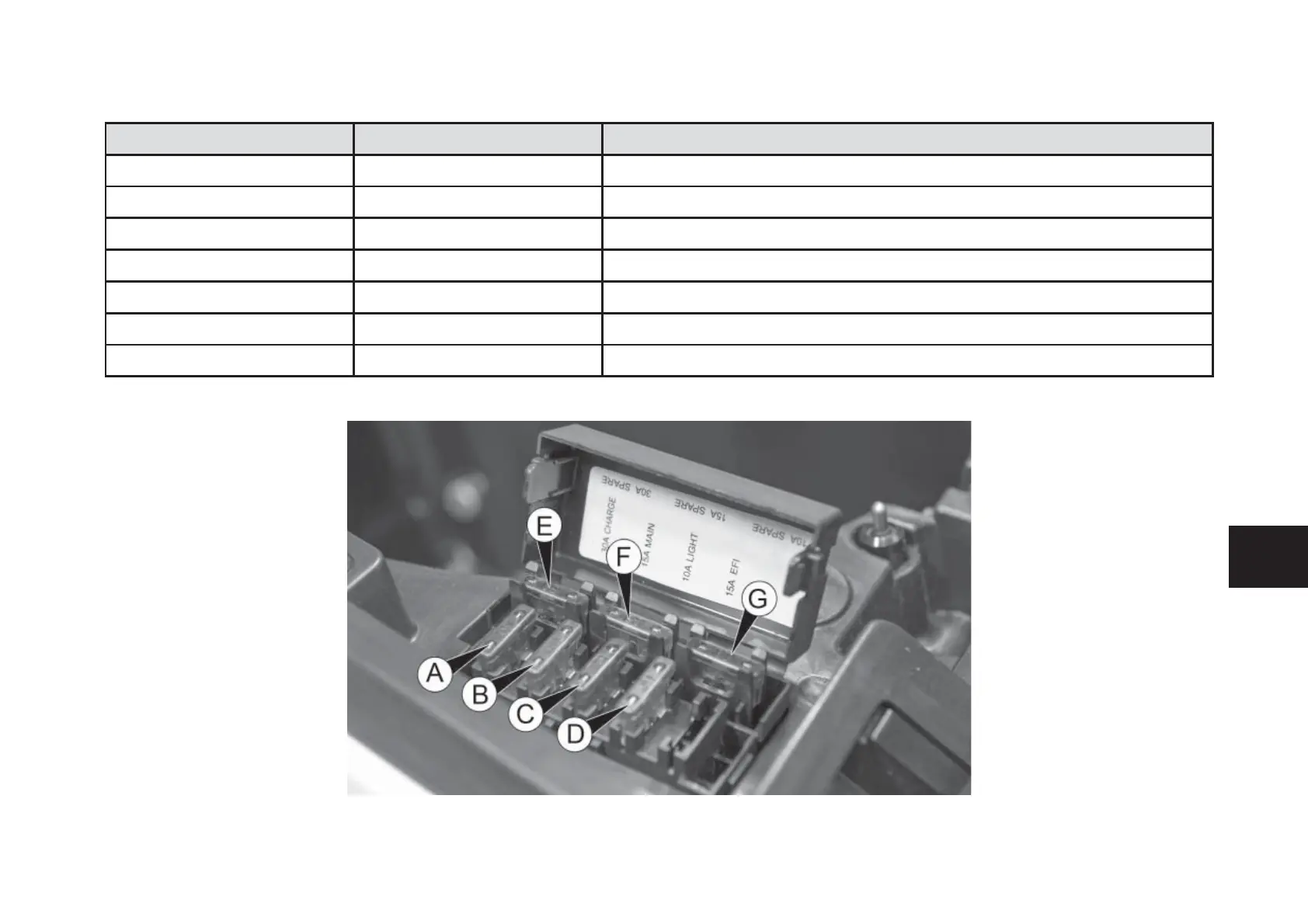

fi g. 2
