42
EMERGENCY

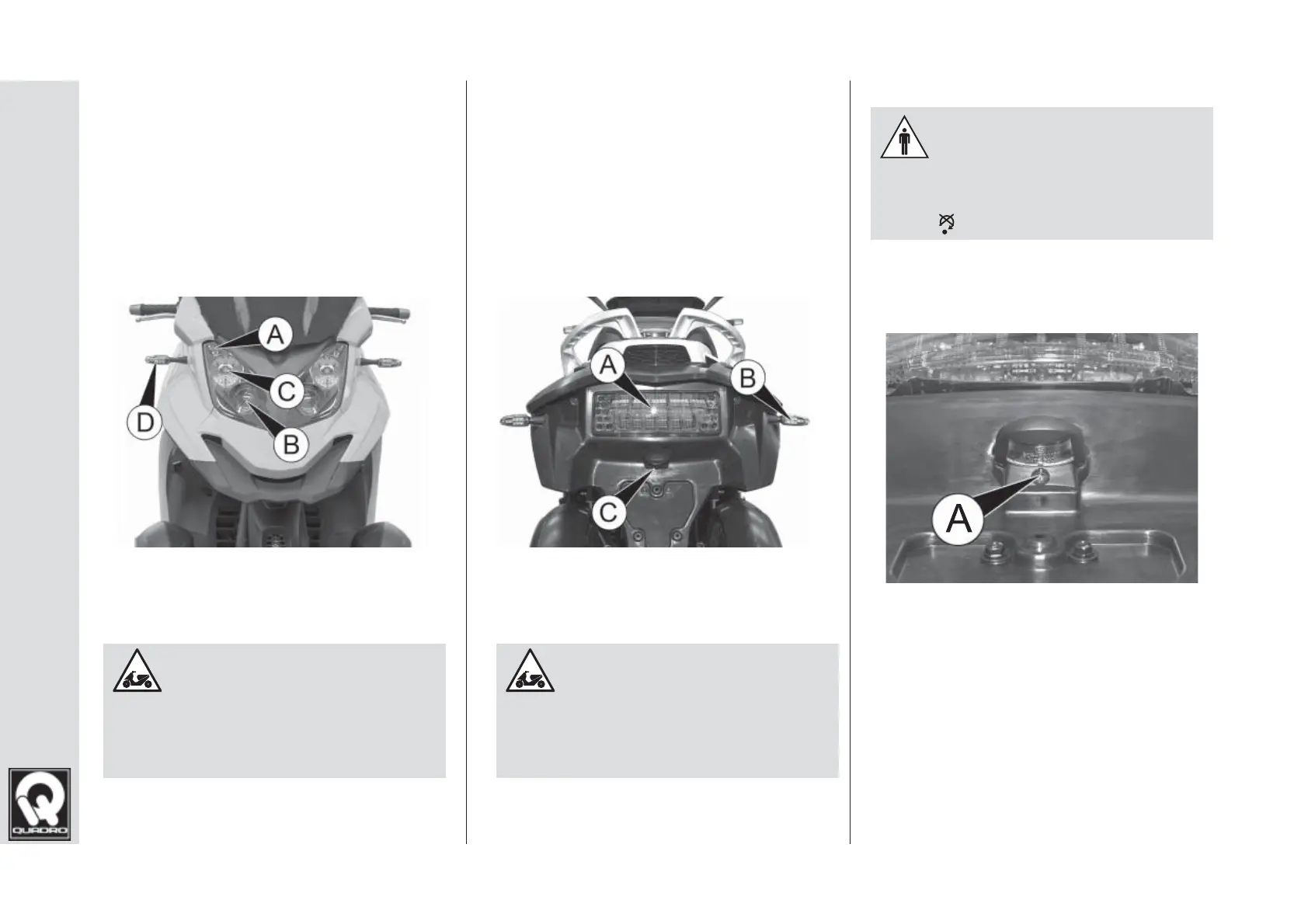

FRONT LIGHT CLUSTER
The bulbs in the front light cluster fi g. 3
are laid out as follows:
A - Parking lights.
B - Dipped headlights.
C - Full-beam headlights.
D - Turn signals.
fi g. 3
See an authorised Quadro
dealer or service centre if a bulb
in the front light cluster needs re-
placement.
Replacing Bulbs
REAR LIGHT CLUSTER
The bulbs in the rear light cluster fi g. 4
are laid out as follows:
A - Parking / brake lights.
B - Turn signals.
C - Numberplate light
fi g. 4
Replacing Bulbs
NUMBERPLATE LIGHT
Before replacing the num-
berplate light, ensure that the ig-
nition key has been removed or is
in the
position
Proceed as follows to replace the
numberplate light:
• Unscrew screw A fi g. 5
fi g. 5
• Remove the complete bulb-bulb
holder assembly A fi g. 6 from the
plastic cover
See an authorised Quadro
dealer or service centre if a bulb
in the front light cluster needs re-
placement.
