REPLACING TYRES

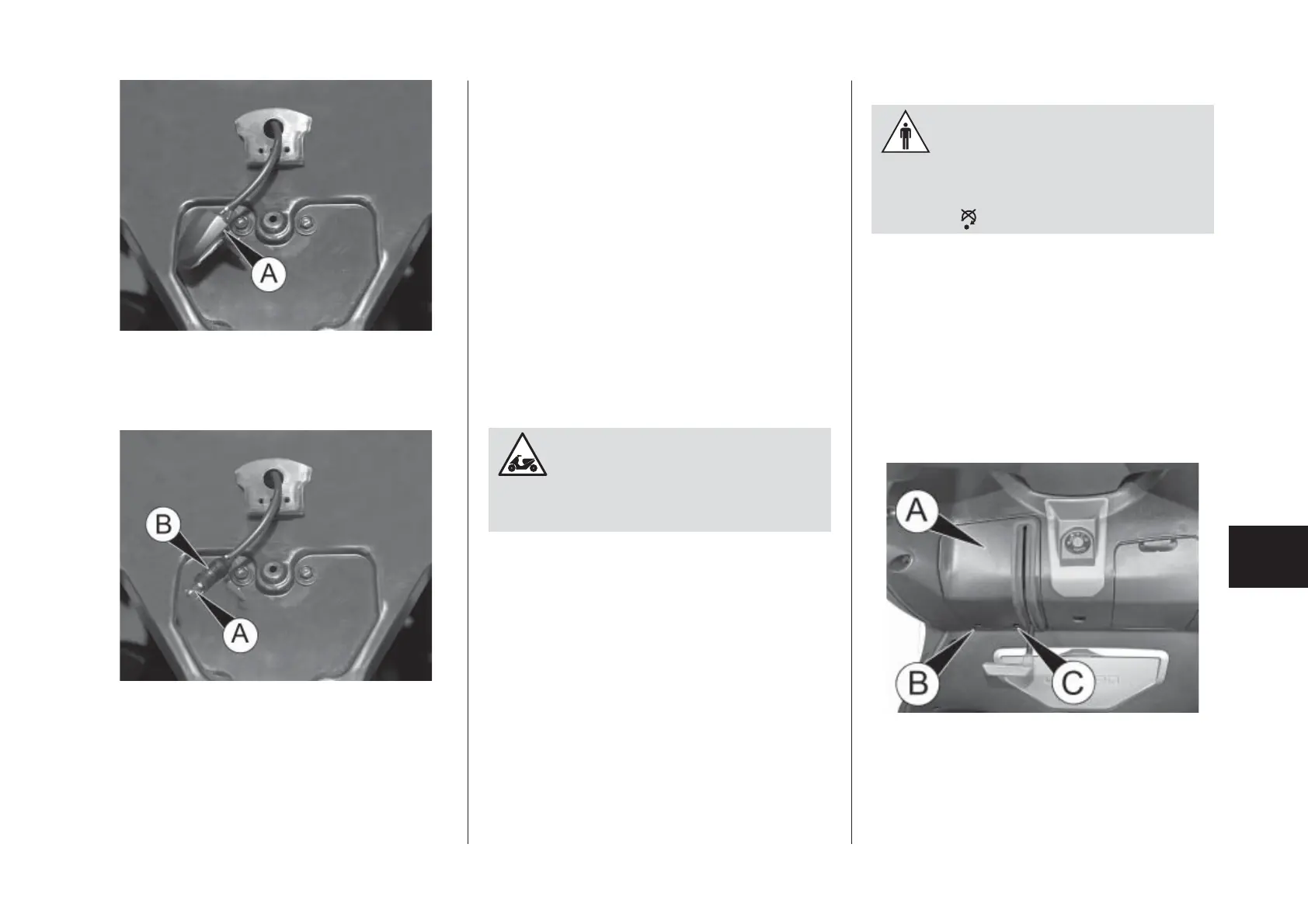

• Disconnect the bulb A fi g. 7 from
the bulb holder B.
• Replace the blown bulb and con-
nect the new bulb to the bulb holder
B fi g. 7, ensuring that it is correctly
inserted
• Install the bulb-bulb holder assem-
bly A fi g. 6 inside the plastic cover
• Reposition the plastic cover, screw-
ing down the retaining screw A fi g.
5.
fi g. 6
fi g. 7
Quadro4 is fi tted with Tubeless tyres.
See an authorised Quadro
dealer or service centre for tyre
replacement.
BATTERY
Before replacing or recharg-
ing the battery, ensure that the
ignition key has been removed or
is in the
position
Replacement
The battery is located on the left inside
the leg shield.
Proceed as follows to replace the
battery:
• Remove cover A fi g. 8 by unscrew-
ing screws B and C
fi g. 8
