Qualitrol SERVERON TM1 User Manual

810-1902-03 Rev D TM1 Installation Guide
9
4) Remove the yellow protective shipping cap and
absorbent pad from the end of the TM1. It is normal
to see a small amount of oil after removing the cap.
Install the Oil Inlet assembly into the threaded hole
on the back of the TM1 (Fig 3) and tighten, but do not
over-tighten.

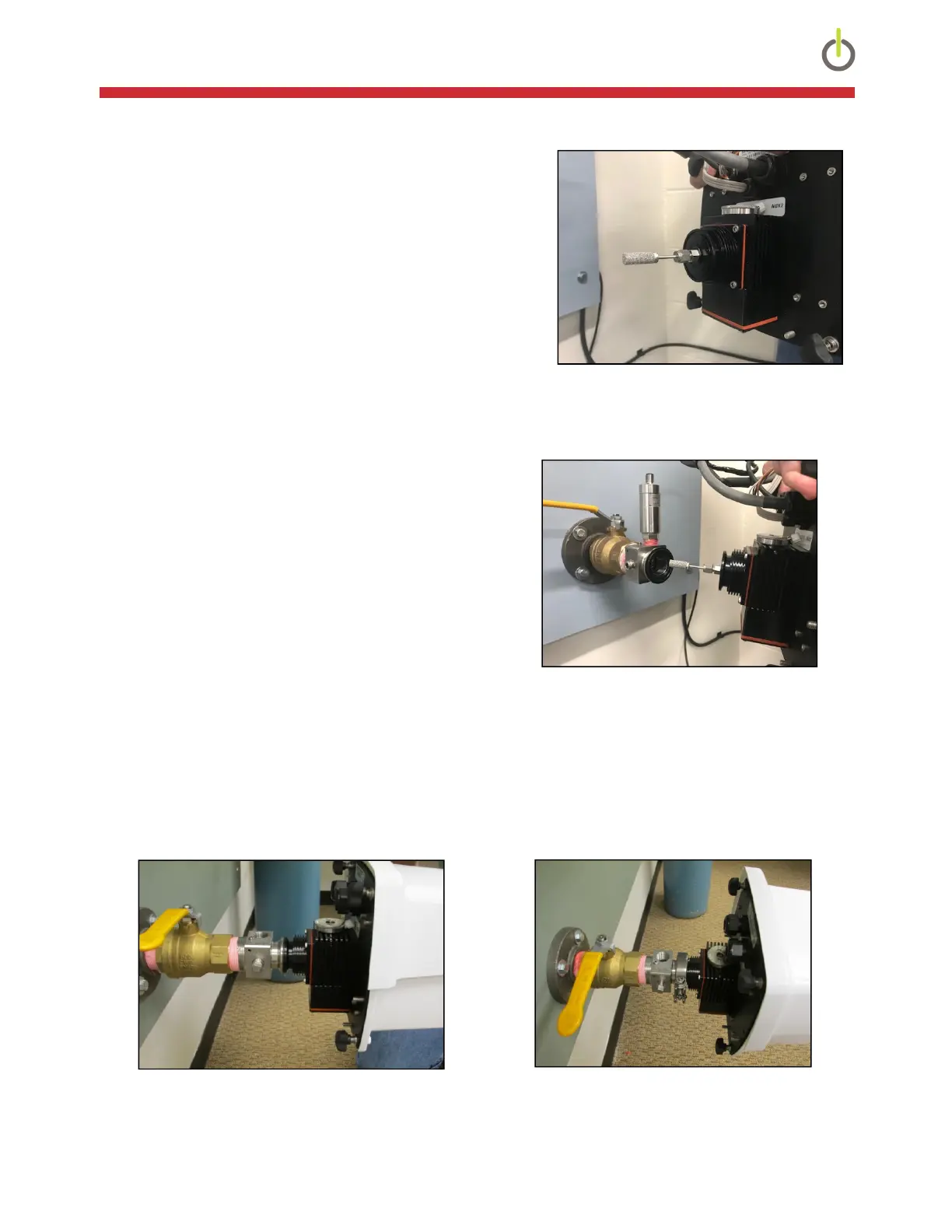

Figure 3: Oil Inlet Assembly
5) Install the black gasket onto the uni-tee, ensuring
that it is seated in the groove, as shown (Fig 4).
Figure 4: Mounting the Monitor
6) While properly supporting the TM1, position it on the open end of the uni-tee, carefully inserting the
tube of the oil inlet assembly into the tee. Make sure the gasket is properly seated between the tee
and the TM1. Install the clamp, capturing the uni-tee and the TM1 flanges as shown (Figs 5 & 6).
Make sure the flat washer is directly under the nut as shown and tighten the nut on the clamp,
ensuring that the TM1 is oriented vertically.
Figure 5: Clamping Flange Figure 6: Quick Clamp Installed
