FORM QTC2-eg1 (515)
QUANTECH
29

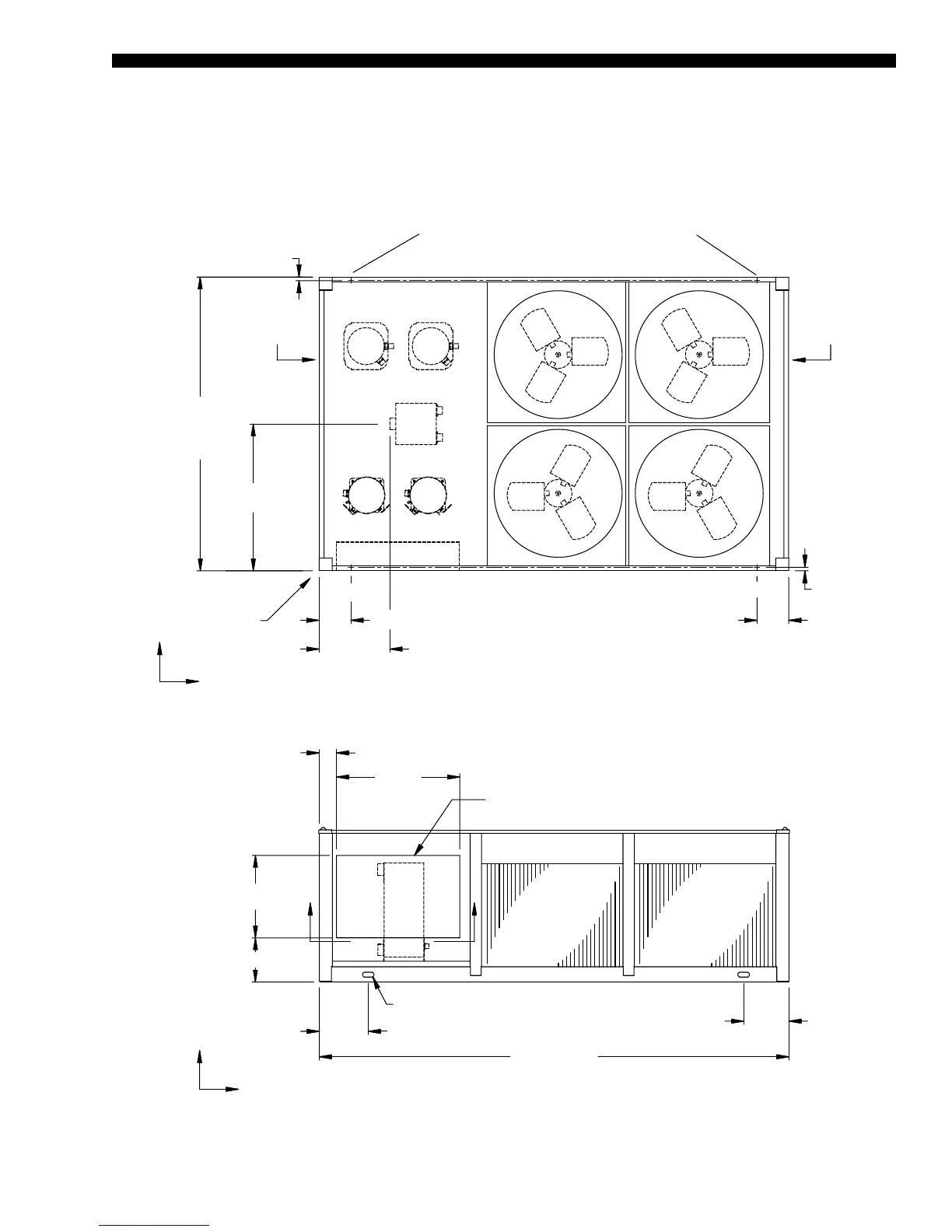

Unit Dimensions - English (Cont'd)
QTC2035T
90 9/16"
45 1/8"
Y
C
G
X
1 1/16"
ORIGIN
END CAP
WIDTH
16 3/4"
TOP VIEW
9 13/16"
1 1/16"
9 13/16"
9/16" DIA MOUNTING HOLES(typ)
144 13/16"
15 1/16"
13 15/16"
TWO LIFTING HOLES
BOTH SIDES
FRONT VIEW
C
G
X
Z
38"
5 5/16"
25 3/8"
13 5/8"
B
B
COIL
END
COOLER
END
CONTROL PANEL
LD18678
