Unit Dimensions - English (Cont'd)
QTC2040T
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airowpatternsandpossiblediminishedperformance.Theunitcontrolswilloptimizeoperationwithoutnuisancehigh-pressuresafetycut-outs;
however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no
higherthanonspringisolators.Recommendedminimumclearances:Sidetowall–6';reartowall–6';controlpaneltoendwall–4'0'';
top–noobstructionsallowed;distancebetweenadjacentunits–10'.Nomorethanoneadjacentwallmaybehigherthantheunit.

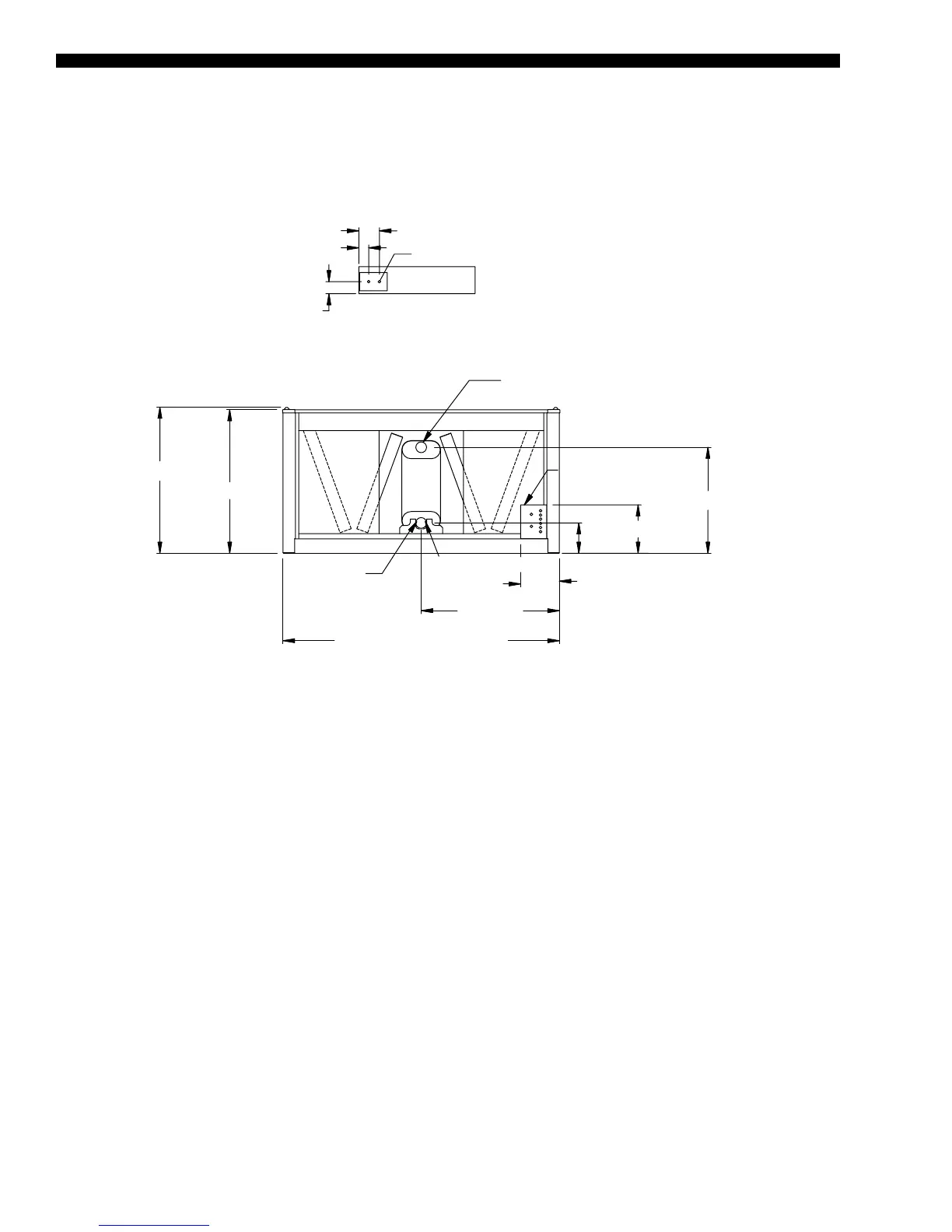

VIEW B-B
3 15/16"
3 1/4"
6 3/4"
BOTTOM OF PANEL
7/8" TYP.
47 3/4"
46 15/16"
45 1/8"
12 5/8"
3" ANSI/AWWA
C-606 (typ)
90 1/4" BASE WIDTH
LEFT END
LIQUID OUT
25 1/4"
15 3/4"
9 7/8"
ELECTRICAL ACCESS
PANEL
LIQUID IN
LD18679
