Unit Dimensions - Metric (Cont'd)
QTC2020T
NOTE: All dimensions are in mm unless specied otherwise.
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable
operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airflow
patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cutouts; however,
the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 2m; rear to wall –
2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one
adjacent wall may be higher than the unit. 1" nominal deflection isolators (not shown) will increase overall unit height by 152mm.

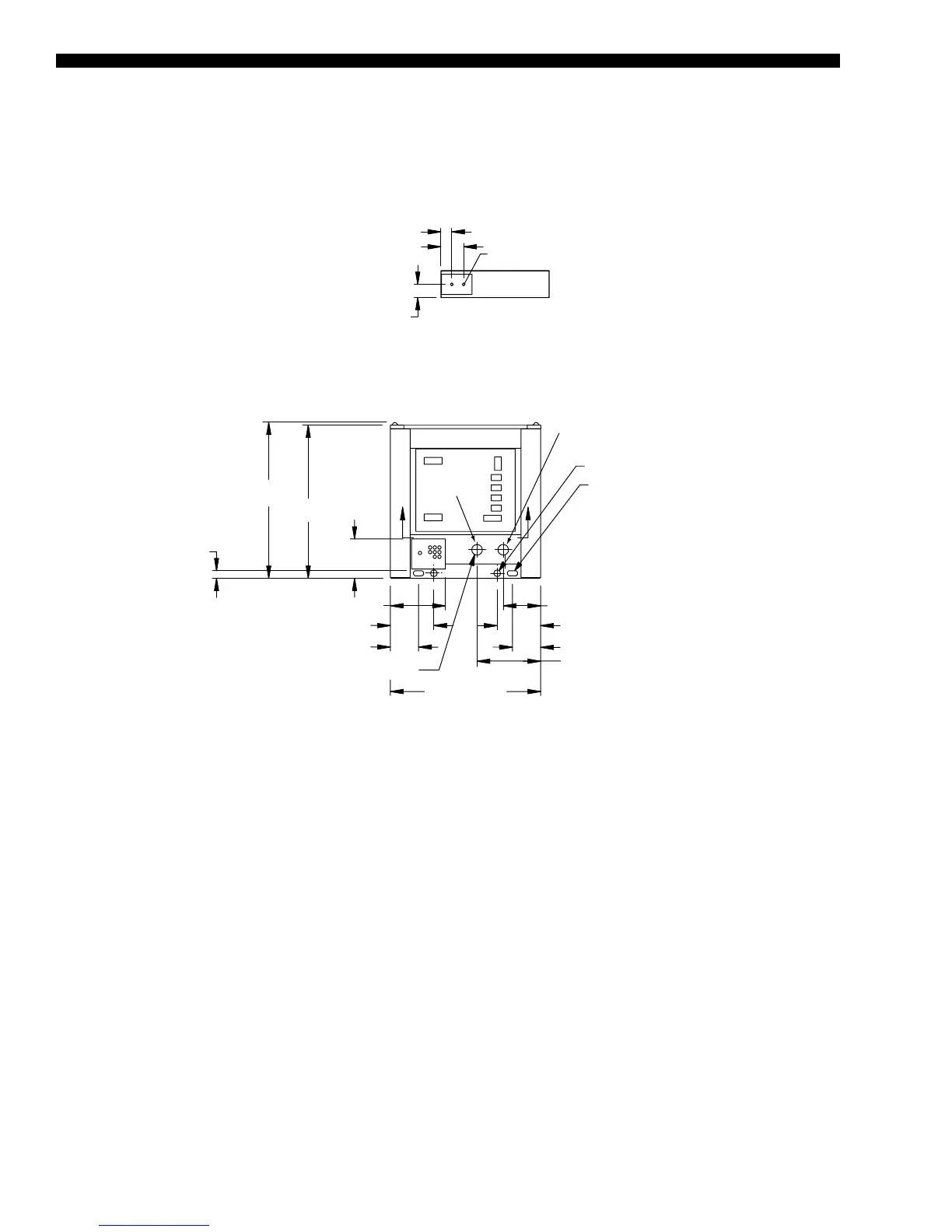

LEFT END
6 3/4"
3 15/16"
BOTTOM OF PANEL
7/8" TYP.
VIEW B-B
POWER: SINGLE POINT SUPPLY WITH TERMINAL BLOCK
46 1/16"
45 1/4"
11 5/8"
2" DIA
(2) 3.0 X 1.50
RIGGING HOLES
BOTH ENDS
44 5/16"
BASE WIDTH
18 3/4"
11"
TO ACCESS PANEL 16 1/4"
8 5/16"
12 13/16"
8 5/16"
12 13/16"
B
B
2" ANSI/AWWA C-606
CONN (typ)
IN
OUT
LD18691
