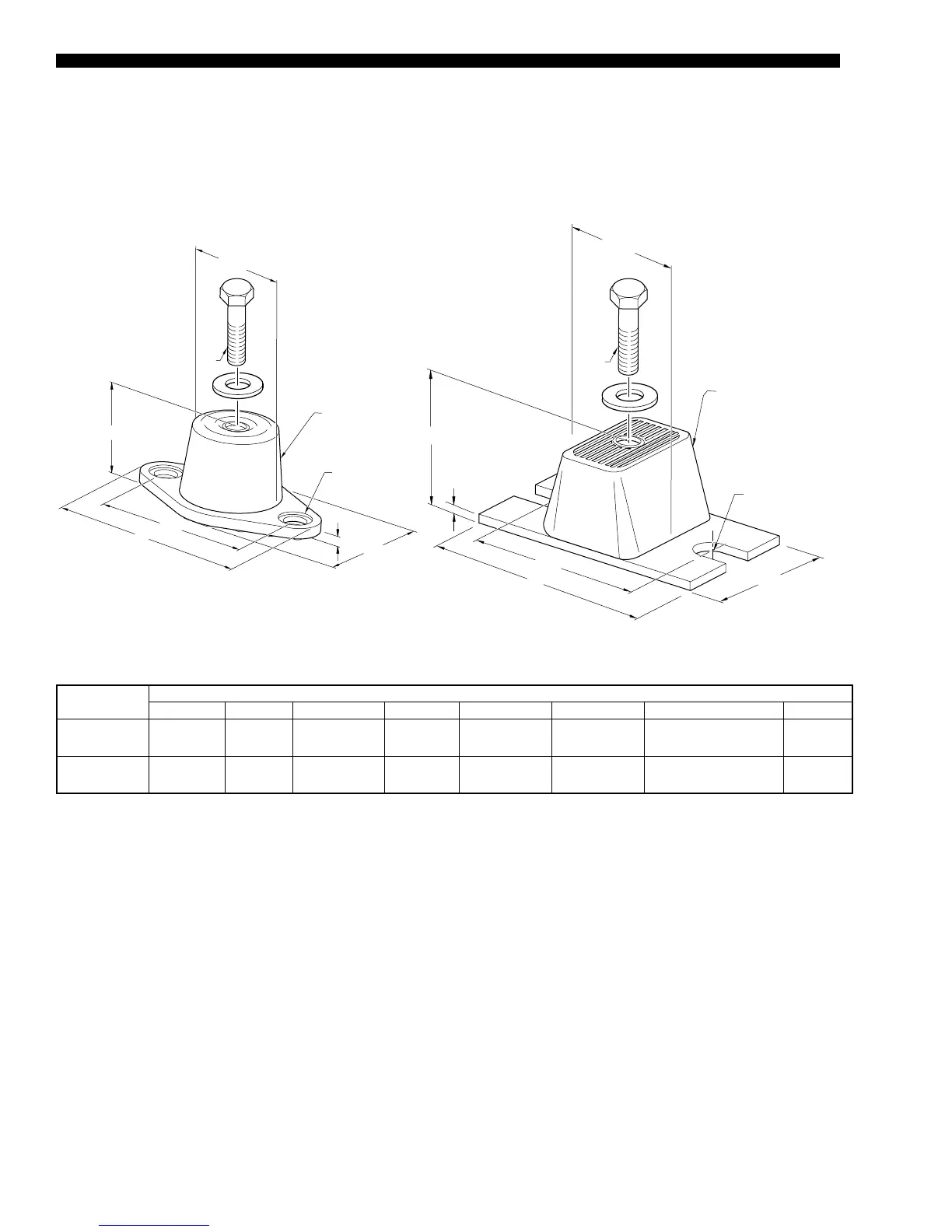

Isolator Details (Cont'd)
MOUNT
TYPE
DIMENSION DATA (INCHES)
L W HF AL AD BT CD DW
RD3-WR
5.5
(139.7)
3.38
(85.85)
2.88
(73.15)
4.13
(104.90)
0.56
(14.22)
0.25
(6.35)
1/2-13 UNC X 1
2.5
(63.5)
RD4-WR
6.25
(158.7)
4.63
(117.60)
2.75
(69.85)
5
(127)
0.56
(14.22)
0.38
(9.65)
1/2-13 UNC X 1
3
(76.2)
RD-1, 2, AND 3
ISOLATORS
ELASTOMERIC ISOLATOR
RD-4
ISOLATORS
