Installing Components in the DXi4700 Node
Quantum DXi4700 Installation Guide 29
a. Align the cooling-fan assembly slots with the guide pins on the chassis (see Figure 17 below).
b. Slide the cooling-fan assembly into the chassis.
c. Lock the cooling-fan assembly into the chassis.

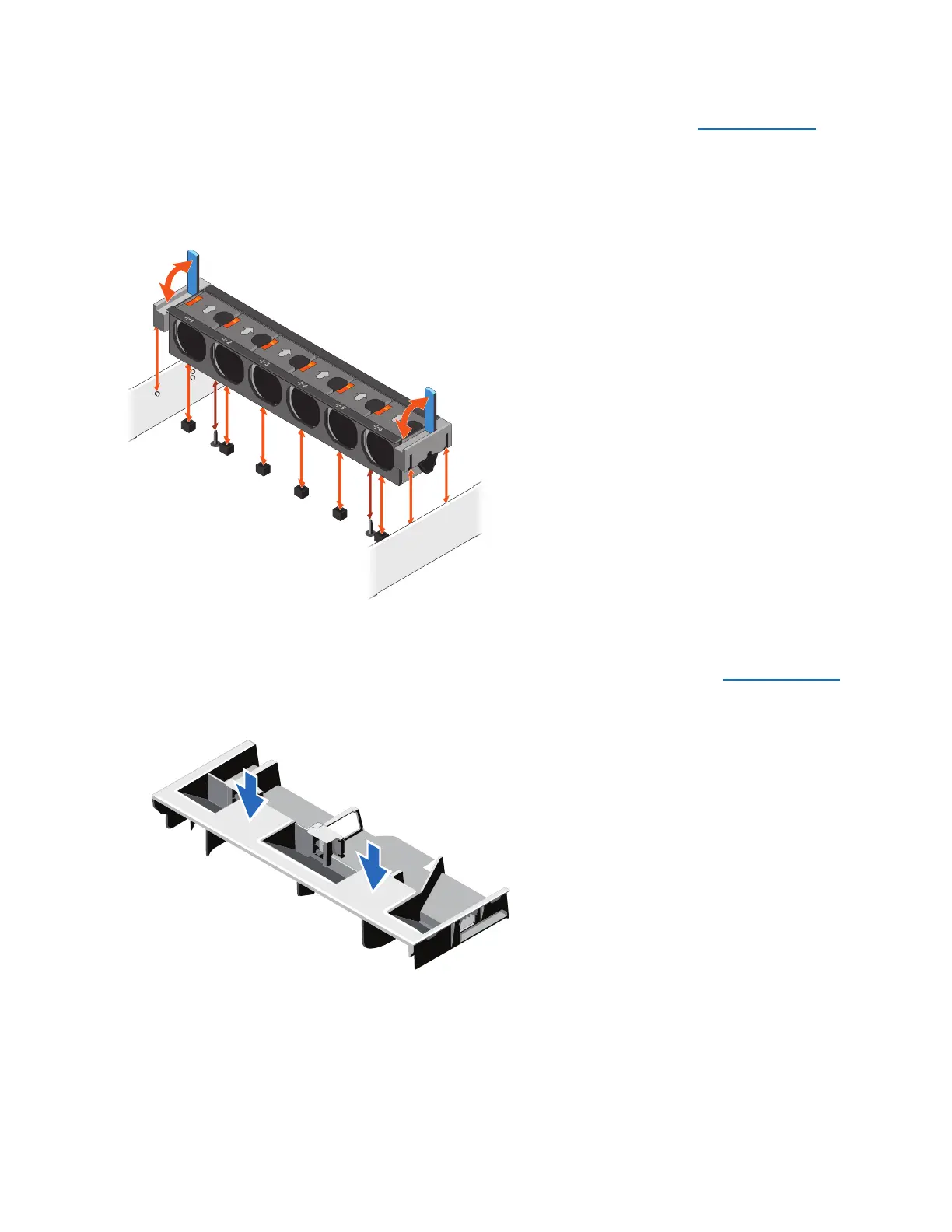

Figure 17: Replacing the Cooling-Fan Assembly
6. Replace the cooling shroud:
a. Align the tabs on the cooling shroud with the securing slots on the chassis (see Figure 18 below).
Figure 18: Replacing the Cooling Shroud
b. Lower the cooling shroud into the chassis until it is firmly seated.
