Quantum DXi4700 Installation Guide

Installing Components in the DXi4700 Node
Quantum DXi4700 Installation Guide 30
Note: For proper seating of the cooling shroud in the chassis, ensure that the cables inside
the system are routed along the chassis
Installing the H810/H830 RAID Controller
The PERC H810 RAID controller (DXi4700 G1) or PERC H830 RAID controller (DXi4700 G2) allows you
to connect up to three Expansion modules to the DXi4700 Node and is required for 45 TB and larger
configurations (see Table 3 below). Install the provided H810/H830 RAID controller card in PCIe slot 6,
located in expansion card riser 3 (see Figure 19 below for DXi4700 G1 and Figure 20 on the next page for
DXi4700 G2).
Table 3: DXi4700 RAID Controller Configurations
DXi4700
Configurations
Expansion
Modules
Actions to Take
5 TB
11 TB
19 TB
27 TB
0 l No action required.
45 TB
63 TB
1 l Install an H810 or H830 RAID controller card in PCIe
slot 6.
81 TB
99 TB
2
117 TB
135 TB
3

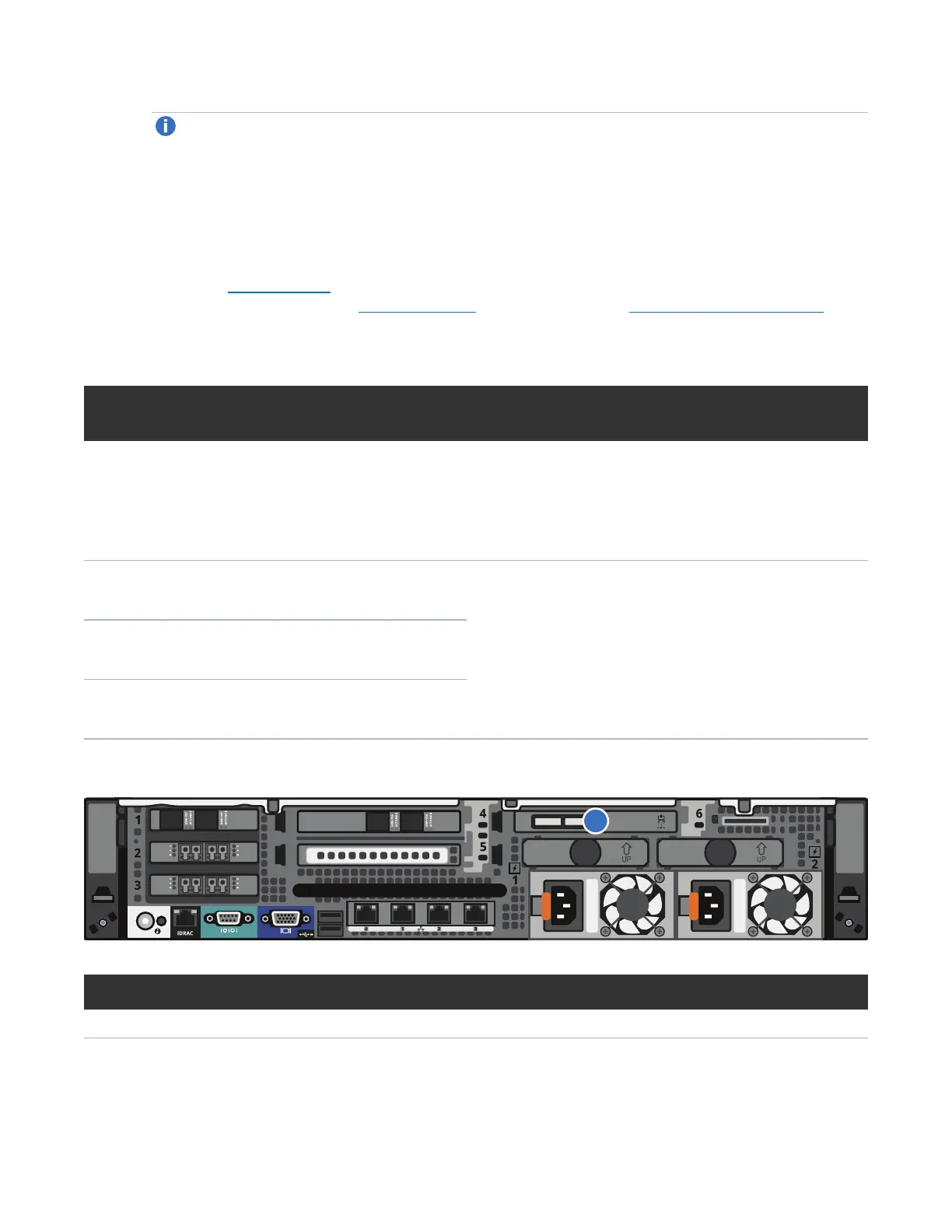

Figure 19: DXi4700 G1 H830 RAID Controller Card Location
1
Item Card Option(s)
1 H810 RAID controller card
