Installing the DXi6701 or DXi6702 System 17
DXi6701/DXi6702

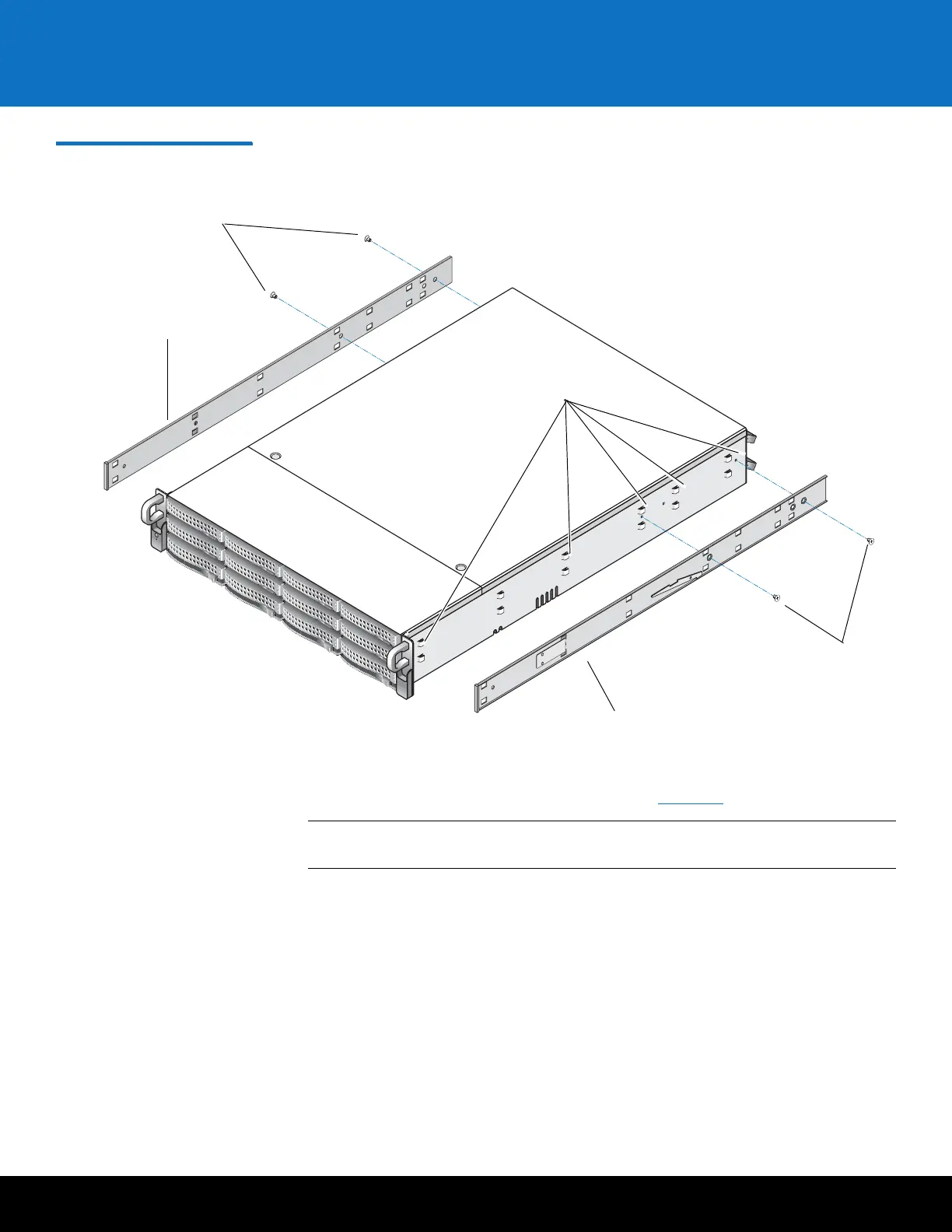

Figure 10 Installing the
Internal Chassis Rails
(Expansion Module)
3 Install the rack mounting rails into the rack and secure them by engaging the rail
tabs into the hole pattern of the rack rails. If the rack rails have round holes, use the
adapter bracket provided in the accessory kit (see
Figure 11).
Note: The rack mounting rails extend to support rack depths from 26.5 to 36.4
inches (67.3 to 92.5 cm).
Phillips screws (x 2)
Internal chassis rail
Phillips screws (x 2)
Internal chassis rail
Chassis tabs
