Quantum QXS 12G Series Drive Rackmount Install Guide

Install the 12-Drive and 24-Drive Chassis Rails
QX and QXS 12- and 24-Drive Rackmount Install Guide 10

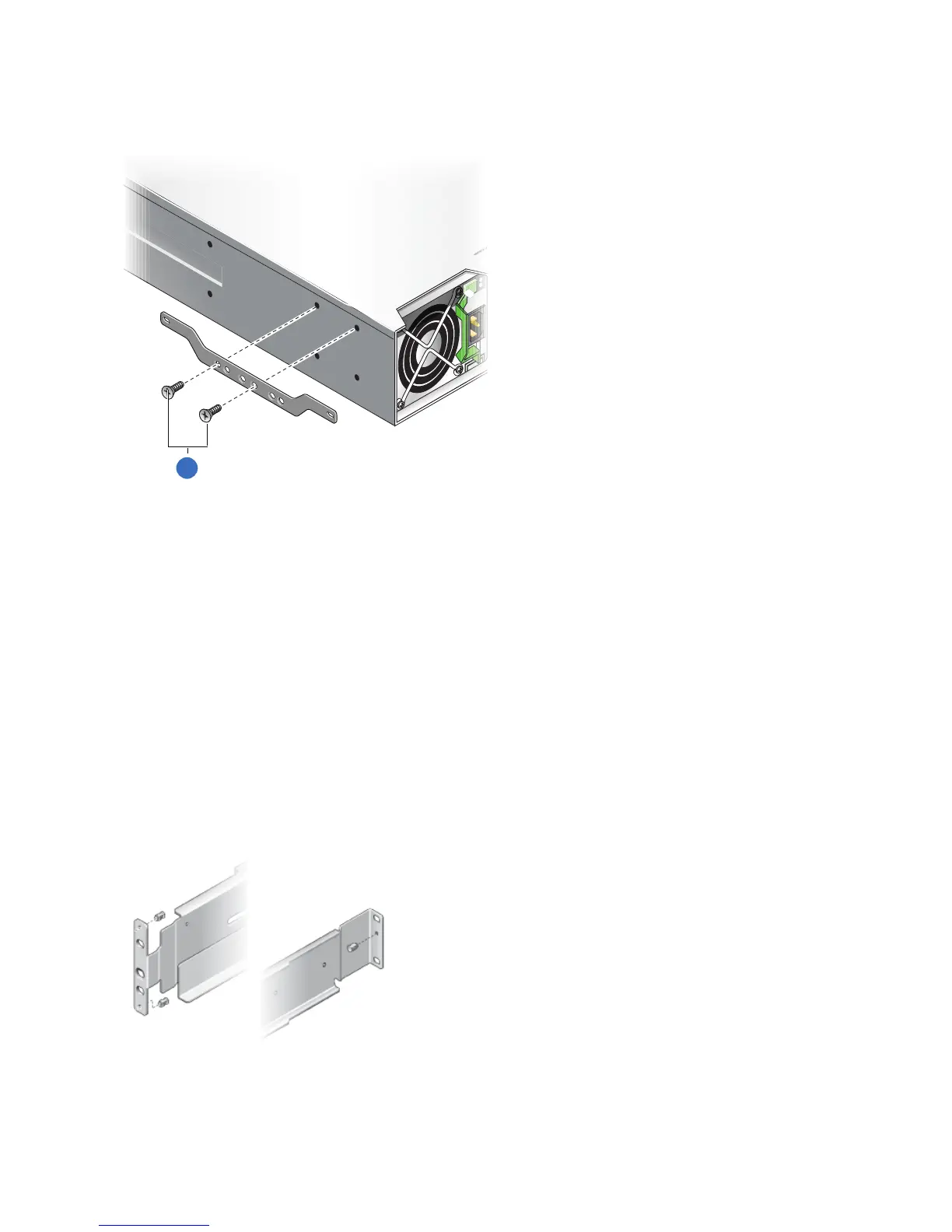

Figure 7: Attaching bracket to 24-drive enclosure (reduced-depth)
1
1. Screws (2 per bracket)
Step 2: Install Hanger Fasteners
1. Install the hanger fasteners in the front rail components with the heads facing inward.
Front rail sleeves require two pins each.
2. Install the hanger fasteners in the rear rail components with the heads facing inward.
Rear rail inserts require one pin each.
Keep in mind that you can loosely attach the fasteners to the hold the rails in place, and then position the
rails vertically and horizontally for accurate alignment. As soon as you have an accurate alignment,
tighten the fasteners.
Figure 8: Pre-Installed Hanger Fasteners
