Quantum QXS Series User Manual

Chapter 3: Connecting Hosts
Connect the Chassis to Hosts
QX and QXS Setup Guide 104
56-Drive System

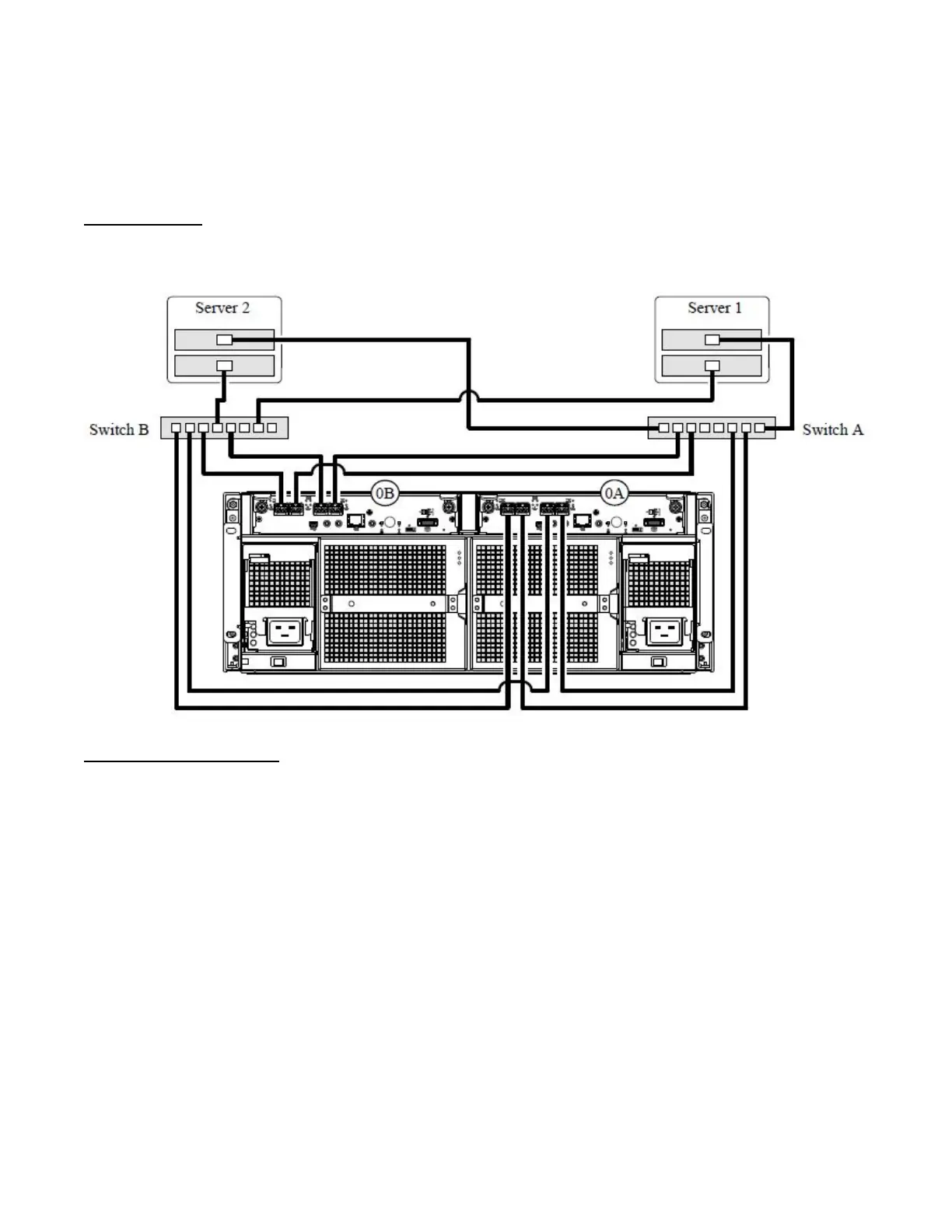

Figure 98 below provides a representative illustration of the 56-drive system with multiple servers/switches.
Figure98:Connecting hosts: Switch attach: multiple servers/switches
Figure 99 on the next page provides a representative illustration of the QXS-5600 system with four
servers/multiple switches/SAN fabric.
