INSTALLATION
Harmony Ball Return Manual – 400-254-022 25 Rev. Date 3/16
6.9.4 PINSPOTTER CONNECTIONS:
15. Connect the pinspotter’s control wires to junction block JP9 as shown in Figures 19 and 20.

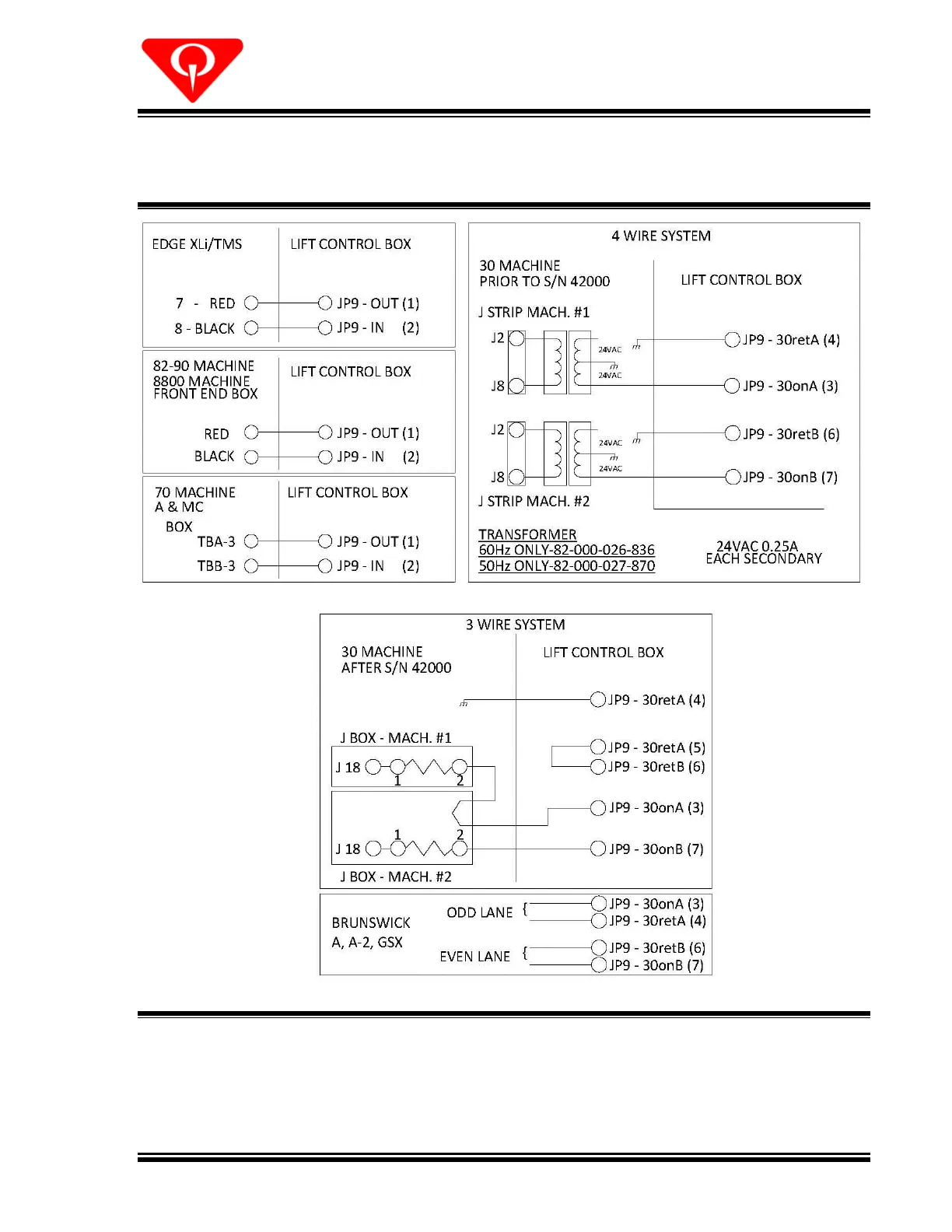

Figure 20, Control Box Wiring - Pinspotters
Figure 16, Electrical Connections
