3. PCU (Power Control Unit)
3.1. Overview
There are two connectors on the GL300W EBK: One is 4-pin connector for VBAT IN interface; the
other is 8-pin connector for Digital Input and PWR Output interface.
The PCU has an onboard motion sensor which can detect the motion/rest status of the PCU.

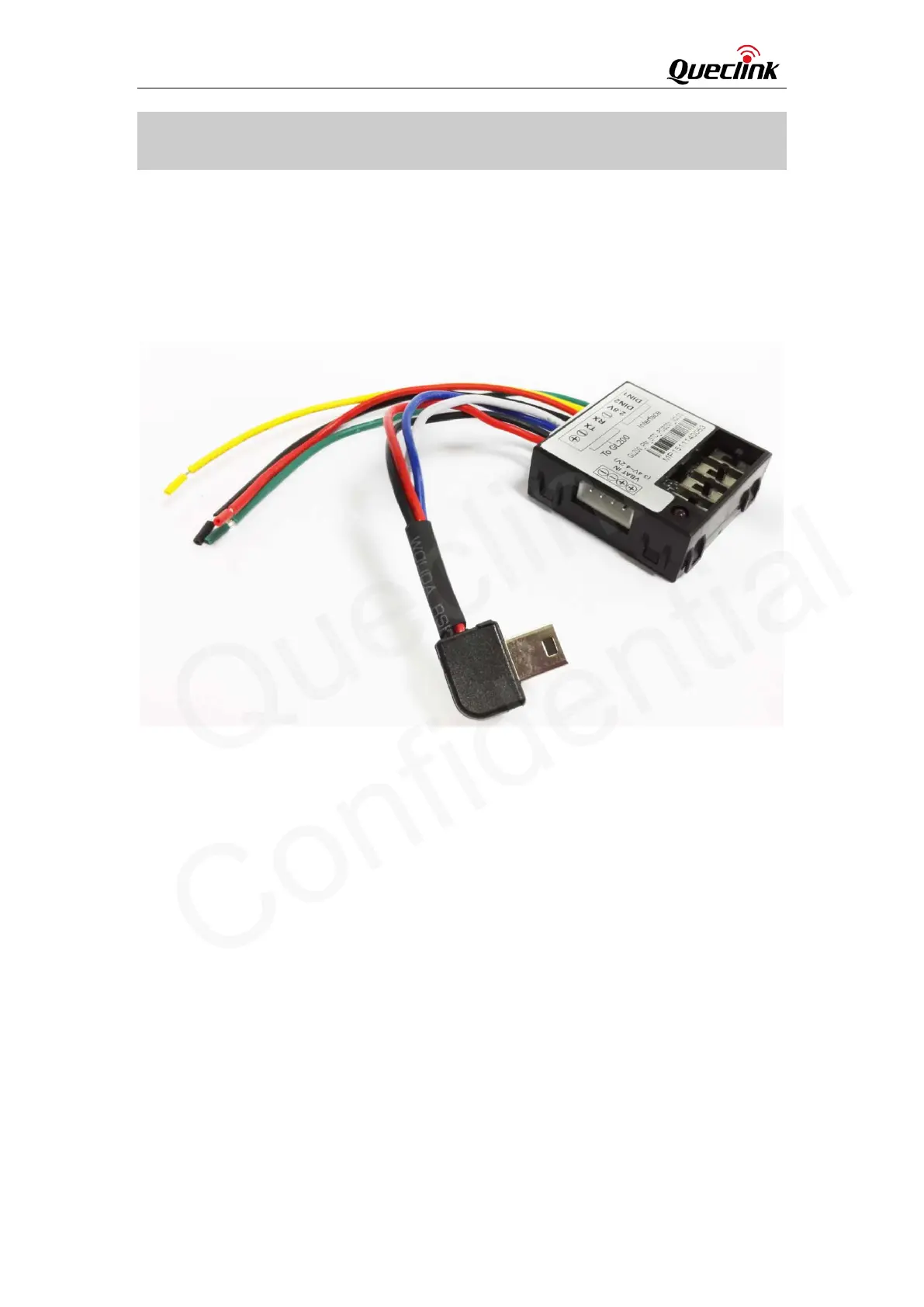

Figure 2: PCU Interface
