GL320M Series User Manual
QSZTRACGL320MUM0100 10
5.4. Ignition Detection
Pin 3 on the Type-C connector is for ignition detection when GL320M is used in vehicle tracking
application. It is named as IGN_INPUT pin.

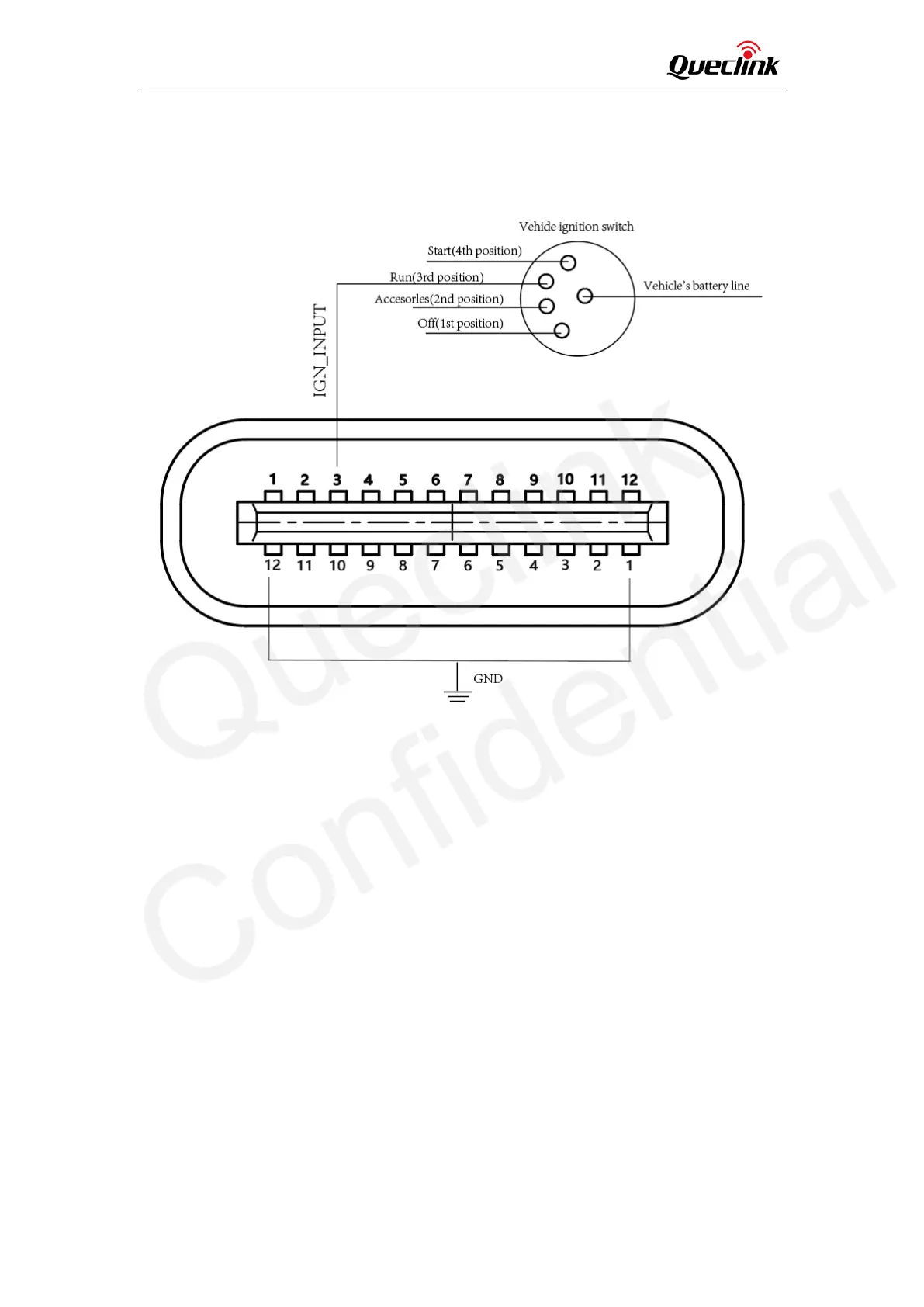

Figure 7. Ignition Detection Connection of GL320M
Another easy way is to connect PIN3 to a power output which is only enabled when the vehicle is
ignition on (e.g. the power output for radio FM) in the fuse box of the vehicle.
