GV75 User Manual
TRACGV75UM00110

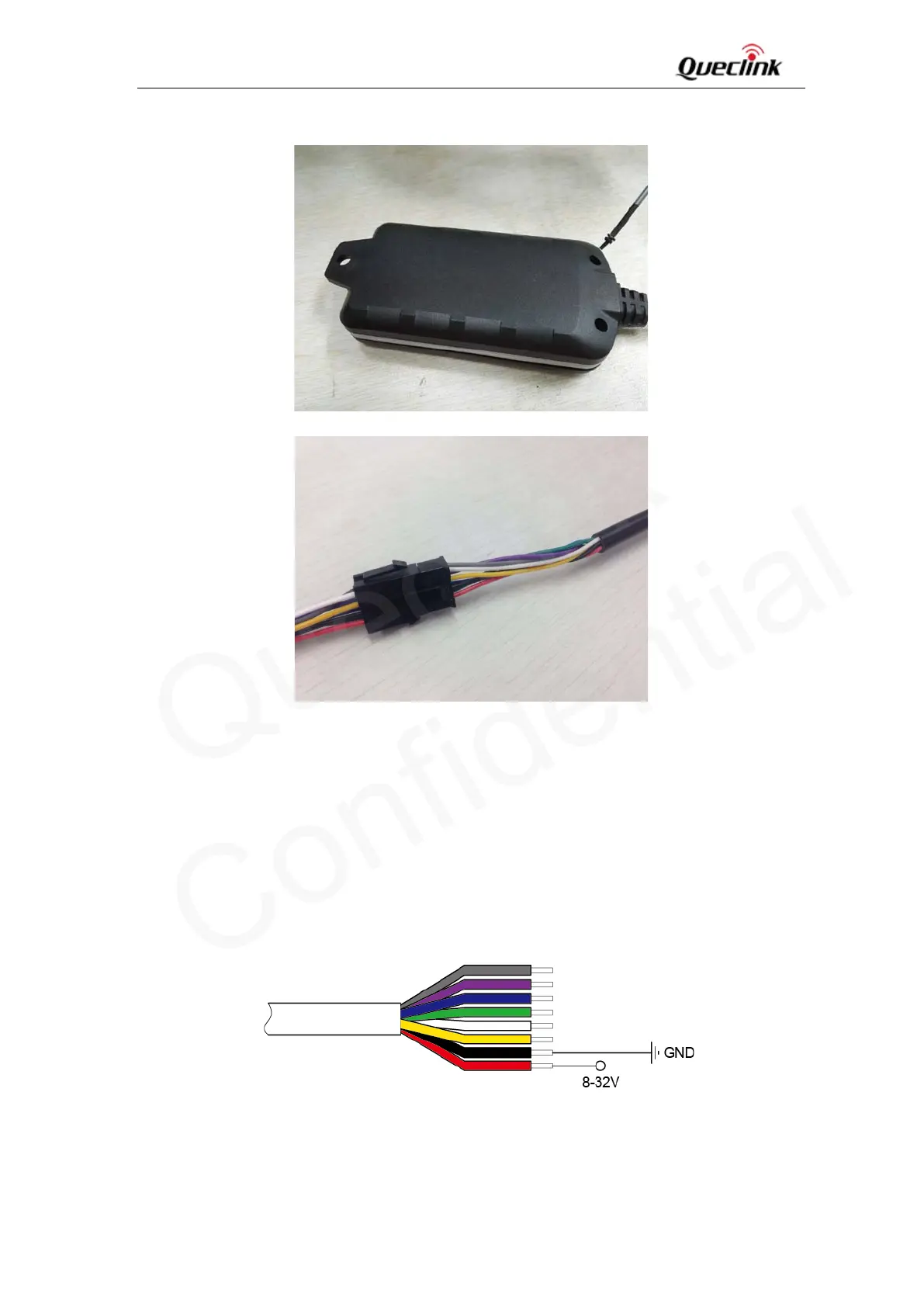

Step 4: Turn over the device and tighten the screw with screw cushion.
Step 5: Connect the device to extend cable. Or cut off the 8Pin Molex connector.
3.2. Switch on the Device
The method to power on GV75:
- Use external power to turn on.
When the external power is removed,GV75 will switch to internal backup battery and keep on
running. When internal backup battery is exhausted, GV75 will give a report and then turn off.
3.3. Power Connection
The red wireis power wire and the black wire is ground wire. The input voltage range for this
device is from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V
or 24V systems without the need for external transformers.
Figure 2. Typical Power Connection
