Queclink GV75W User Manual

GV75WUserManual  
TRACGV75WUM001 ‐10‐

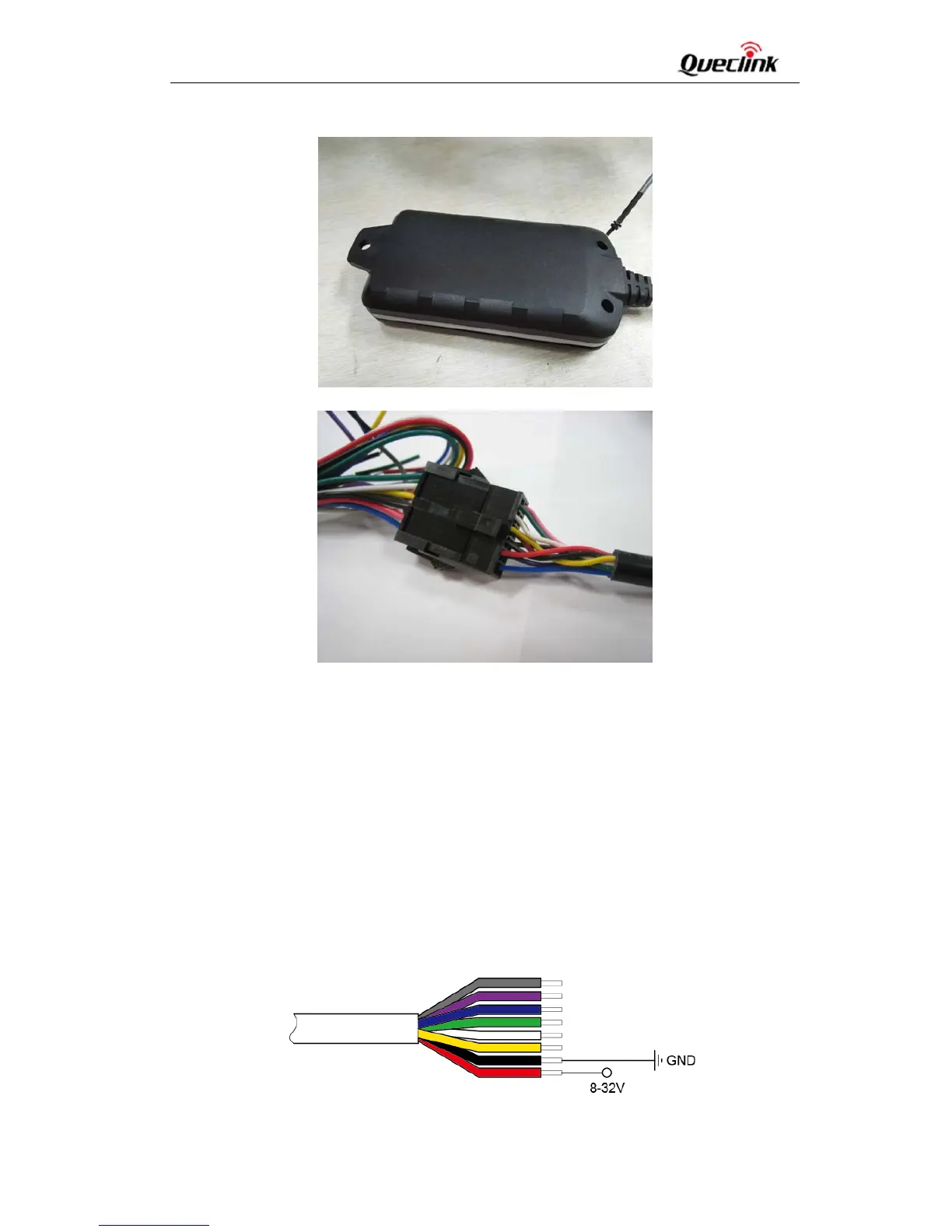

Step4:Turnoverthedeviceandtightenthescrewwithscrewcushion.

Step5:Connectthedevicetoextensioncableorcutoffthe12PinMolexconnector.



3.2. SwitchontheDevice
The method to power on GV75W:Useexternalpowertoturnon.
Whentheexternalpowerisremoved,GV75Wwillswitchtointernal backupbattery andkeepon
running.Wheninternalbackupbatteryisexhausted,GV75Wwillreportamessageandthenturnoff. 


3.3. PowerConnection
Theredwireispowerwireandtheblackwireisgroundwire.Theinputvoltagerangeforthisdevice
isfrom8Vto32V.Thedeviceisdesignedtobeinstalledinvehicles that operate on 12V or 24V
systemswithouttheneedforexternaltransformers.


Queclink GV75W Specifications

General

Brand	Queclink
Model	GV75W
Category	GPS
Language	English
