U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.

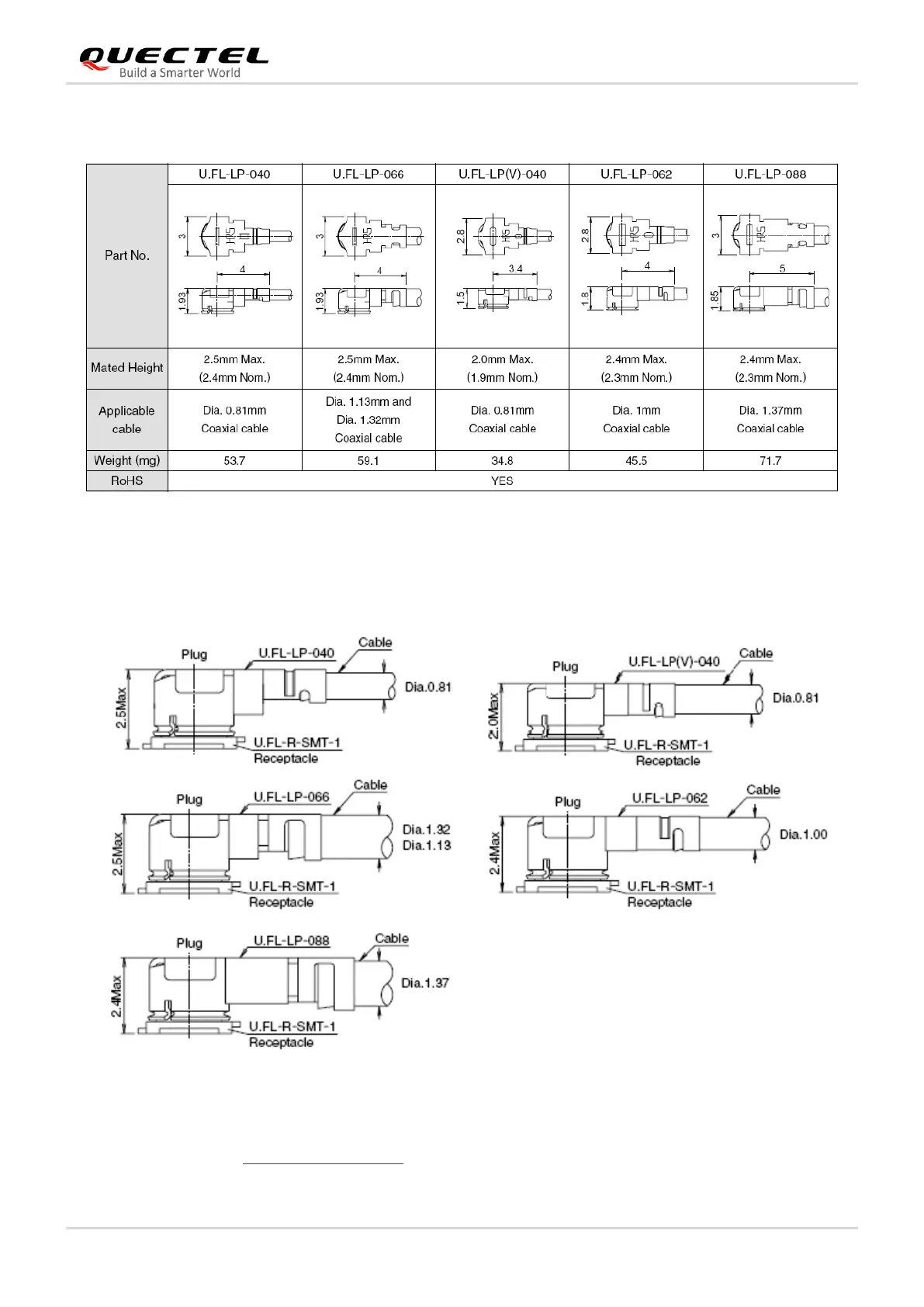

Figure 29: Mechanicals of U.FL-LP Connectors
The following figure describes the space factor of mated connector.
Figure 30: Space Factor of Mated Connector (Unit: mm)
For more details, visit http://www.hirose.com.
