6 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimetre (mm), and dimensional tolerances are ±0.05 mm unless otherwise specified.
6.1. Mechanical Dimensions of the Module

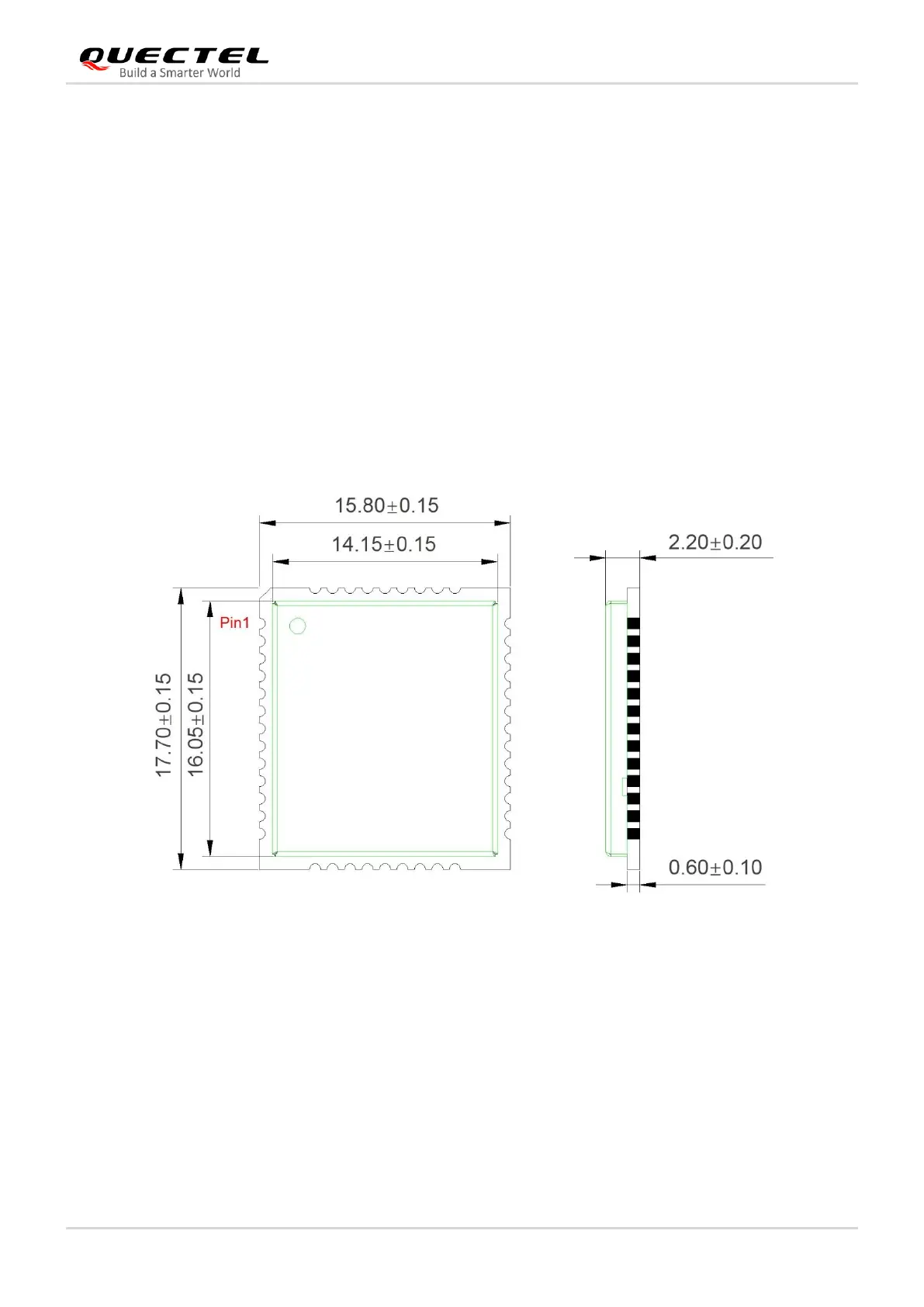

Figure 31: Module Top and Side Dimensions (Unit: mm)
