6.2. Recommended Footprint
1
14
23
36

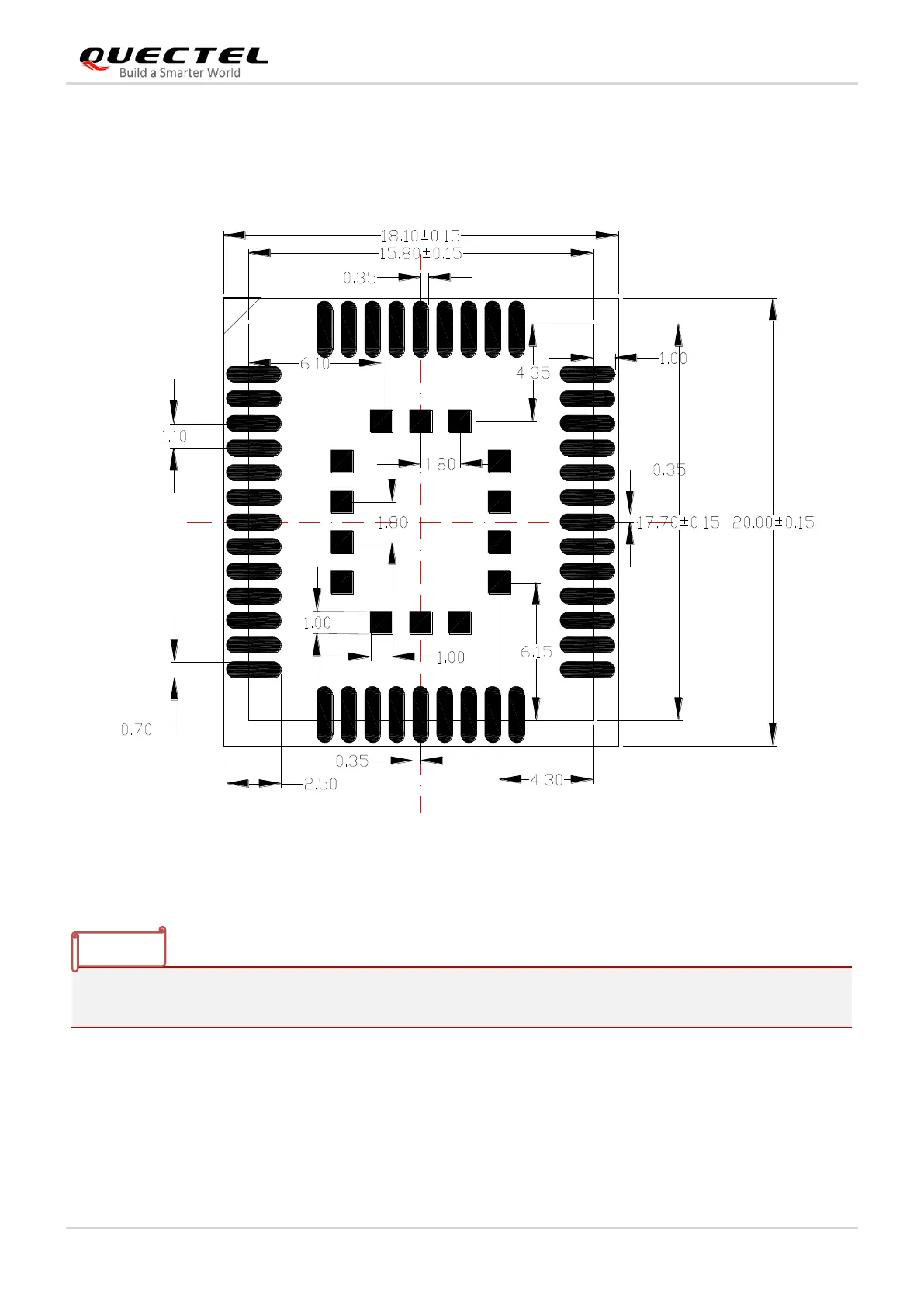

Figure 33: Recommended Footprint (Top View, Unit: mm)
For easy maintenance of the module, keep about 3 mm between the module and other components on
the motherboard.
NOTE
Pin 1
