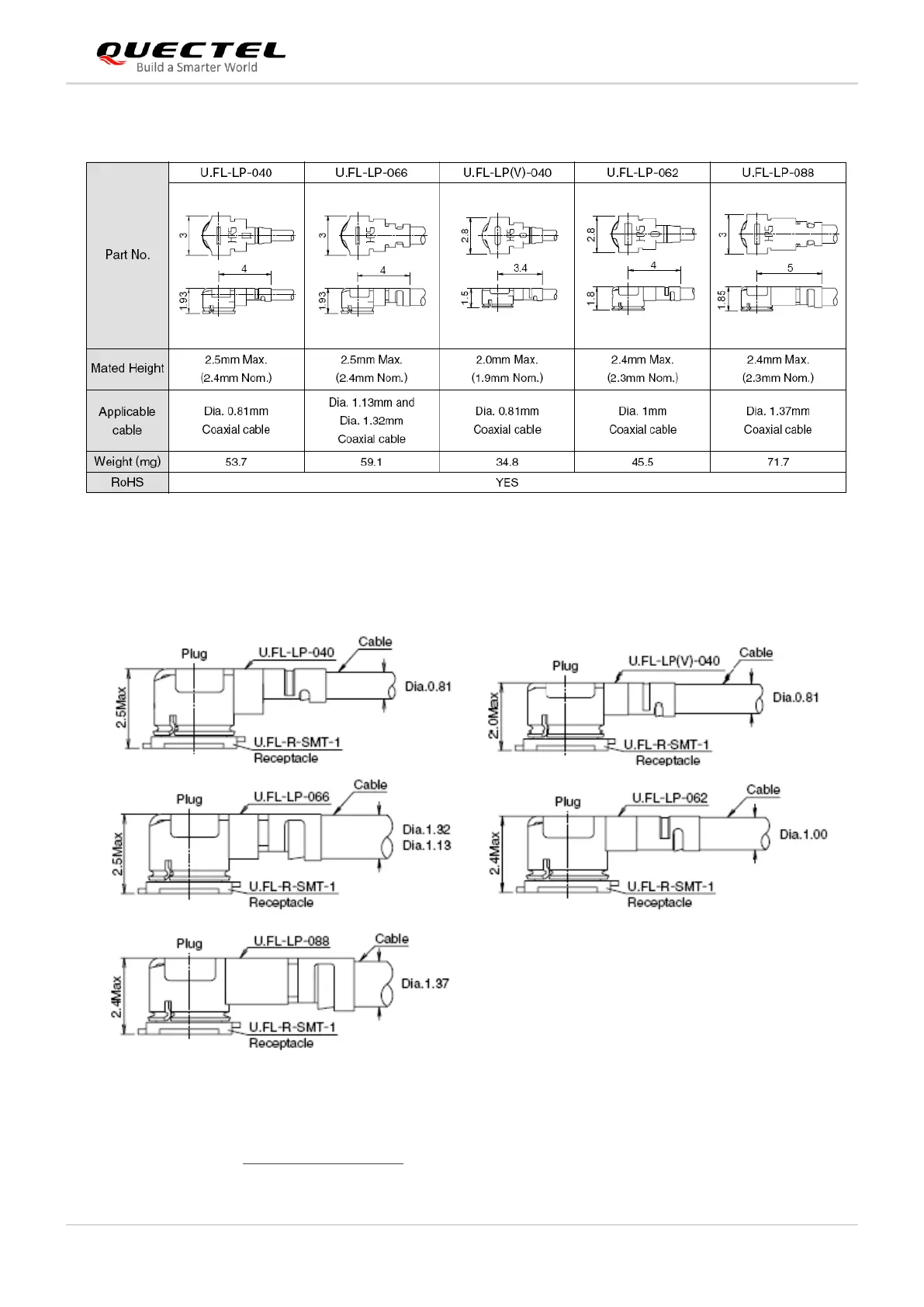

U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
Figure 25: Mechanicals of U.FL-LP Connectors
The following figure describes the space factor of mated connectors.
Figure 26: Space Factor of Mated Connectors (Unit: mm)
For more details, visit http://www.hirose.com.
