Quectel EG915U-EU - RF Design and Interfaces

LTE Standard Module Series
EG915U-EU_Hardware_Design 56 / 81
5.1.4. Reference Design
The module provides 2 RF antenna interfaces for antenna connection.
It is recommended to reserve a π-type matching circuit for better RF performance, and the π-type
matching components (R1, C1, C2 and R2, C3, C4) should be placed as close to the antenna as possible.
The capacitors are not mounted by default.
ANT_MAIN
R1 0 R
C1
Module
Main
antenna
NM
C2
NM
R2 0 R
C3
NM
C4
NM
ANT_BT/
WIFI
SACN

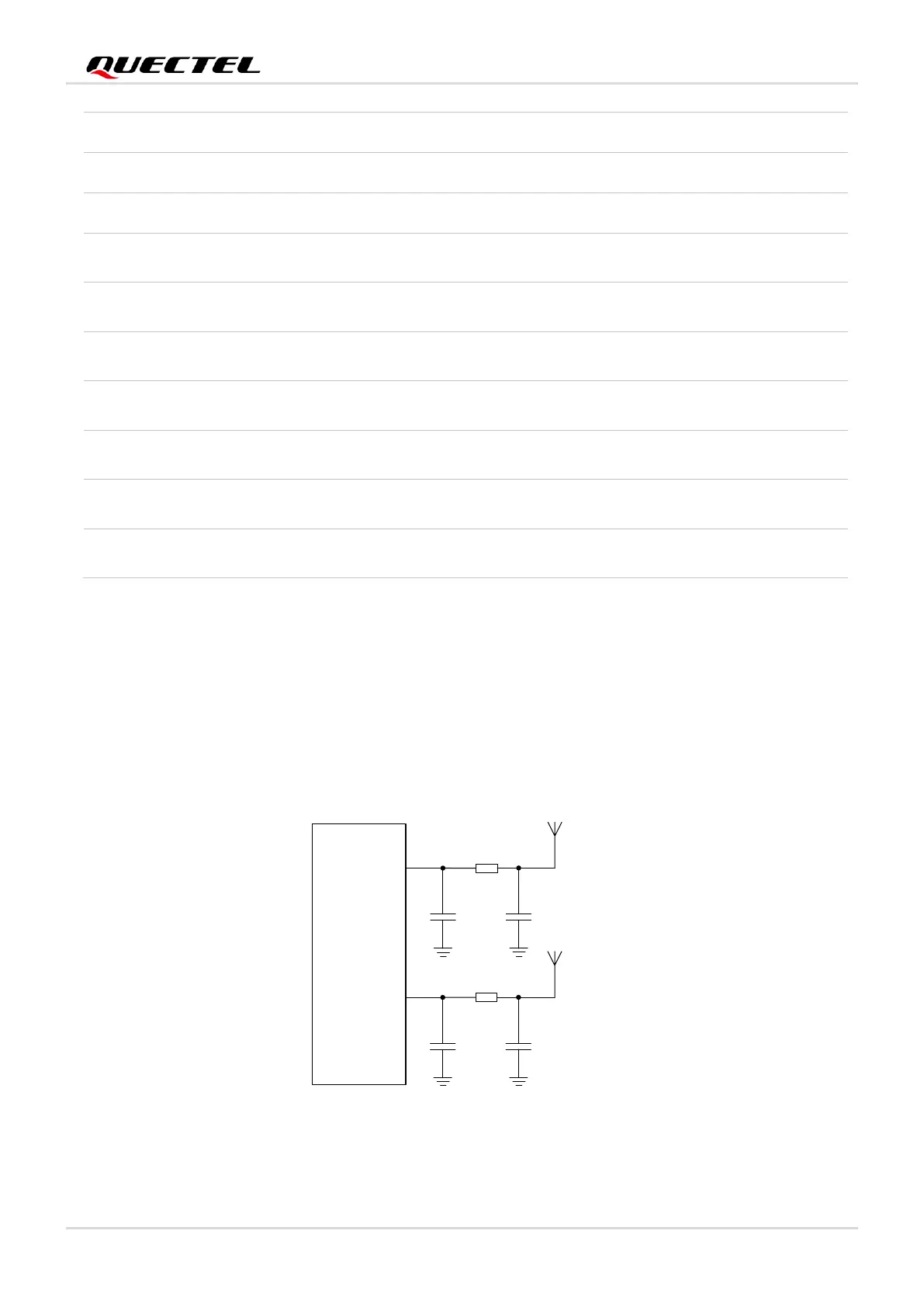

Figure 27: Reference Circuit for RF Antenna Interfaces
EGSM900
TBD
-102 dBm
DCS1800
TBD
-102 dBm
PCS1900
TBD
-102 dBm
LTE-FDD B1 (10
MHz)
TBD
-96.3 dBm
LTE-FDD B3 (10
MHz)
TBD
-96.3 dBm
LTE-FDD B5 (10
MHz)
TBD
-94.3 dBm
LTE-FDD B7 (10
MHz)
TBD
-94.3 dBm
LTE-FDD B8 (10
MHz)
TBD
-93.3 dBm
LTE-FDD B20 (10
MHz)
TBD
-93.3 dBm
LTE-FDD B28 (10
MHz)
TBD
-94.8 dBm
