EG915U_Series_Hardware_Design 61 / 91

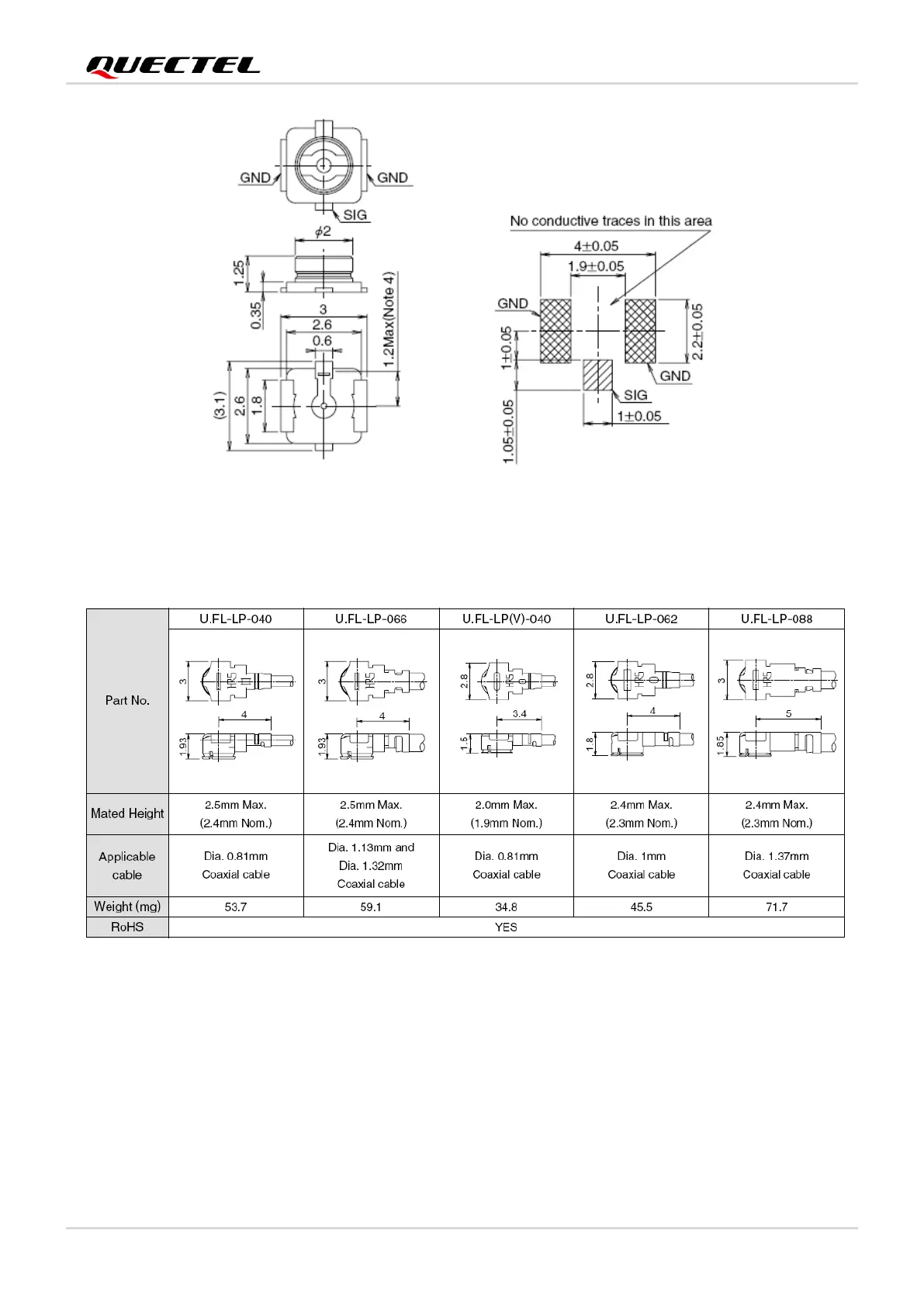

Figure 33: Dimensions of U.FL-R-SMT Connector (Unit: mm)
U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
Figure 34: Mechanicals of U.FL-LP Connectors
The following figure describes the space factor of mated connector.
