7.3 Recommended Footprint

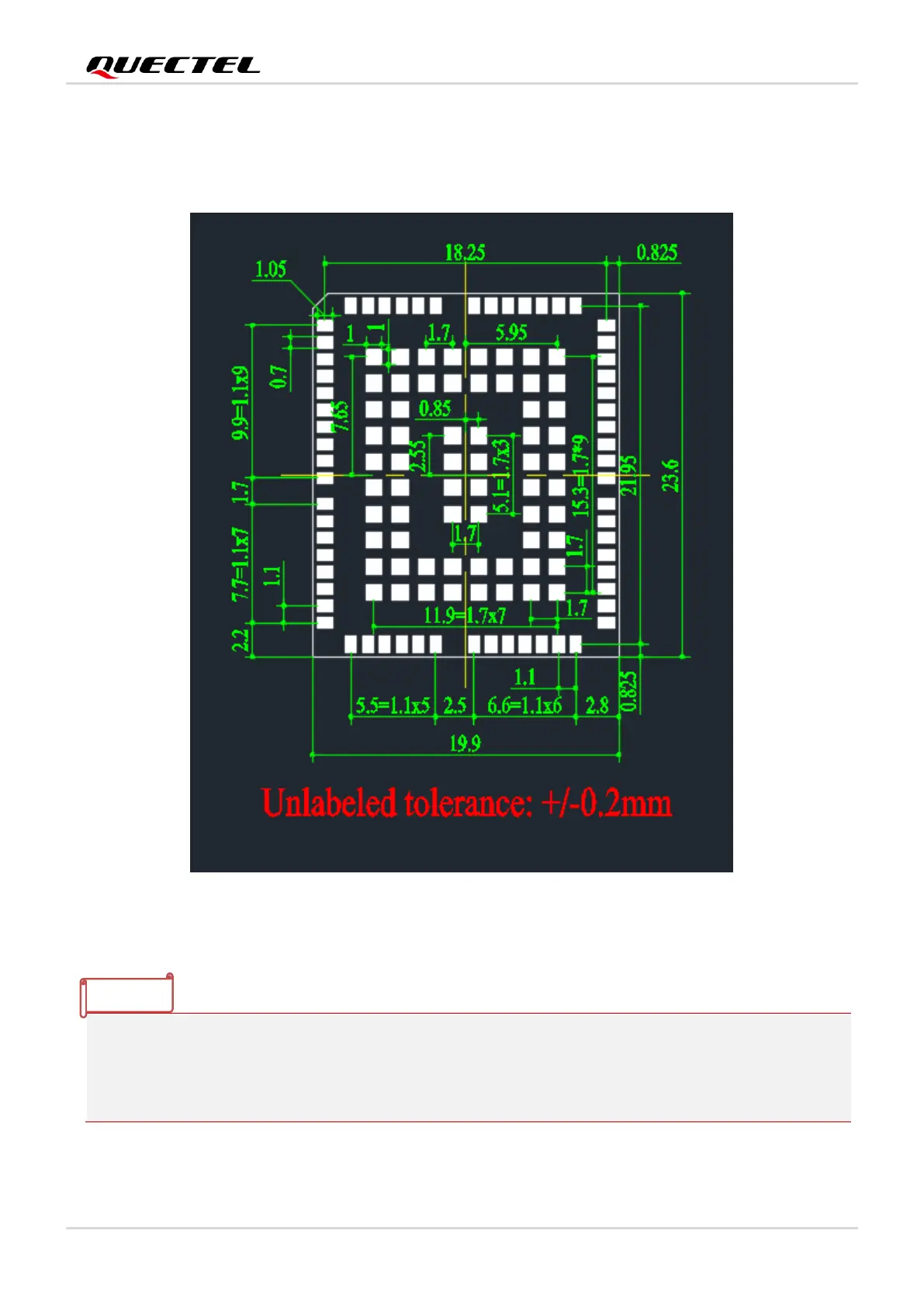

Figure 38: Recommended Footprint (TOP View)
.
1. For easy maintenance of the module, keep about 3 mm between the module and other components
on the motherboard.
2. To keep the reliability of the mounting and soldering, keep the motherboard thickness as at least
1.2 mm
NOTE
