Quectel L76 Hardware Design

GNSS Module Series
L76&L76-L_Hardware_Design 14 / 59
Flash
RF F r on t -
E nd
In t e g r a t e d
L NA
Fractional-N
Syntheszer
GNSS
Engine
PMU
ARM7
Processor
Peripheral
controller
RTC
RAM
RF_IN
Active
Interference
Cancellation
32.768K XTAL
VCC
V_BCKP
I2C
RESET_N
STANDBY
1PPS
VDD_RF
ANTON
WAKEUP
Saw
filter
ROM
UART
(Only supported by L76-L )
LNA
(Only supported by
L76-L and L76-L(L))
TCXO

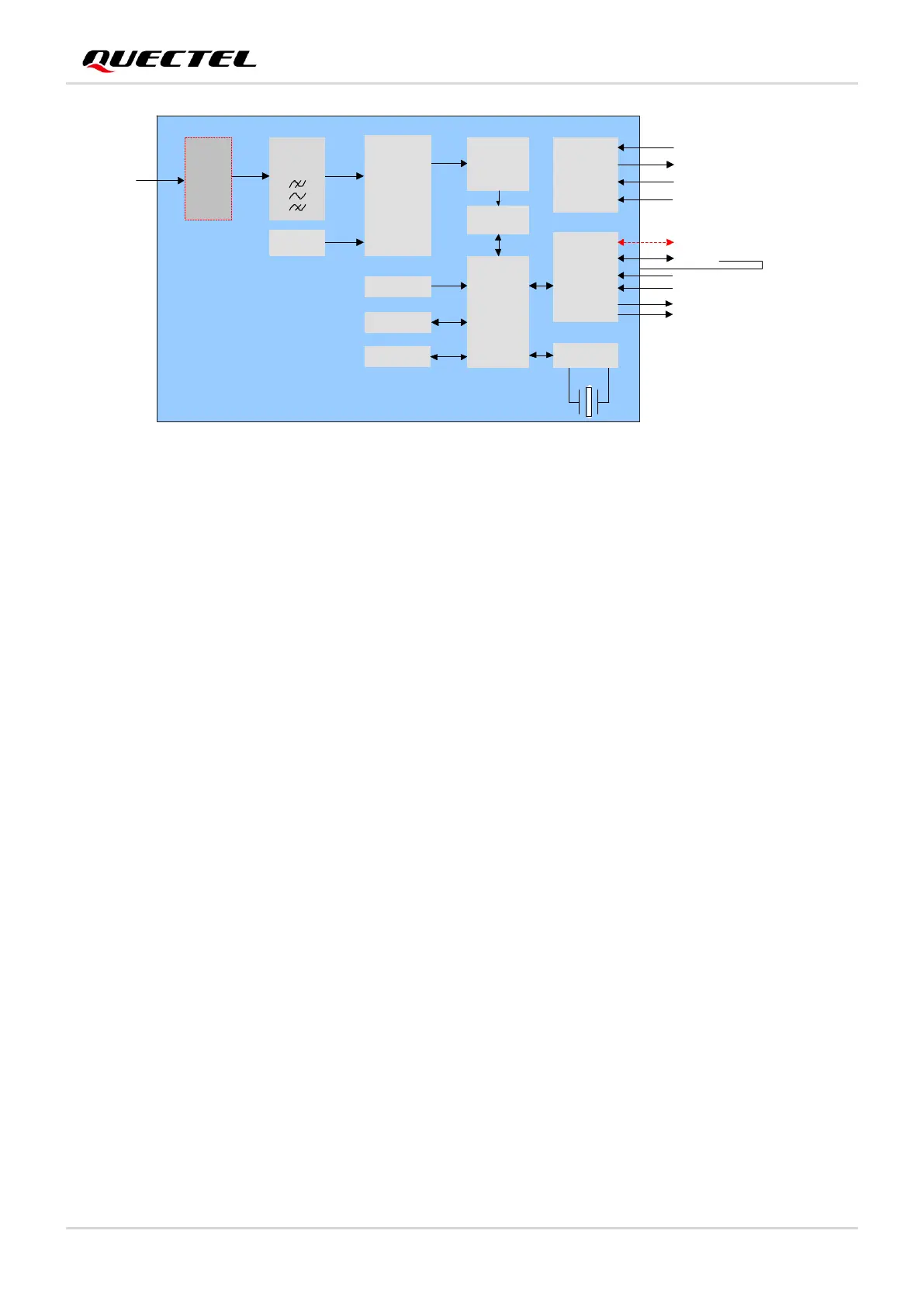

Figure 1: Block Diagram
1.5. GNSS Constellations
These modules are single-band GNSS receivers that can receive and track GPS, BeiDou, GLONASS,
Galileo, and QZSS signals.
1.5.1. GPS
These modules are designed to receive and track GPS L1 C/A (1574.397–1576.443 MHz) signals
provided by GPS.
1.5.2. BeiDou
They are designed to receive and track BeiDou B1I (1559.052–1563.144 MHz) signals provided by the
BeiDou Navigation Satellite System. The ability to receive and track BeiDou signals in conjunction with
GPS results in higher coverage, improved reliability, and better accuracy.
1.5.3. GLONASS
They are designed to receive and track GLONASS L1 signals (1597.781–1605.656 MHz) provided by
GLONASS.
