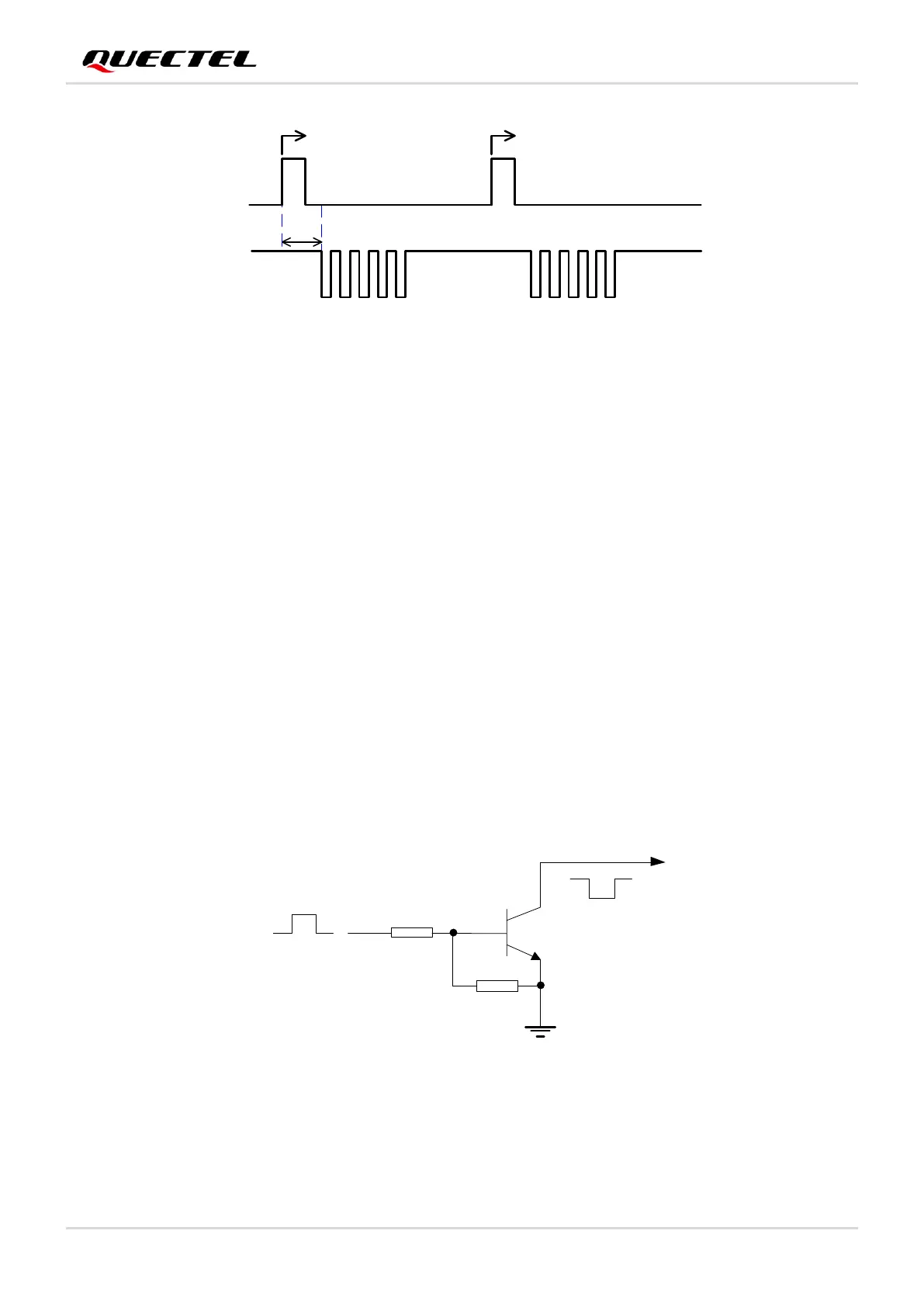

Figure 15: 1PPS & NMEA Timing
The feature only supports 1 Hz NMEA output at baud rate 19200-115200 bps. Because at lower baud
rates, the time needed for transmission may exceed 1 second if there are many NMEA sentences. For
more information about the commands to enable/disable this function, see document [1].
4.1.4. System Pin
4.1.4.1. RESET_N
RESET_N is an input pin. The modules can be reset by driving RESET_N low for at least 100 ms and
then releasing it.
The pin is pulled up internally by default. As the power domain of RESET_N is 2.8 V/1.8 V and the pin has
been pulled up inside the modules, no external pull-up circuit is allowed for this pin.
An OC driver circuit as shown below is recommended to control the RESET_N pin.
