2.3. Functional Diagram

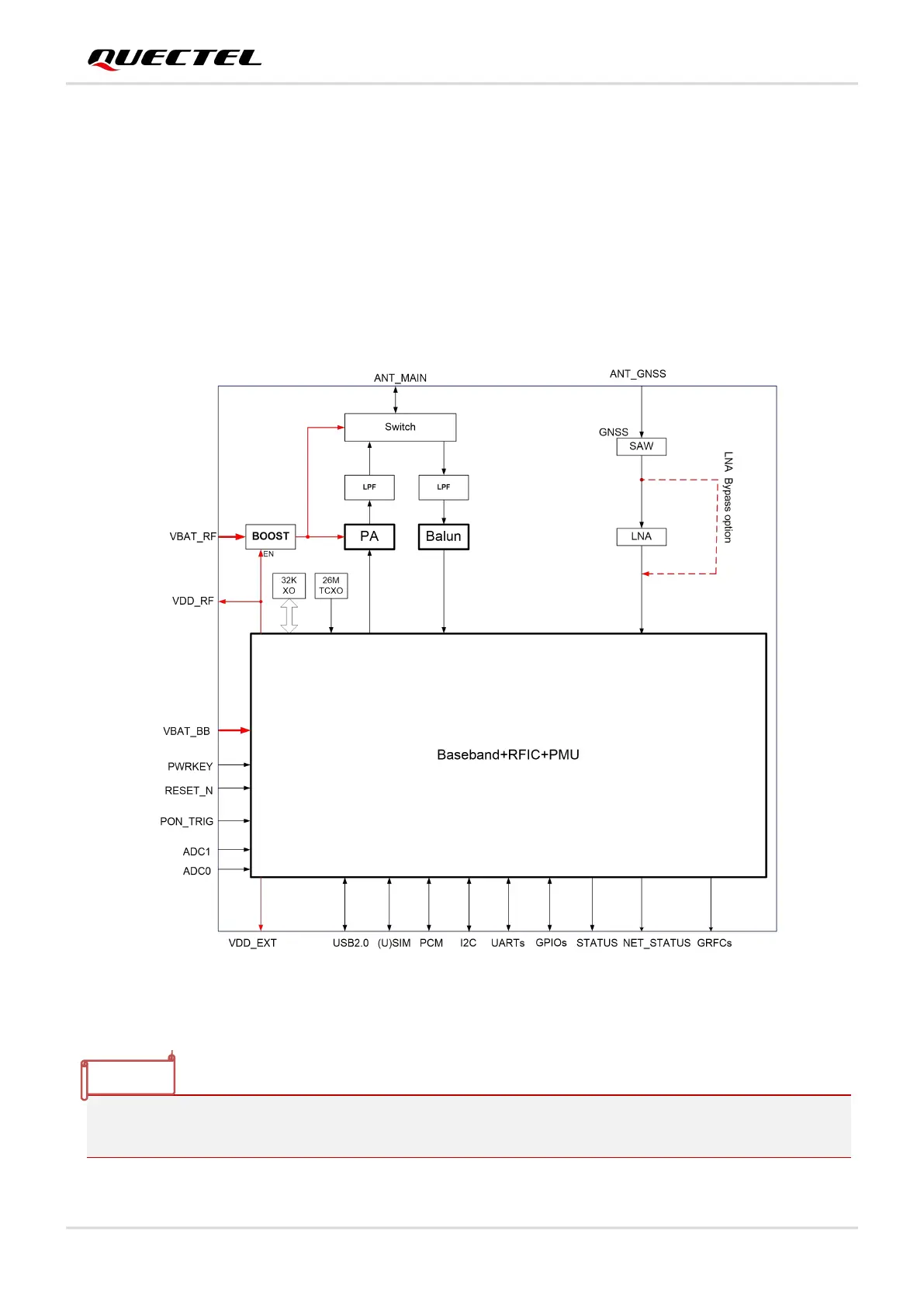

The following figure shows a block diagram of the module and illustrates the major functional parts.

Power management

Baseband

Radio frequency

Peripheral interface
Figure 1: Functional Diagram of BG950A-GL
1. PCM and I2C interfaces are for VoLTE* only.
2. The related information of BG951A-GL will be added in the future version.
NOTE
