LPWA Module Series
BG950A-GL&BG951A-GL_Hardware_Design
19
/89
2.4. Pin Assignment
The following figure illustrates the pin assignment of BG950A-GL.

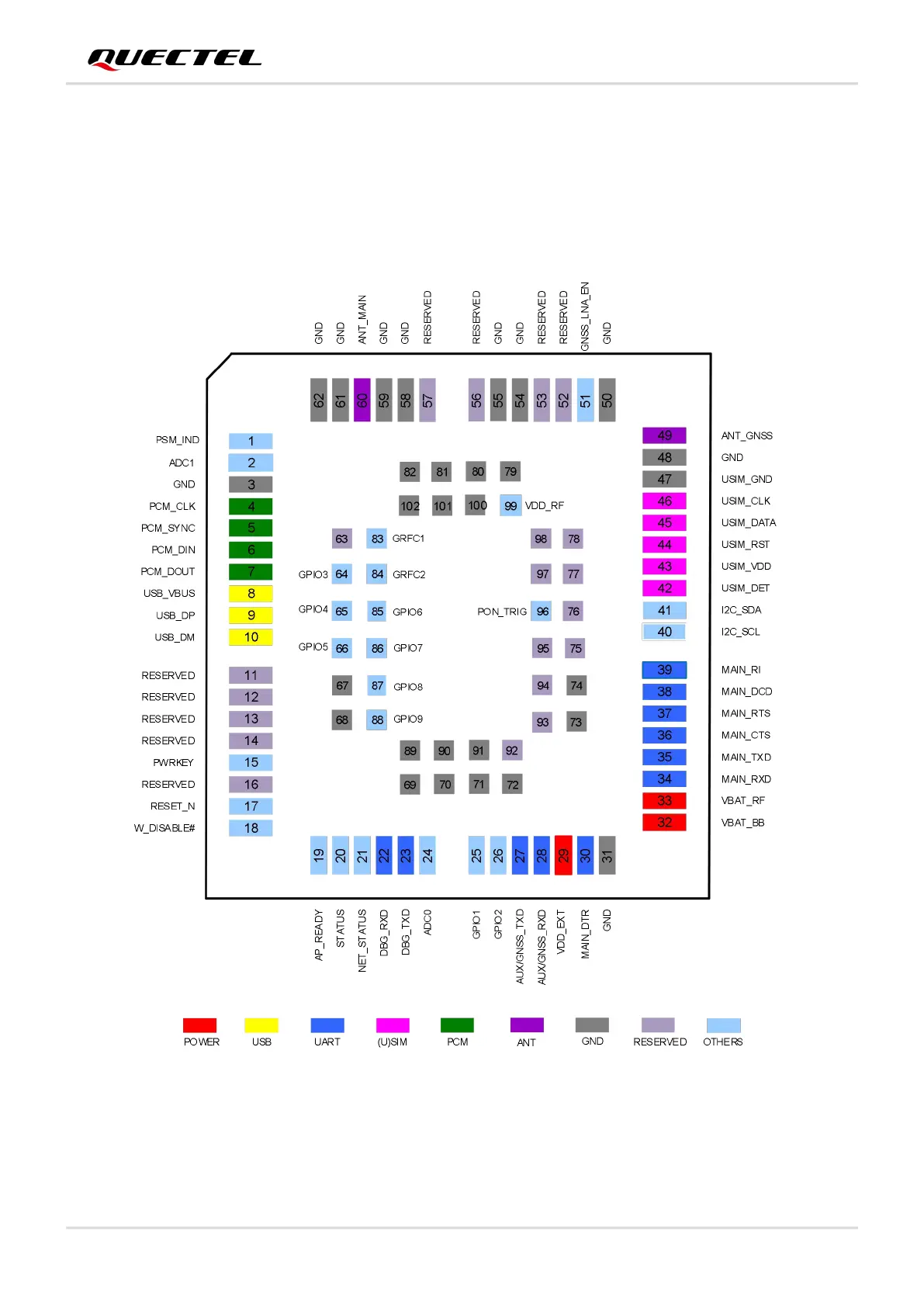

Figure 2: Pin Assignment of BG950A-GL (Top View)
