Quectel LPWA Series Hardware Design

LPWA Module Series
BG950A-GL&BG951A-GL_Hardware_Design
40
/89

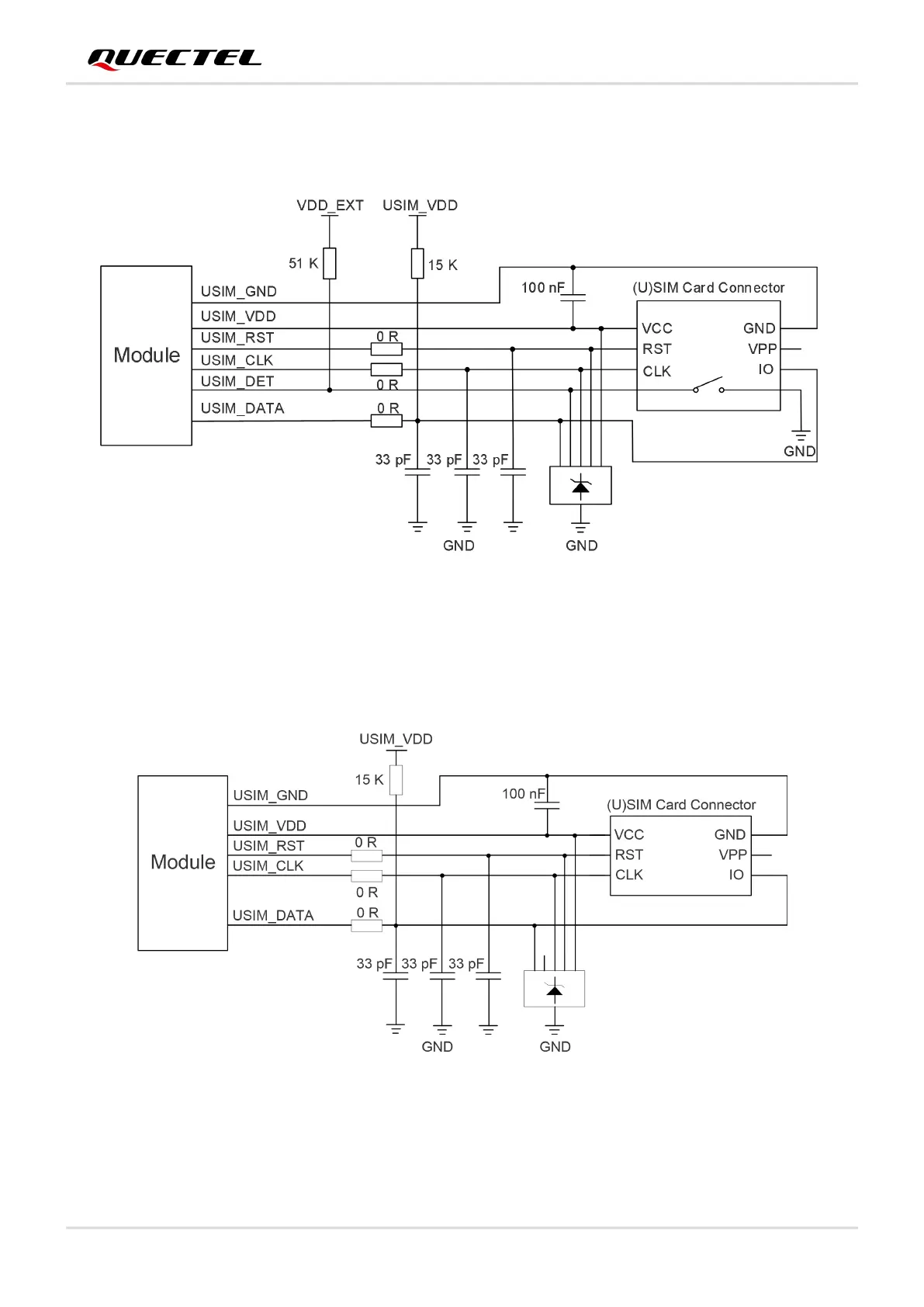

The following figure illustrates a reference design for (U)SIM card interface with an 8-pin (U)SIM card
connector.
Figure 14: Reference Circuit of (U)SIM Interface with an 8-Pin (U)SIM Card Connector
If (U)SIM card detection function is not needed, keep USIM_DET* disconnected. A reference circuit for
(U)SIM interface with a 6-pin (U)SIM card connector is illustrated in the following figure.
Figure 15: Reference Circuit of (U)SIM Interface with a 6-Pin (U)SIM Card Connector
