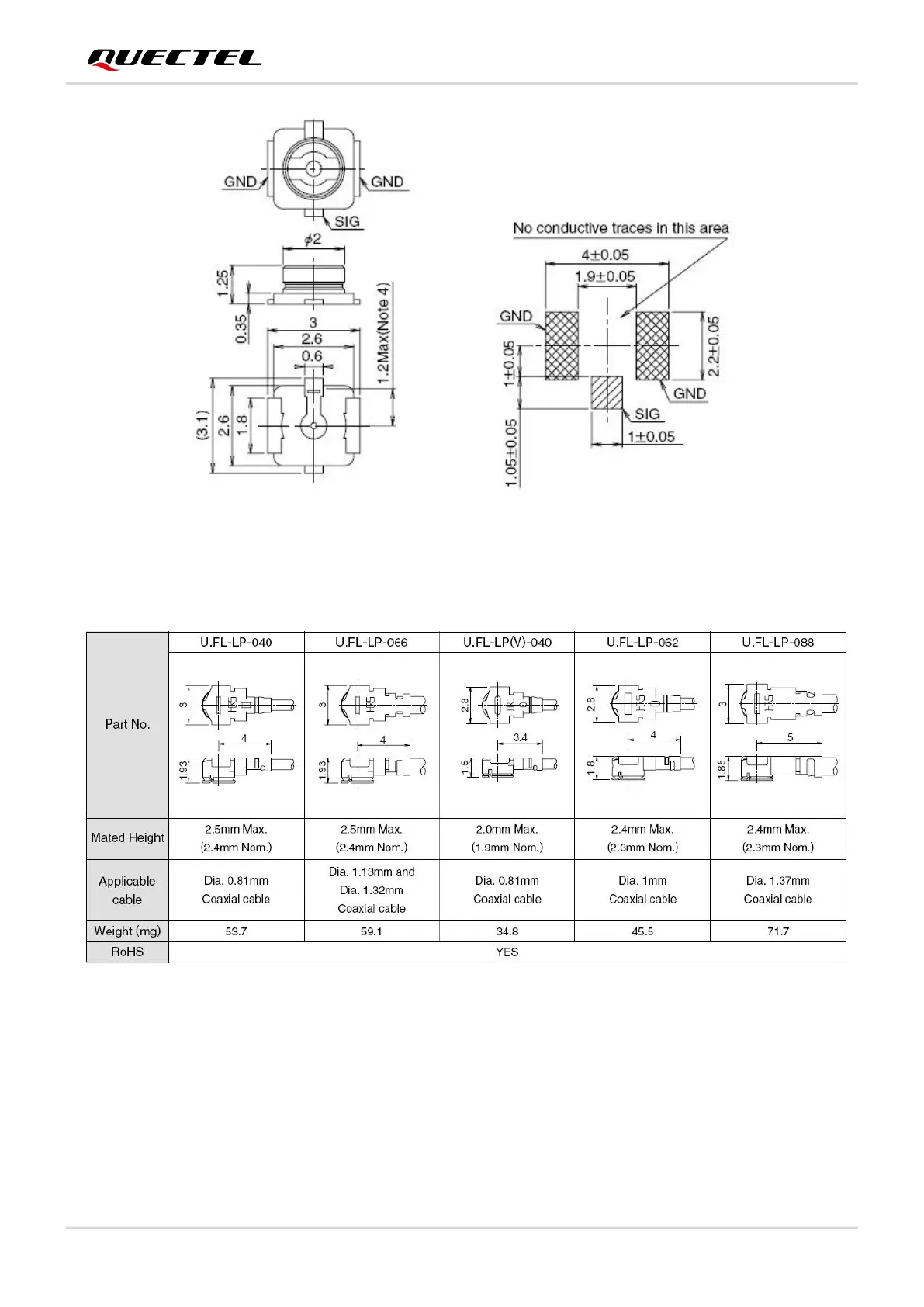

Figure 29: Dimensions of the U.FL-R-SMT Connector (Unit: mm)
U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
Figure 30: Mechanicals of U.FL-LP Connectors
The following figure describes the space factor of mated connector.
