LTE Standard Module Series
EG21-G Mini PCIe Hardware Design
EG21-G_Mini_PCIe_Hardware_Design 51 / 54
EG21-G Mini PCIe adopts a standard Mini PCI Express connector which compiles with the directives and
standards listed in the document [1]. The following figure takes the Molex 679105700 as an example.

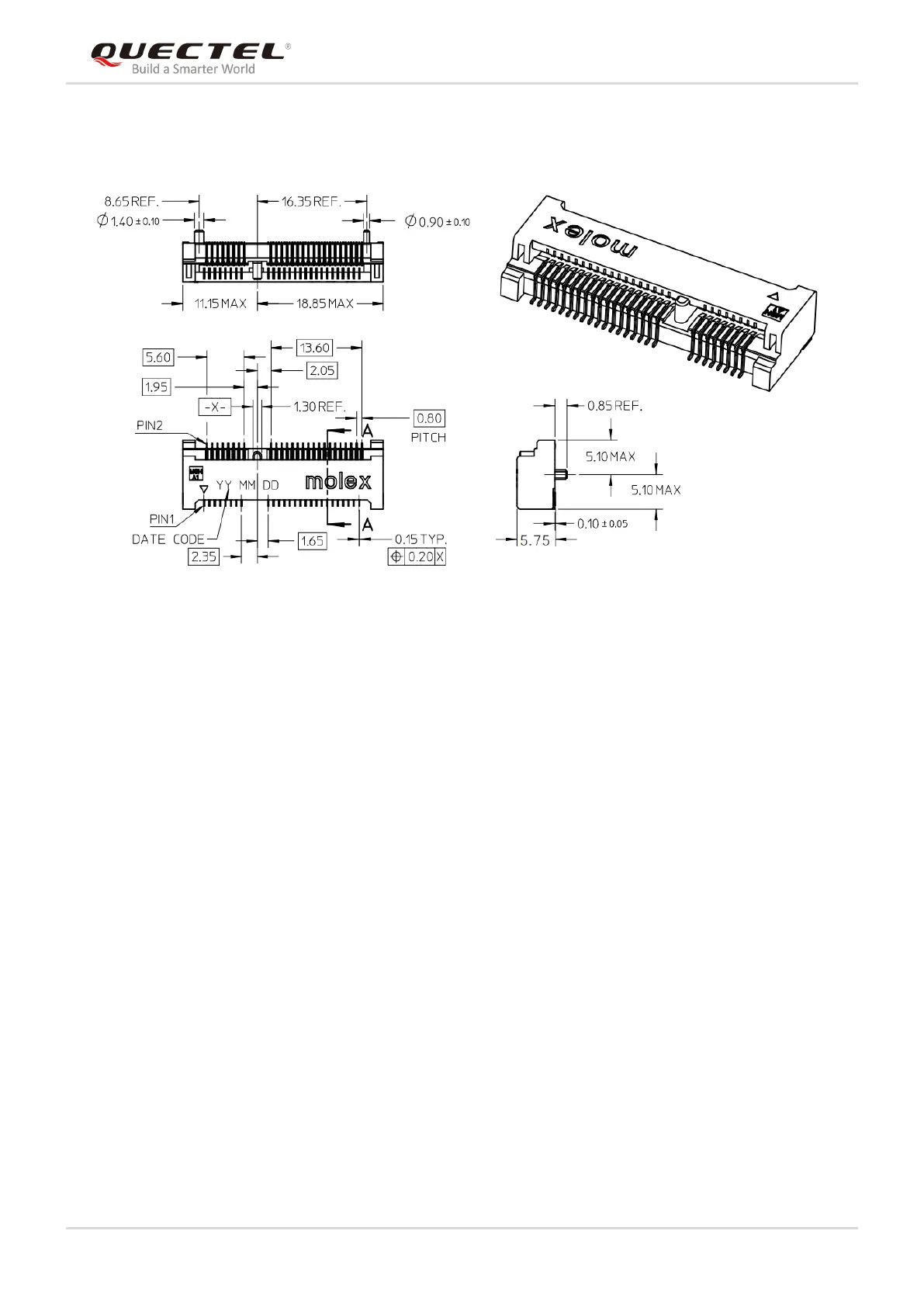

Figure 21: Dimensions of the Mini PCI Express Connector (Molex 679105700)
7.4. Packaging Specifications
EG21-G Mini PCIe modules are packaged in a tray. Each tray contains 10 of modules. The smallest
package of EG21-G Mini PCIe contains 100 modules.
