LTE Module Series
EG21-G Hardware Design
EG21-G_Hardware_Design 63 / 100

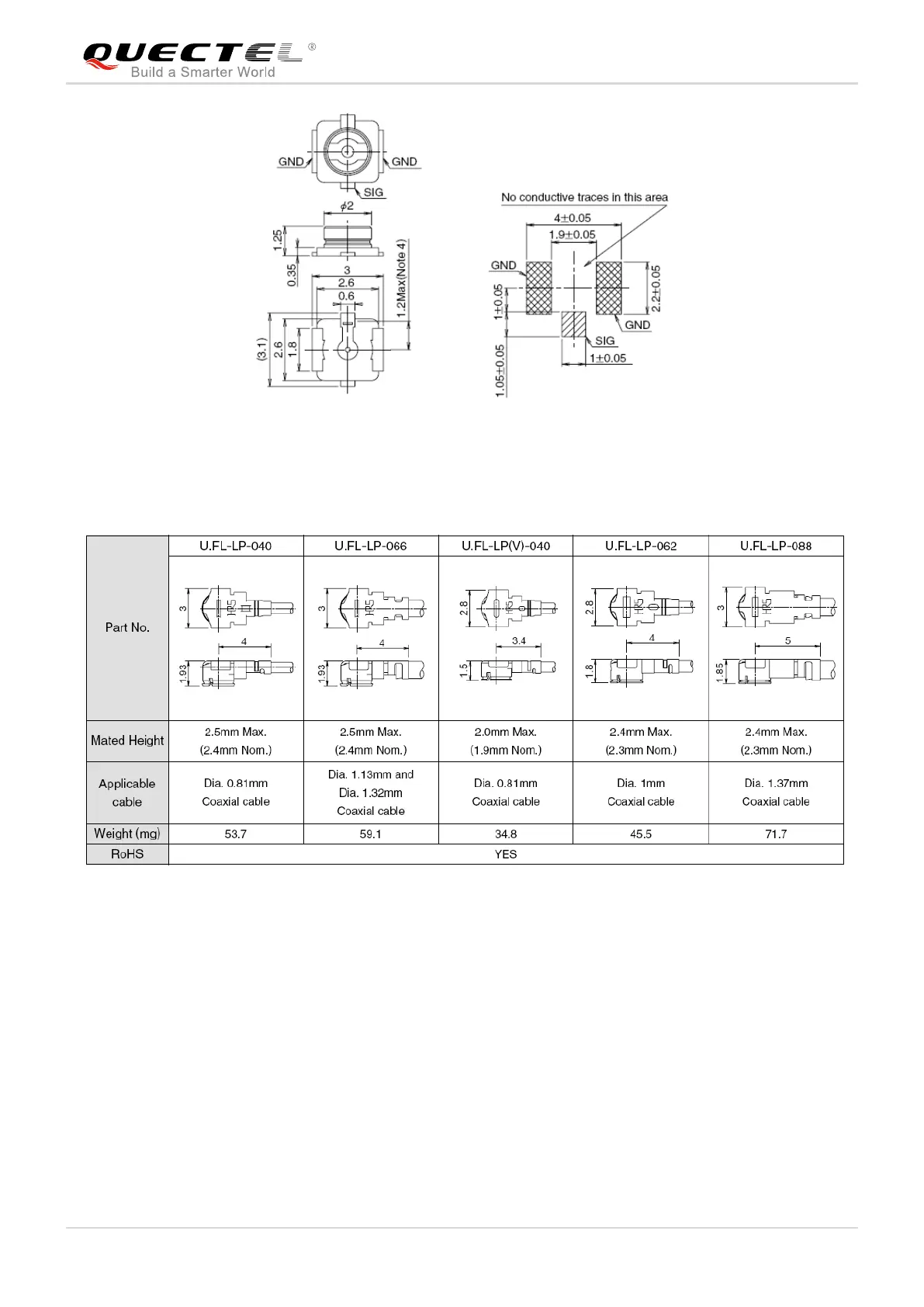

Figure 36: Dimensions of the U.FL-R-SMT Connector (Unit: mm)
U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
Figure 37: Mechanicals of U.FL-LP Connectors
