GSM/GPRS Module Series

M35 User Manual

M35_User_Manual Confidential / Released 70 / 85

6 Mechanical Dimensions

This chapter describes the mechanical dimensions of the module.

6.1. Mechanical Dimensions of Module

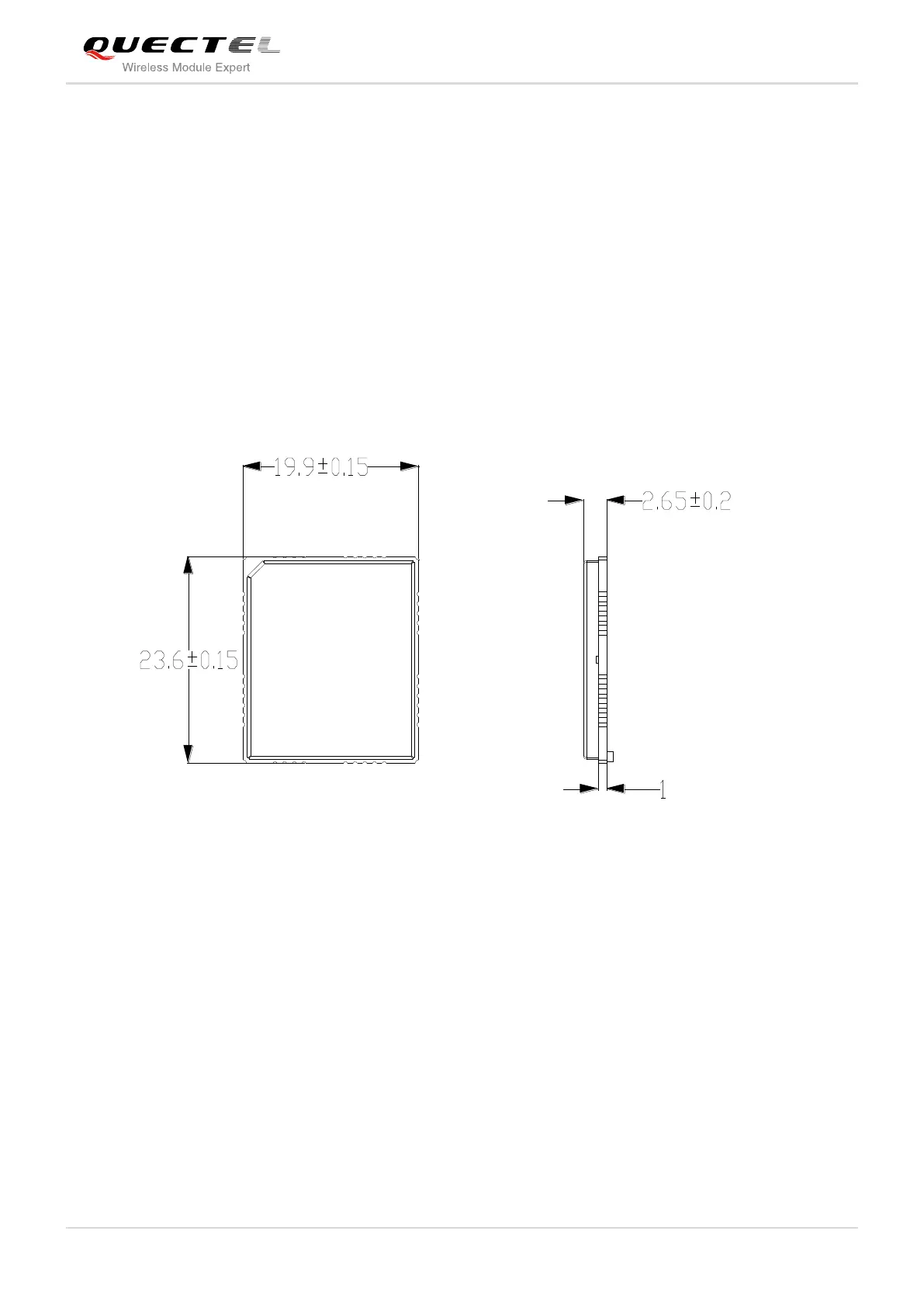

Figure 43: M35 Module Top and Side Dimensions (Unit: mm)
