Quectel MC60 Series User Manual

GSM/GPRS/GNSS Module Series
MC60 Series Hardware Design
MC60_Series_Hardware_Design Confidential / Released 56 / 114
 The At and aT commands cannot be used.
 Only the strings AT or at can be detected (neither At nor aT).
 The Unsolicited Result Codes like RDY, +CFUN: 1 and +CPIN: READY will not be indicated when
the module is turned on with autobauding enabled and not be synchronized.
 Any other Unsolicited Result Codes will be sent at the previous baud rate before the module detects
the new baud rate by receiving the first AT or at string. The DTE may receive unknown characters
after switching to a new baud rate.
 It is not recommended to switch to autobauding from a fixed baud rate.
 If autobauding is active it is not recommended to switch to multiplex mode.
To assure reliable communication and avoid any problems caused by undetermined baud rate between
DCE and DTE, it is strongly recommended to configure a fixed baud rate and save it instead of using
autobauding after start-up. For more details, please refer to the Section AT+IPR in document [1].
3.9.1.2. The Connection of UART
The connection between module and host using UART Port is very flexible. Three connection styles are
illustrated as below.

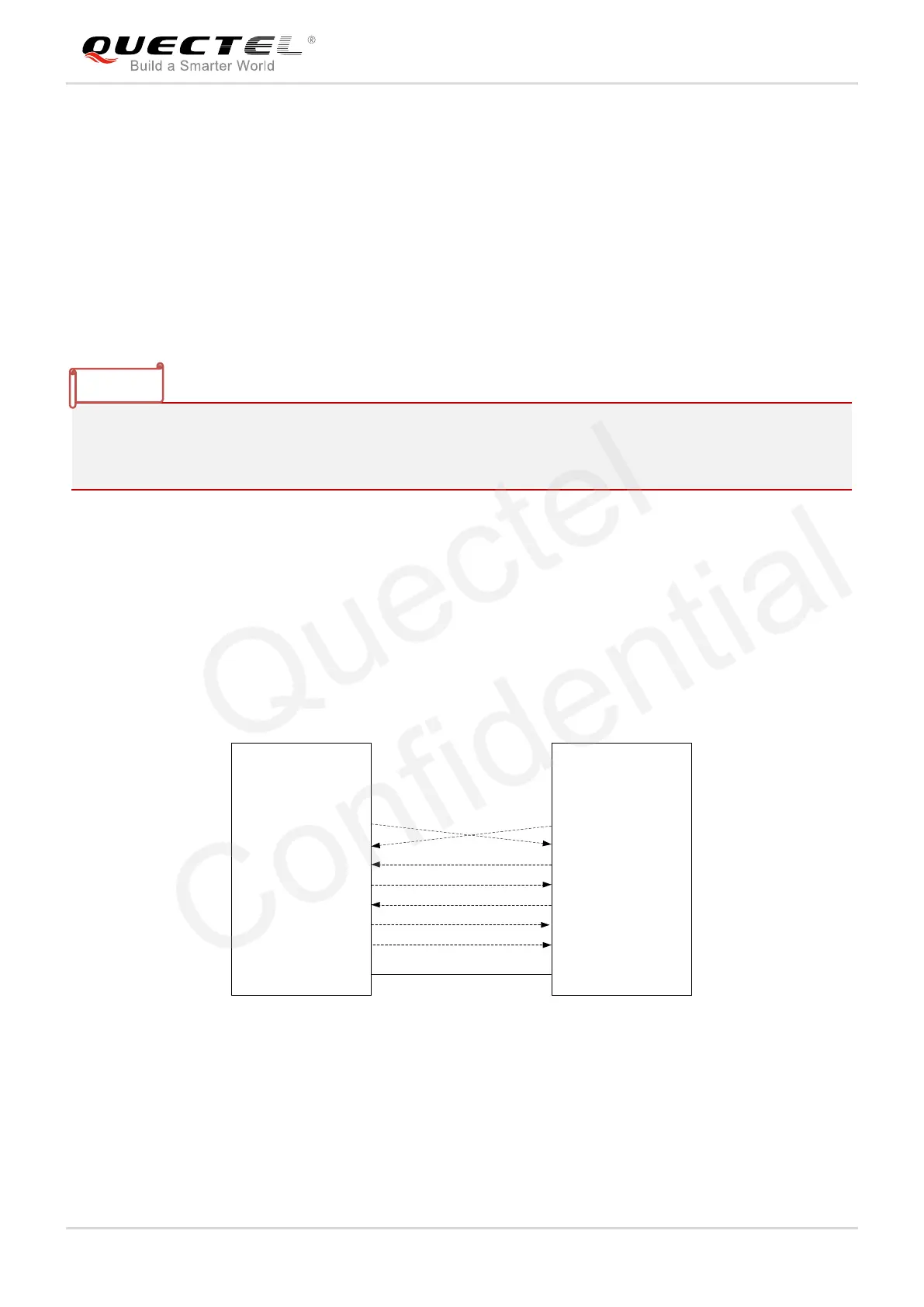

A reference design for Full-Function UART connection is shown as below when it is applied in
modulation-demodulation.
TXD
RXD
RTS
CTS
DTR
DCD
RI
TXD
RXD
RTS
CTS
DTR
DCD
RING
Module (DCE)
UART port
GND GND
Host (DTE)
Controller
Figure 23: Reference Design for Full-Function UART
NOTE
Quectel
Confidential
