Smart Module Series
SG368Z_Series_Hardware_Design 91 / 113

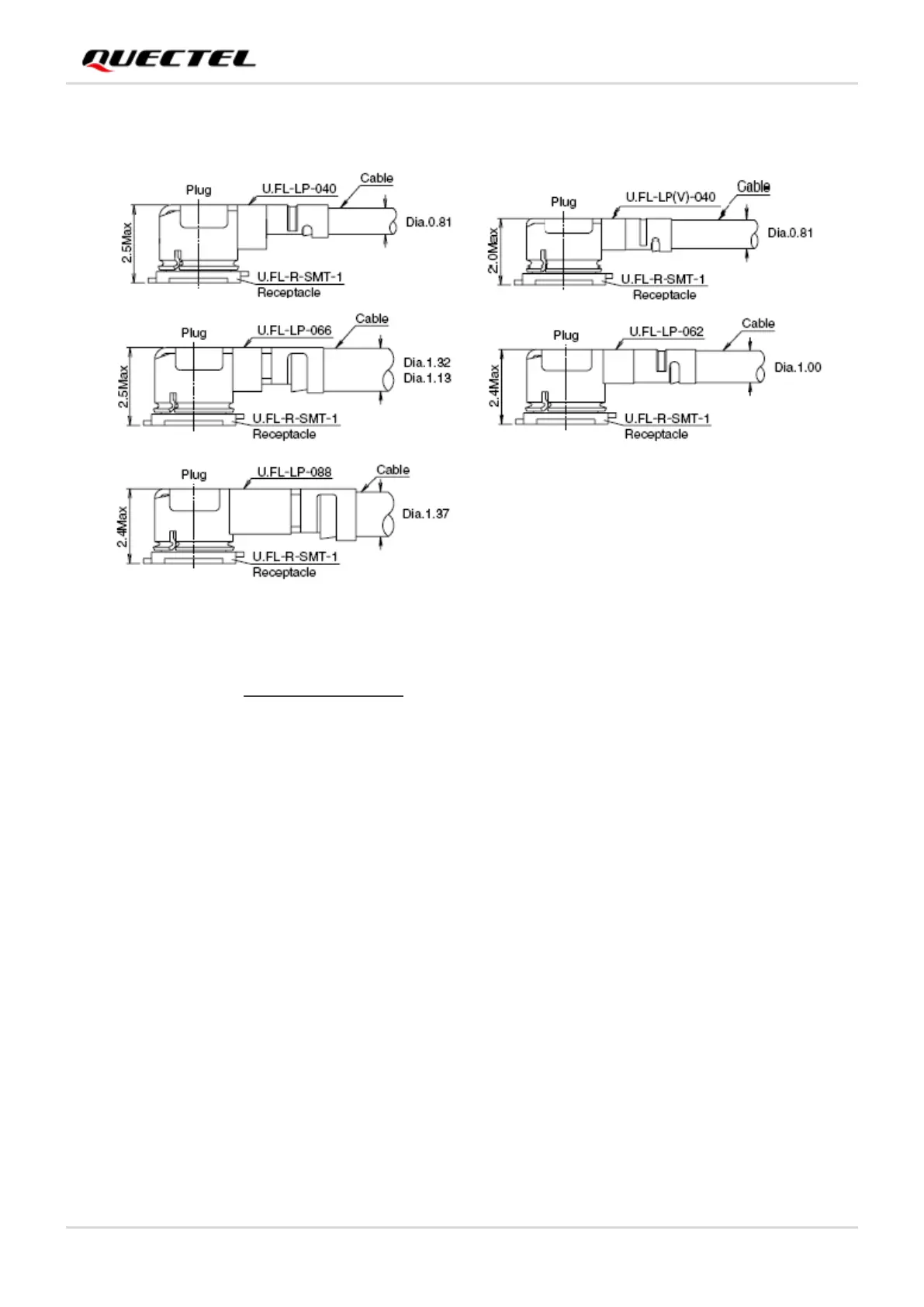

The following figure describes the space factor of the mated connector.
Figure 37: Space Factor of the Mated Connectors (Unit: mm)
For more details, visit http://www.hirose.com.
