Quectel SG368Z Series

Smart Module Series
SG368Z_Series_Hardware_Design 101 / 113
7.3. Top and Bottom Views

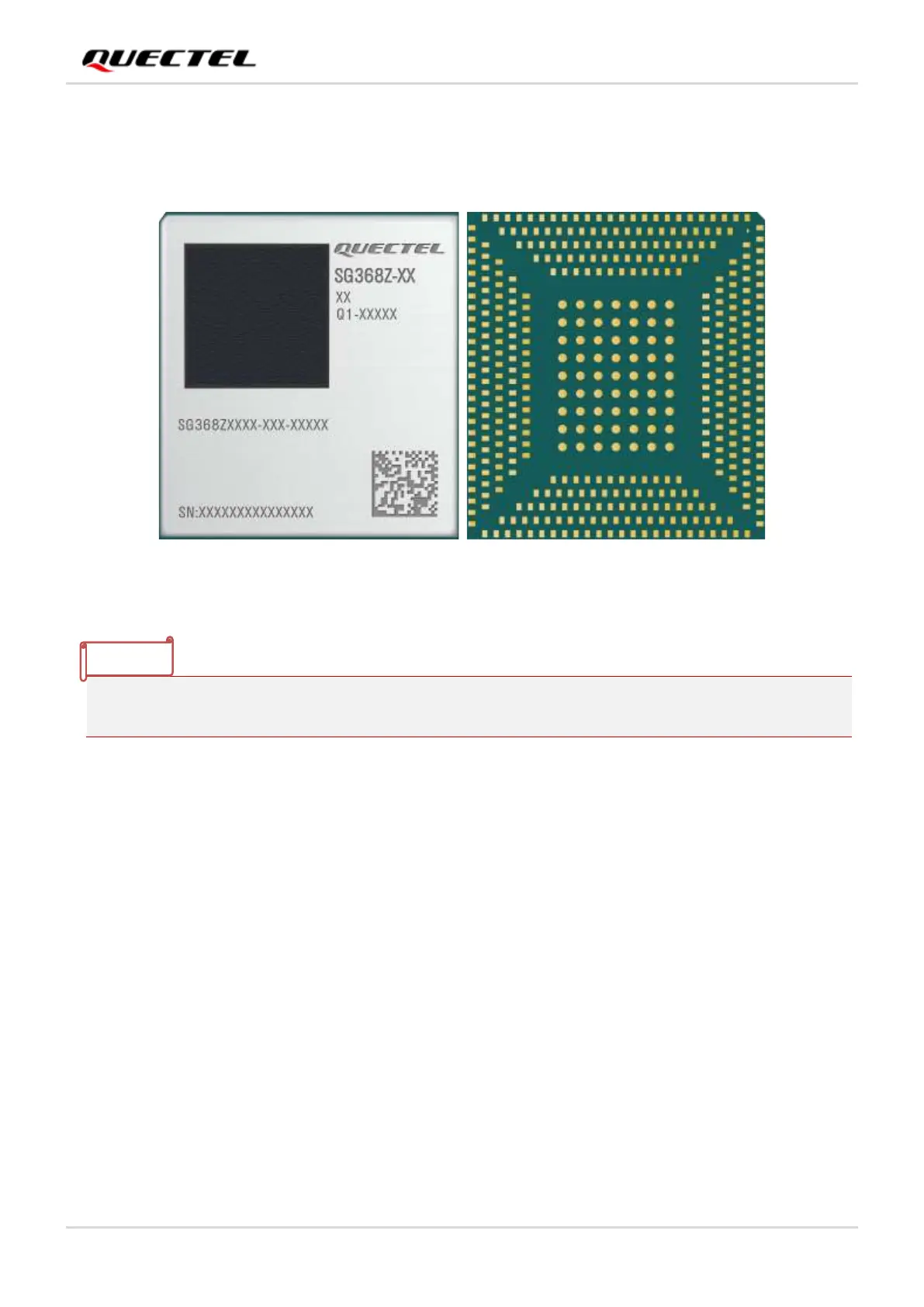

Figure 41: Top & Bottom Views of the Module
Images above are for illustration purpose only and may differ from the actual module. For authentic
appearance and label, please refer to the module received from Quectel.
NOTE
